Hardware Installation

Before you proceed with the installation, it is necessary that you have enough

information about the WAP-6100.

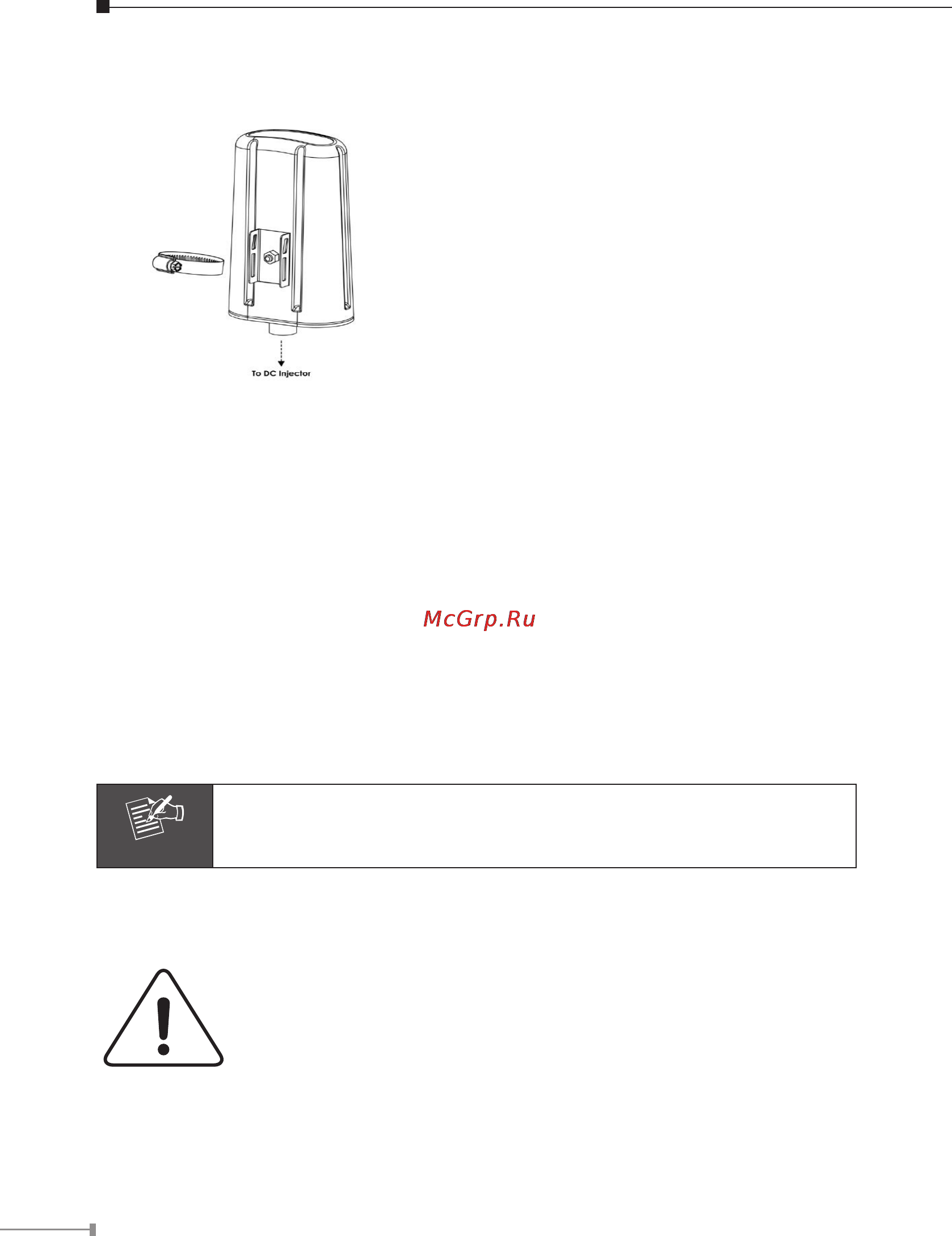

1. Locate an optimum location and use the provided metal ring to secure WAP-

6100 to a mast.

2. Using provided CAT5 waterproof cable; connect the waterproof connector port of

the WAP-6100 to the “P+DATA OUT” port of PoE Injector.

3. Using Category 3 or higher UTP or STP cable, connect the “DATA IN” port of PoE

Injector to a 10Mbps or 10/100Mbps Ethernet hub or switch, and connect the

management station to a hub or switch on the same LAN.

4. Connect the power cord to the PoE Injector, and plug it into an AC outlet to

power up the WAP-6100.

Note

ONLY use the power adapter supplied with the device. Otherwise, the product

may be damaged.

OUTDOOR INSTALLATION WARNING

IMPORTANT SAFETY PRECAUTIONS:

LIVES MAY BE AT RISK! Carefully observe these instructions and

any special instructions that are included with the equipment you

are installing.
