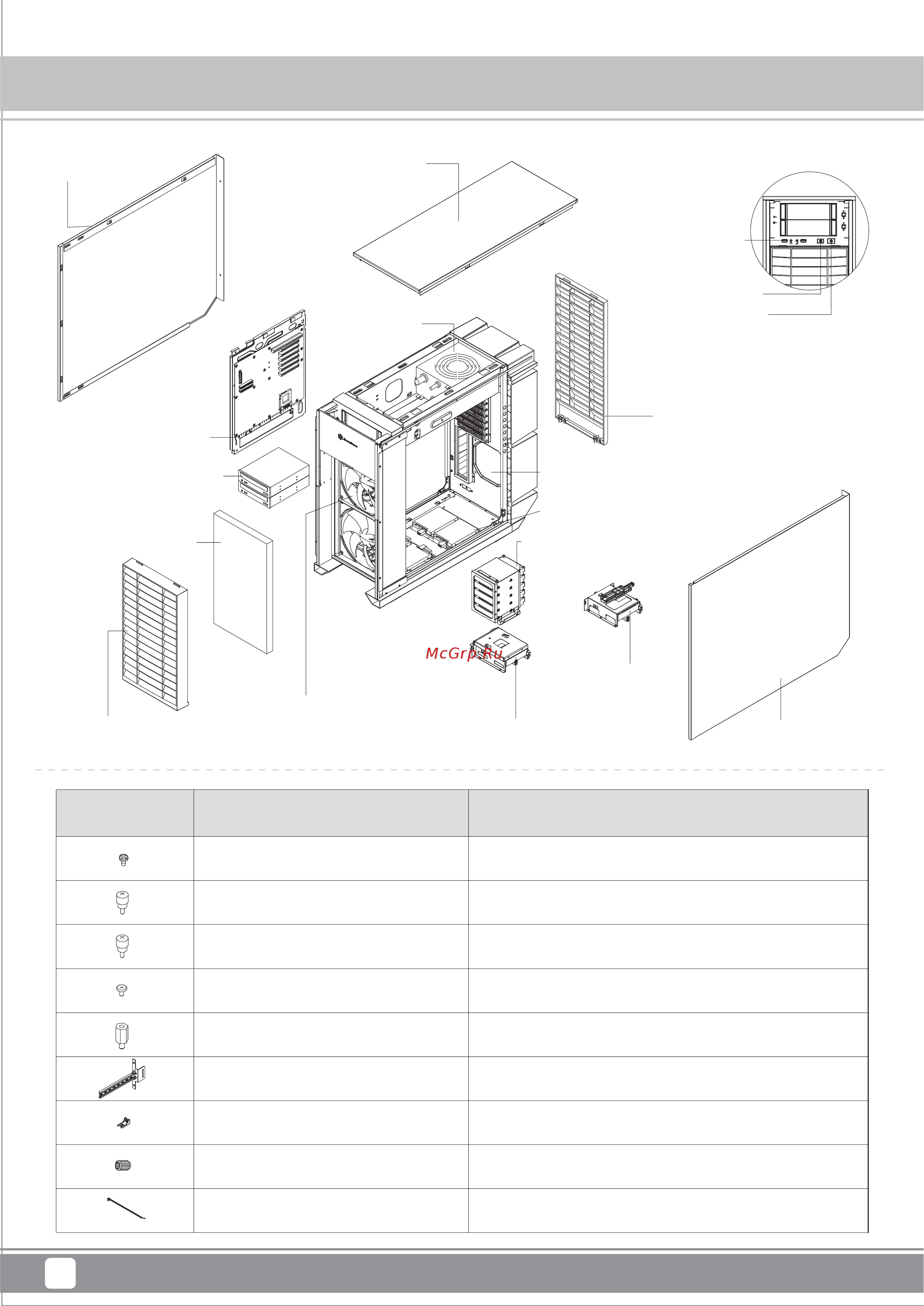

Disassemble Chart
3
Secure 2.5” HDD
Secure optical drives
Secure VGA holder and claw
Secure PSU, 12025 fan, motherboard and 3.5” HDD
Motherboard standoff
VGA supporter holder
VGA supporter claw
Standoff socket wrench
Cable management
SCREW - P - M3 4 - BK
SCREW - THUMB - M3 6 - BK
SCREW - THUMB - 6 - 32 6 - BK
SCREW - I - 6 - 32 5 - BK
STANDOFF - 6 - 32 6.5H - 6 - 32
VGA - SUPPORT - HOLDER
VGA - SUPPORT - CLAW
STANDOFF - SOCKET - WRENCH
BUNCH - WIRE - TIES
PICTURE ITEM PURPOSE
PSU (OPTION)
TOP COVER
REAR PANEL
RIGHT PANEL
FRONT PANEL
5.25” DRIVE BAY x 2
MOTHERBOARD TRAY
180 FAN x 2 OR
120 FAN x 3 (OPTION)
3.5” DRIVE BAY x 1
3.5” DRIVE BAY x 1
2.5” DRIVE BAY x 4
120 FAN x 1 (OPTION)
3.5” DRIVE BAY x 5
HEPA Filter
LEFT PANEL
USB3.0 x 2 + SPK + MIC
RESET BUTTON
POWER BUTTON
Mammoth Series MM01
*
*
*
*
*
