Hardware Installation

Before you proceed with the installation, it is necessary that you have enough

information about WAP-8000.

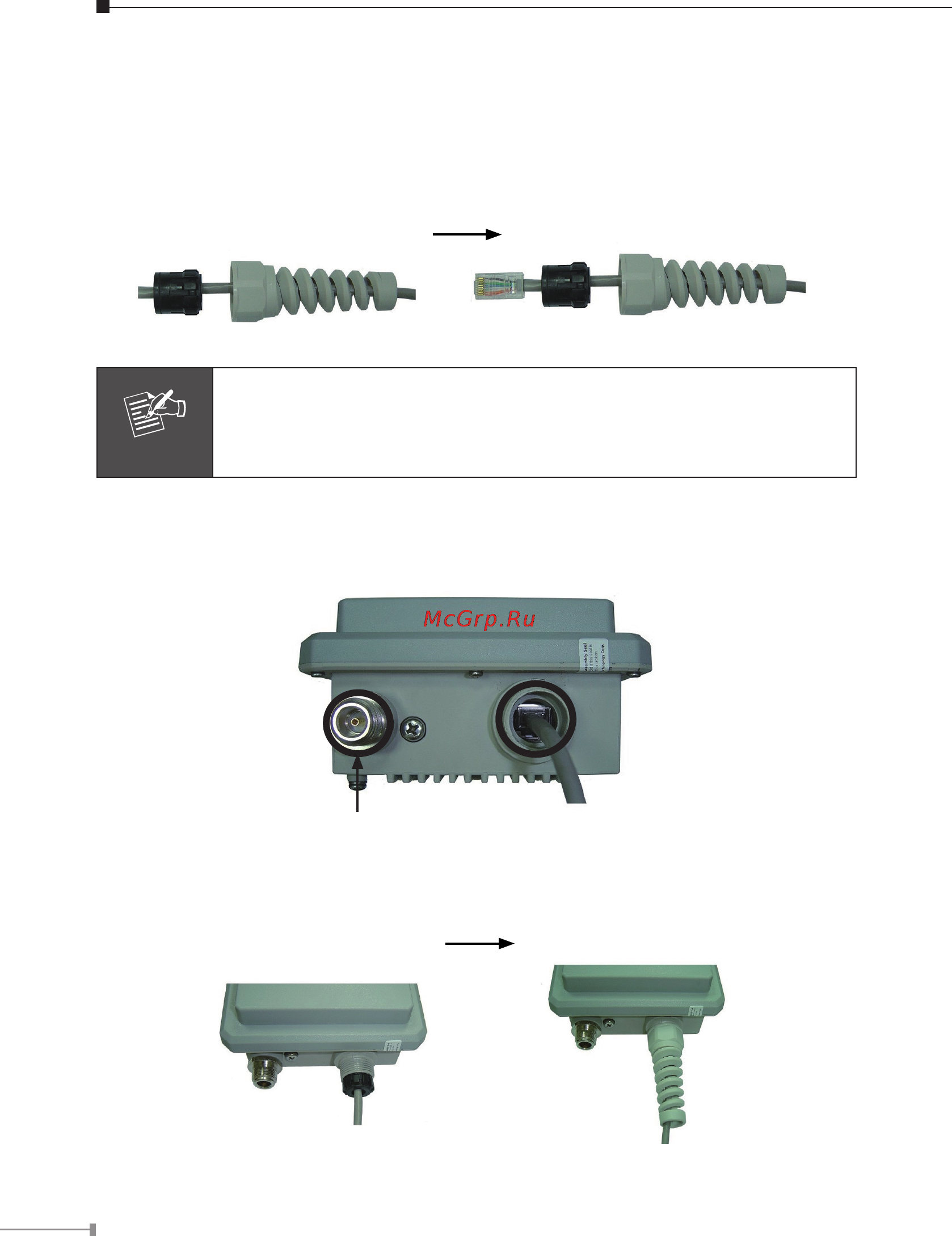

1. Plug in the waterproof connector on RJ-45 cable.

Step1

Step2

Note

Strongly suggest using SFTP cable, for better protection of the data

wire. 25-meter SFTP cable also available by order, the part no is

CB-STP-25. Please contact with local dealer for more information

2. Connect RJ-45 cable with the waterproof connector to the LAN port of WAP-8000

and another way connect to the “PoE” port of PoE Injector. Connect antenna to

N-type antenna connector.

Connect

antenna

3. Lock the waterproof connector into outside circle of the LAN port.

Step1

Step2
