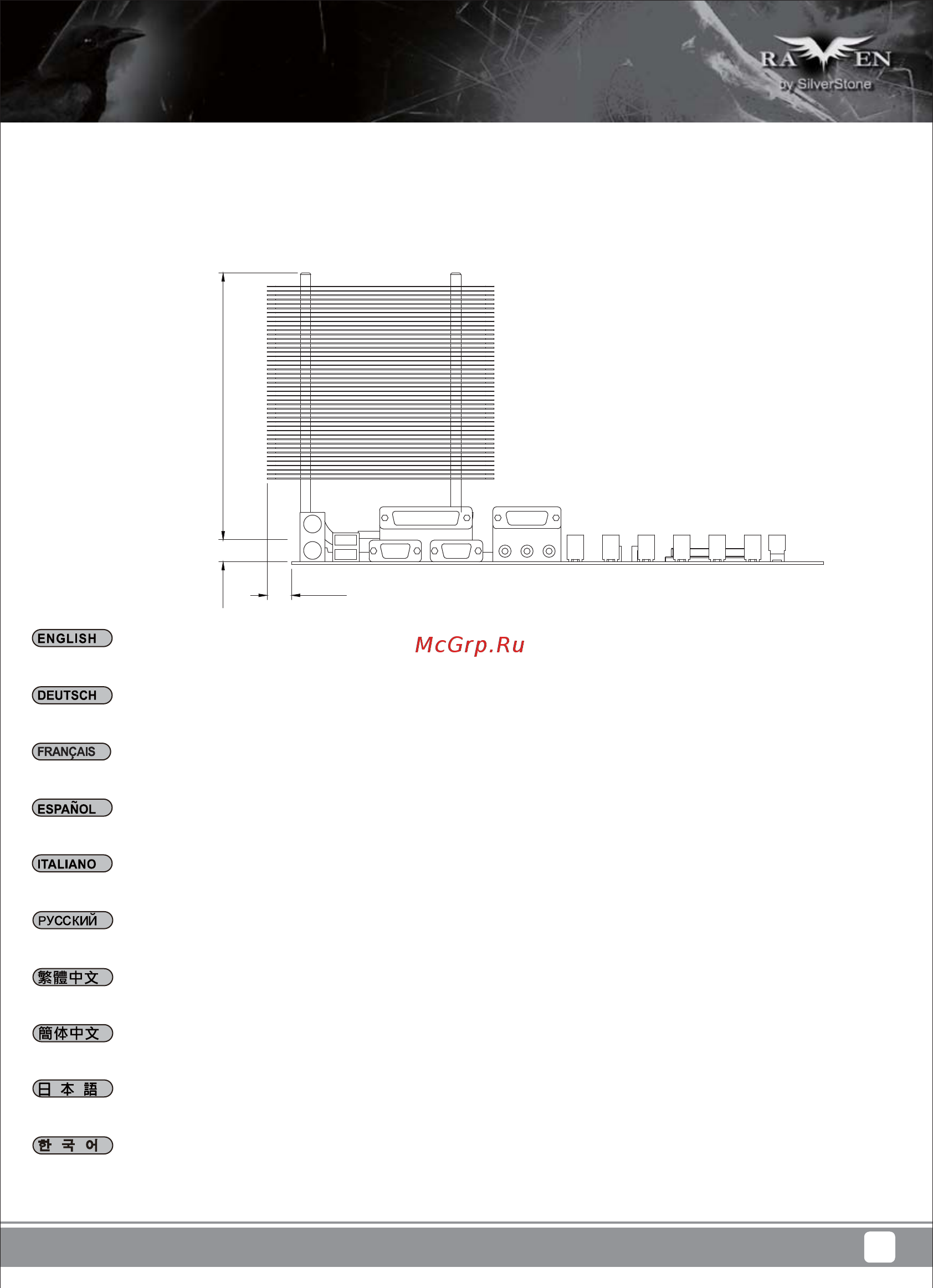

Height limitation for CPU cooler is 162mm with 13mm clearance over the motherboard’s top edge.
Höhenbeschränkung für CPU-Kühler 162 mm mit einem Freiraum von 13 mm oberhalb der Motherboard-Oberkante.
La limitación de altura para disipadores de CPU es de 162mm con un espacio libre de 13mm sobre el borde superior de la placa base.
La limitazione dell’altezza del dissipatore di calore CPU è di 162 millimetri con uno spazio libero di 13 mm sopra il bordo superiore della scheda madre.
Ограничение по высоте для системы охлаждения процессора составляет 162 мм с 13-мм зазором над верхним краем системной платы.
Cooler限高是162mm,Cooler外源允許超出主機板上邊界13mm
Cooler限高是162mm,Cooler外源允许超出主板上边界13mm
CPUクーラーの高さ限度は、マザーボード上側の余裕13mmを取って、162mmです。
CPU 쿨러의 높이 제한은 162mm로서 메인보드 상단 가장자리 위로의 허용 오차가 13mm입니다.
La limitation de hauteur des refroidisseurs de processeurs est 162mm avec un espace de 13mm au-dessus du bord supérieur de la carte mère.
Component size limitations
The RAVEN RV05 was designed to accommodate oversized components, but we still recommend referring
to the following dimension guidelines
(1) CPU Cooler limitation
162mm
9mm 13mm
