Installation
! Please keep this instruction booklet in a safe place for
future reference. If the appliance is sold, given away or
moved, please make sure the booklet is also passed on to
the new owners so that they may benet from the advice
contained within it.
! Please read this instruction manual carefully: it contains
important information concerning the safe operation,
installation and maintenance of the appliance.
Positioning
! Do not let children play with the packaging material; it
should be disposed of in accordance with local separated
waste collection standards (see Precautions and tips).
! The appliance must be installed by a qualied professional
in accordance with the instructions provided. Incorrect
installation may damage property or cause harm to people
or animals.
Built-in appliances
Use an appropriate cabinet to ensure that the appliance
operates properly:
• The panels adjacent to the oven must be made of heat-
resistant material.
• Cabinets with a veneer exterior must be assembled with
glues which can withstand temperatures of up to 100°C.

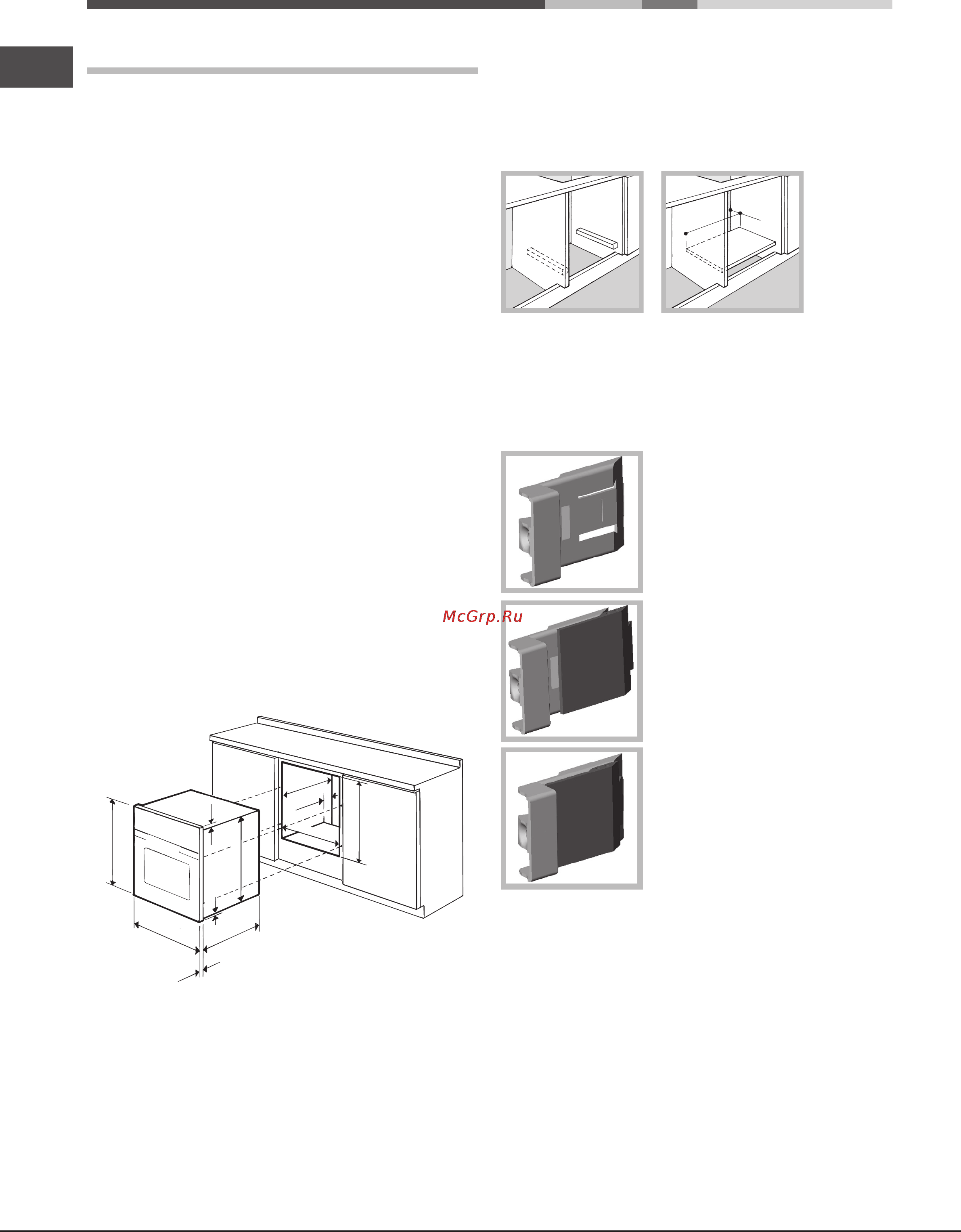

• To install the oven under the counter (see diagram) or
in a kitchen unit, the cabinet must have the following
dimensions:
595 mm.
595 mm.
25 mm.
545 mm.
5 mm.
567 mm.
23 mm.
575-585 mm.
45 mm.
558 mm.
547 mm. min.
! The appliance must not come into contact with electrical
parts once it has been installed.
The indications for consumption given on the data plate
have been calculated for this type of installation.
Ventilation
To ensure adequate ventilation, the back panel of the
cabinet must be removed. It is advisable to install the oven
so that it rests on two strips of wood, or on a completely
at surface with an opening of at least 45 x 560 mm (see
diagrams).
560 mm.
45 mm.
Centring and xing
Position the 4 tabs on the side of the oven so that they are
lined up with the 4 holes on the outer frame. Adjust the
tabs according to the thickness of the cabinet side panel,
as shown below:
20 mm thick: take off the removable
part of the tab (see diagram).;
18 mm thick: use the rst groove,
which has already been set in the
factory (see diagram).
16 mm thick: use the second
groove (see diagram).
Secure the appliance to the cabinet by opening the oven
door and putting 4 screws into the 4 holes on the outer
frame.
! All parts which ensure the safe operation of the appliance
must not be removable without the aid of a tool.
Centring and xing*
1. Position brackets “A” against oven support “B”.
2. Position tabs “C” against brackets “A”. If the thickness
of the cabinet side panel:
• is 16 mm thick: place the tab so that the number 16
written on it is facing you;
• is 18 mm thick: place the tab so that the part without
any text is facing you;
• is 20 mm thick: do not t the tab.
* Only available in certain models.
