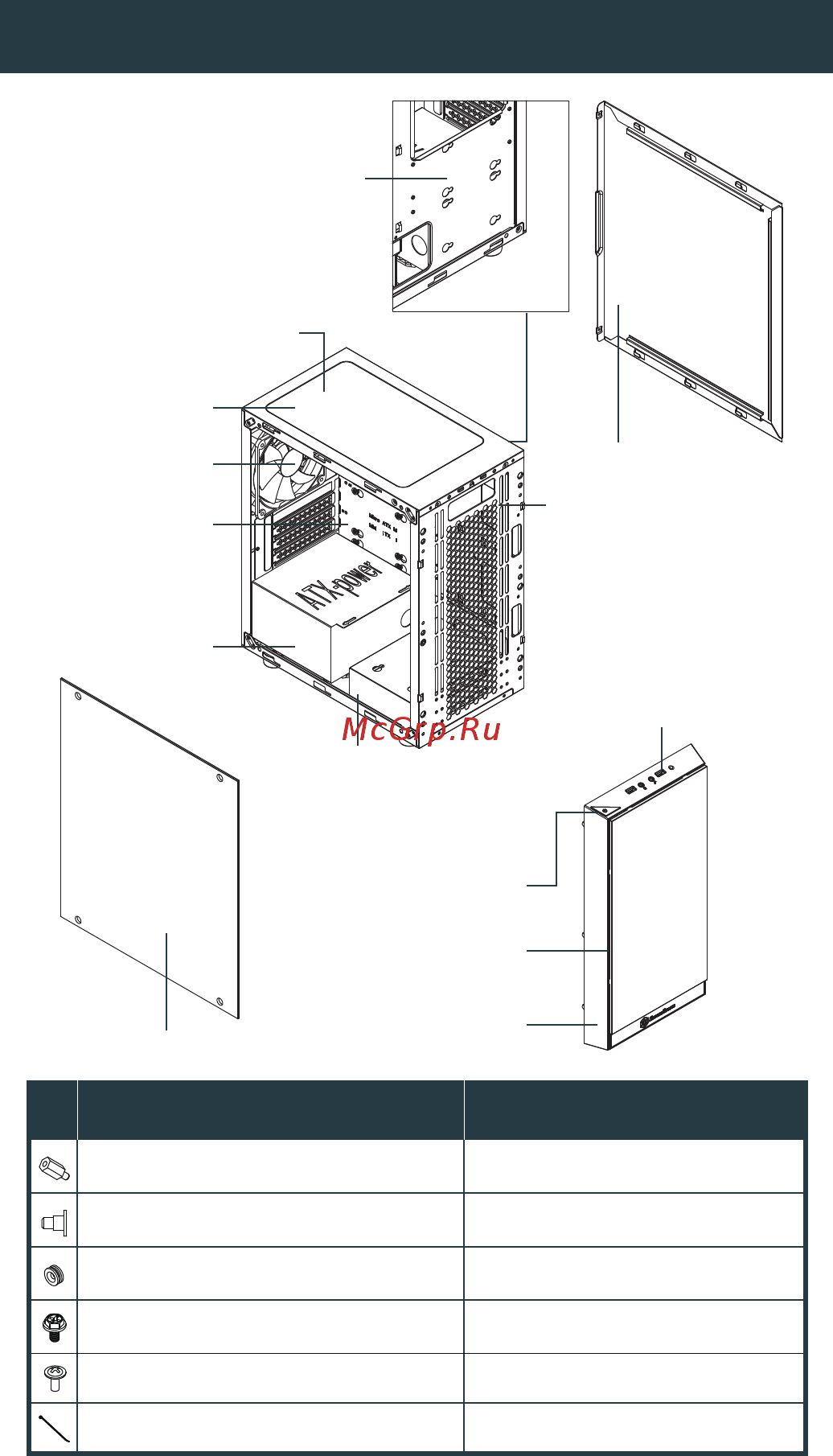

SilverStone SST-PS15B-PRO [2/11] Схема монтажа

Схема монтажа

Предмет Назначение

STANDOFF-M3 X 6.5H-632 X 4.75-BK

SCREW-PAN- 4 X 2.8H-M3 X 3-BK

SSD-RUBBER

Cushion SSD with screw

Secure PSU / expansion cards

Secure SSD / motherboard

Cable management

Secure SSD

Secure motherboard

SCREW-HW-6-32 X 6-BK

SCREW-PW-M3 X 6-BK

BUNCH WIRE TIES

RIGHT SIDE PANEL

USB 3.0 X2 + MIC

+ SPK + HDD LED

2.5" BAY X2

FILTER

PS2 PSU

(OPTION)

LEFT SIDE GLASS PANEL

12025 FAN X1

MICRO ATX

M/B (OPTION)

MINI ITX M/B

(OPTION)

12025 FAN X2 (OPTION)

14025 FAN X2 (OPTION)

FILTER

POWER S / W

2.5" BAY X1 AND

3.5" BAY X1

12025 FAN X2 (OPTION)

14025 FAN X2 (OPTION)

PANEL
