Systemair SWS323 [4/18] Controls

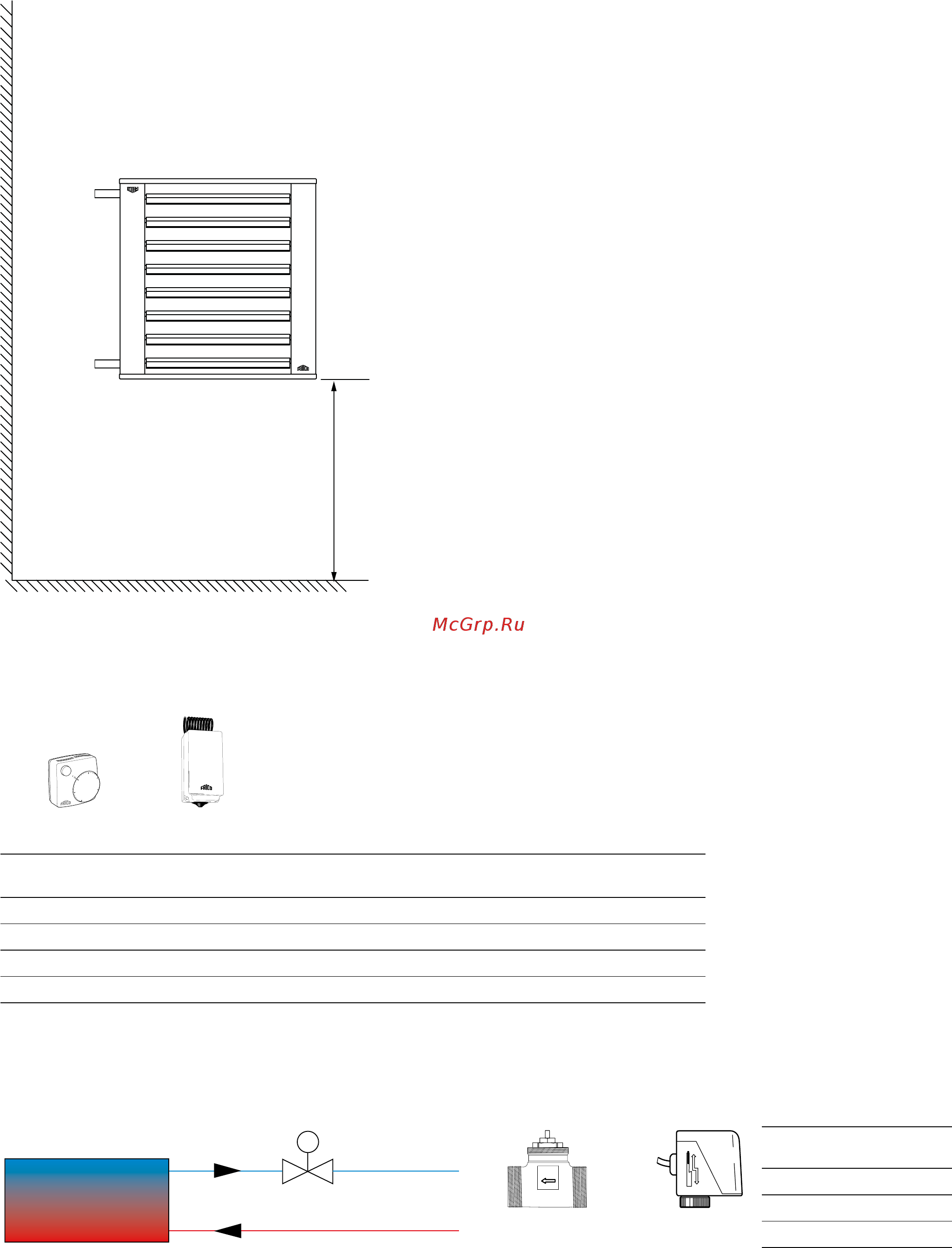

![Systemair SWS323 [4/18] Controls](/views2/1714702/page4/bg4.png)
SWS
4
KRT1900TKS16
Controls
Type Description HxWxD
[mm]
TKS16 Electronic thermostat with knob and 1-pole main switch 80x80x31
KRT1900 Capillary tube thermostat 165x57x60
S-DT16 Thermal contact motor protection (400V3~) 135x80x97
SWYD1 2-step change-over switch for air flow (Y/D) 120x85x135
TVVS20/25 SD20
Type RSK
SD20 672 70 37
TVVS20 673 92 96
TVVS25 673 92 97
+
Water regulation
SD20
TVVS20/25
20
25
30
15
10
5
Minimum distance
min 850 mm
