Systemair SWT12 [3/14] Air throw

Min 600mm Min 800mm

Type Fan position K* - STANDARD

SWT02 high 4,0

SWT12 high 4,5

SWT22 high 7, 5

Type Fan position K* - SWTC

SWT02 high 7, 0

SWT12 high 8,0

SWT22 high 12,0

SWT02 280 640

SWT12 420 760

SWT22 480 1070

*) The air throw is deﬁned as the distance in a straight angle from the fan heater to the point where the air speed has dropped to 0,2

m/s. Outlet temperature is +40 °C and room temperature is +18 °C.

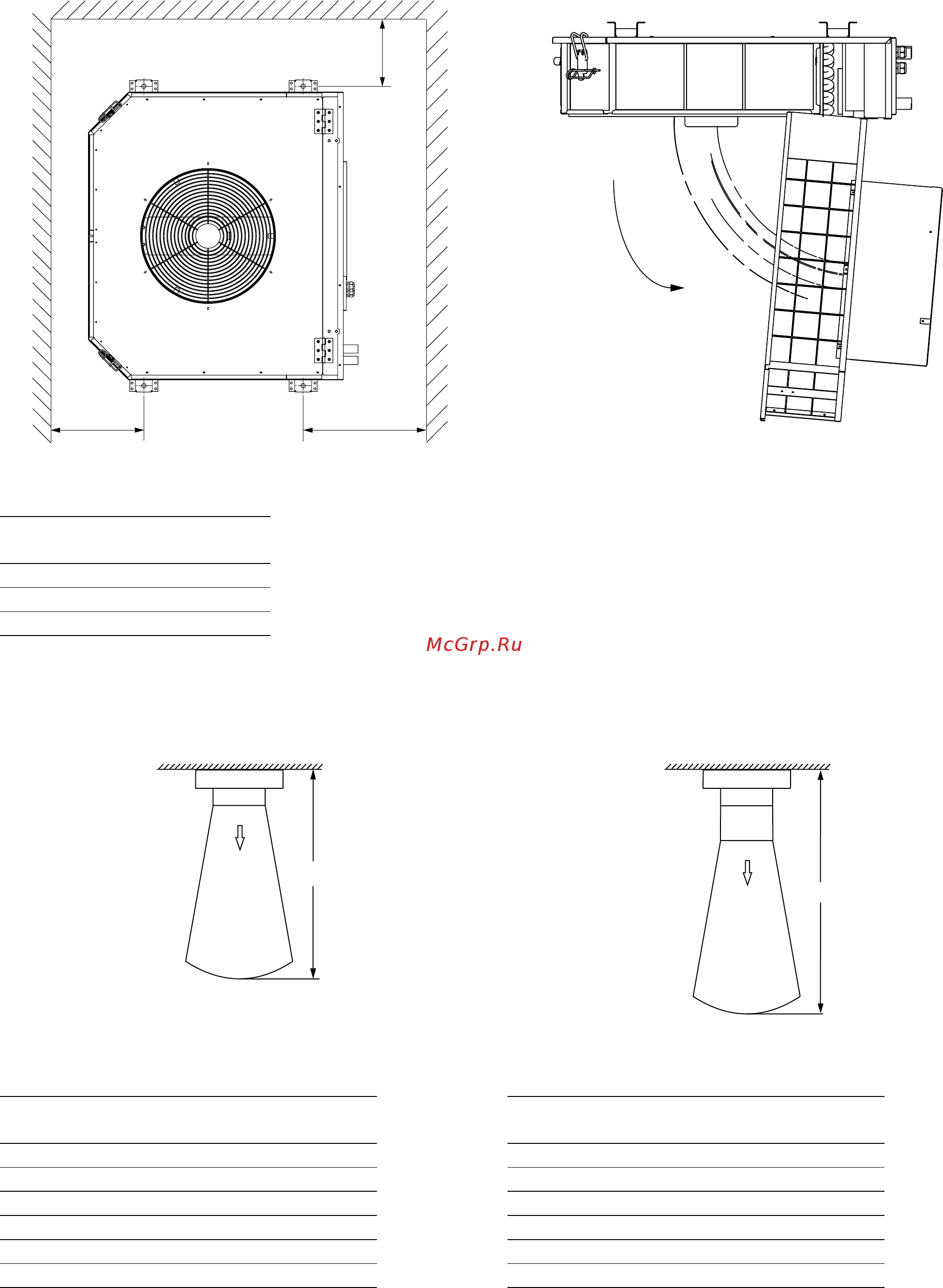

Fig. 3: Minimum mounting distance

Fig. 4: To open

Fig. 5: Without accessories Fig. 6: With accessories
