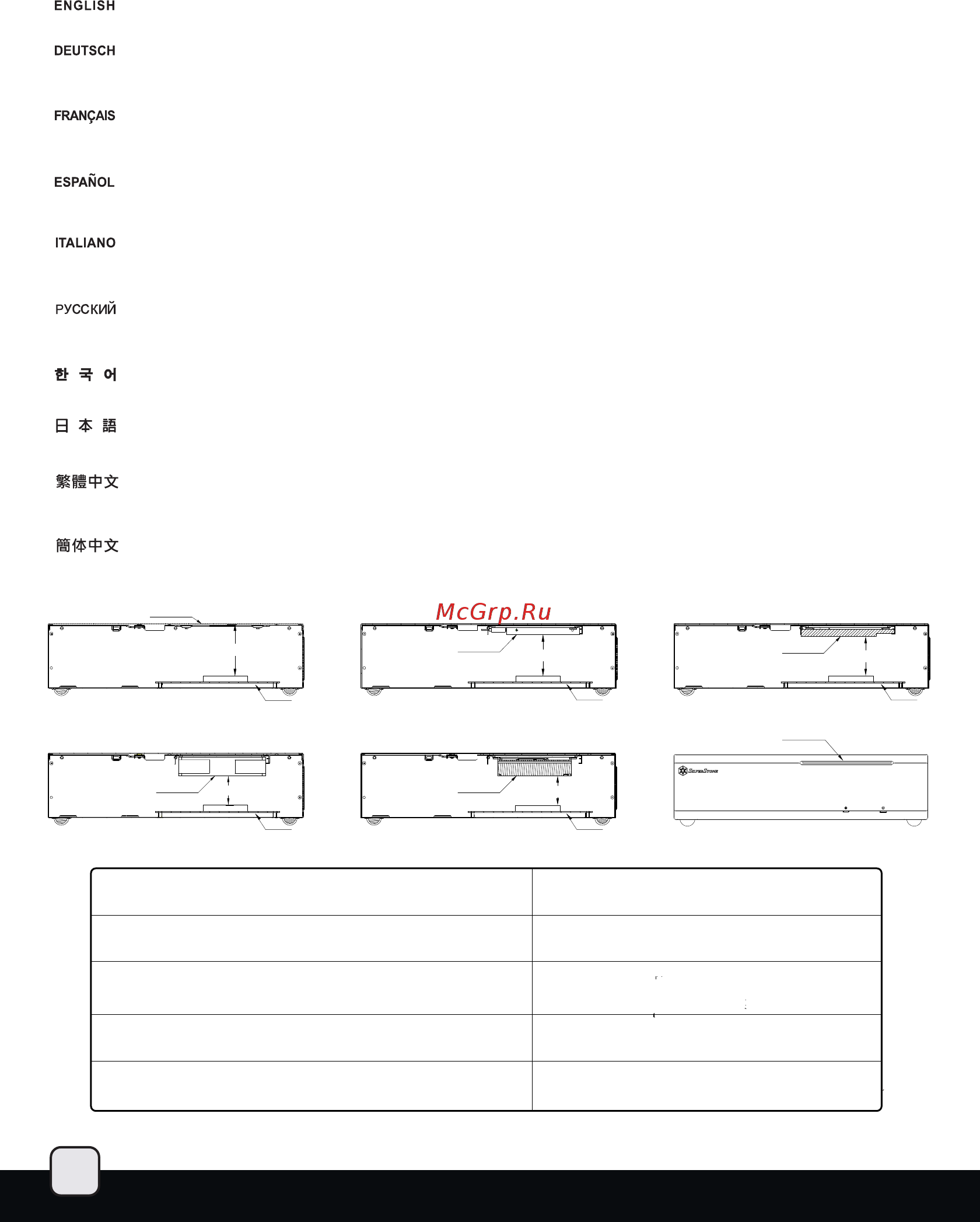

Component size limitations
CPU Cooler height limitation will vary depending on the component installed on the multipurpose bracket. Please refer to the table below.
Component installed
Bracket removed
2.5”HDD,9.5mm thick
Slim optical drive
3.5”HDD/12025 fan
Cooler limitation
70mm
55mm
50mm
37mm
(1) CPU cooler height limitation
The ML06 was designed to be as small as possible while maximizing interior space usage, please refer to the following guidelines for component
selection and future upgrade considerations.
Die maximale Höhe des CPU-Kühlers hängt davon ab, welche Komponenten in der Mehrzweckhalterung installiert wurden. Bitte orientieren Sie
sich an der folgenden Tabelle.
La limite de la hauteur du refroidisseur de CPU varie en fonction du composant installé sur le crochet multifonction. Veuillez vous reporter
au tableau ci-dessous.
La limitación de altura del disipador para la CPU variará dependiendo de los componentes instalados en el bracket multipropósito.
Por favor consulte la tabla siguiente.
La limitazione dell’altezza del dispersore di calore CPU varierà in base ai componenti installati sulla staffa multiuso. Fare riferimento alla
tavola che segue.
Ограничение по высоте для вентилятора охлаждения процессора зависит от установленных компонентов на многоцелевом
кронштейне. См. таблицу ниже.
ML06 CPU Cooler限高會根據多功能磁架的裝置不同,而有所改變。請參考下表來選購CPU Cooler。
ML06 CPU Cooler限高会根据多功能磁架的装置不同,而有所改变。请参考下表来选购CPU Cooler。
CPUクーラー高さ限界は多目的ブラケットに装着されたコンポーネントに依存します。下表をご参照ください。
CPU 쿨러 높이 한계는 다목적 브래킷에 설치된 구성부품에 따라 다릅니다. 아래의 표를 참조하십시오.
Cooler
Cooler Cooler
Cooler Cooler
Slim optical drive
37 37
55
2.5” HDD
3.5” HDD
12025FAN
TOP-COVER
Motherboard
Motherboard Motherboard
Motherboard Motherboard
ML06 only supports slim “slot-loading” optical drives
50
13
