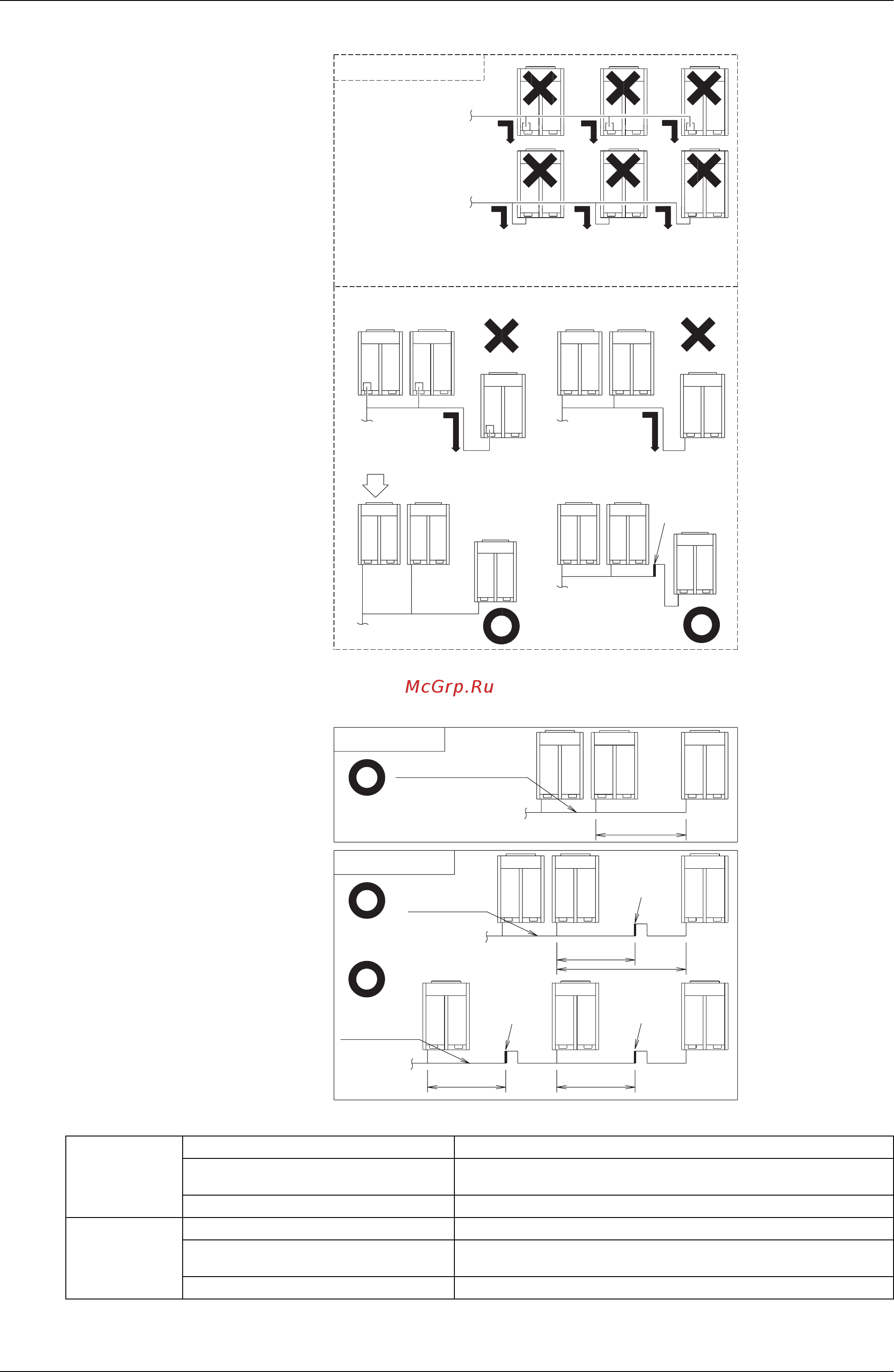

Si39-502A Piping Installation Point
Appendix 273
1. If the piping length between the outdoor unit-connecting pipe kits or between the outdoor
units exceeds 2 m, create a rise of 200 mm or more in the gas line within a length of 2 m
from the kit.
Note:
Refer to page 276 Note 2 in case of up to 90m.
Prohibited pattern
to indoor unit
to indoor unit
Oil remains in the stopping outdoor unit.
Change to pattern 1 or pattern 2
Unit A Unit B
Unit C
Unit C
Unit A Unit B
to indoor unit
Change as shown in the figure below.
to indoor unit
to indoor unit
to indoor unit
Oil remains in the outdoor unit C when the system stops.
Rising height:
200 mm or more
to indoor
unit
If 2 m or less
If 2 m or more
Piping between outdoor units
Piping between
outdoor units
Piping between
outdoor units
to indoor unit
2m or less
2m or less
2m
or more
Rising height:
200 mm or more
Rising height:
200 mm or more
Rising height:
200 mm or more
2m or less2m or less
Max.allowable
Piping Length
Outdoor Unit - Multi Connection Piping Kit Actual piping length 10m or less, equivalent length 13m or less
Multi Connection Piping Kit - Indoor Unit
Actual piping length 150m or less, equivalent length 175m or less,
the total extension 510m or less
REFNET Joint - Indoor Unit Actual piping length 40(90)m or less
Note
Allowable Level
Difference
Outdoor Unit - Outdoor Unit 5m or less
Outdoor Unit - Indoor Unit
50m or less
(when an outdoor unit is lower than indoor units : 40m or less)
Indoor Unit - Indoor Unit 15m or less
