Commissioning

8.2 Preconditions

♦ Ensure that the fan and all its components are

undamaged.

♦ Ensure that there is enough space to install the fan.

♦ Protect against dust and moisture when installing.

♦ Ensure that the information on the name plates (fan

and motor) matches up with the operating conditions.

♦ Fit the fans in such a way that there is sufficient

access for troubleshooting, maintenance and repair.

Important

Damage to the bearings or other parts of the fan can occur.

♦ Do not place a duct bend directly before or after the fan!

♦ Ensure a smooth and constant air flow to the device. Ensure a free exhaust. See Fig. 1 Straight ducts,

page 7.

• Rectangular duct system: D = Hydraulic diameter • Round duct system: D = Nominal diameter

Ø D

min.

2,5x Ø D

min.

2,5x Ø D

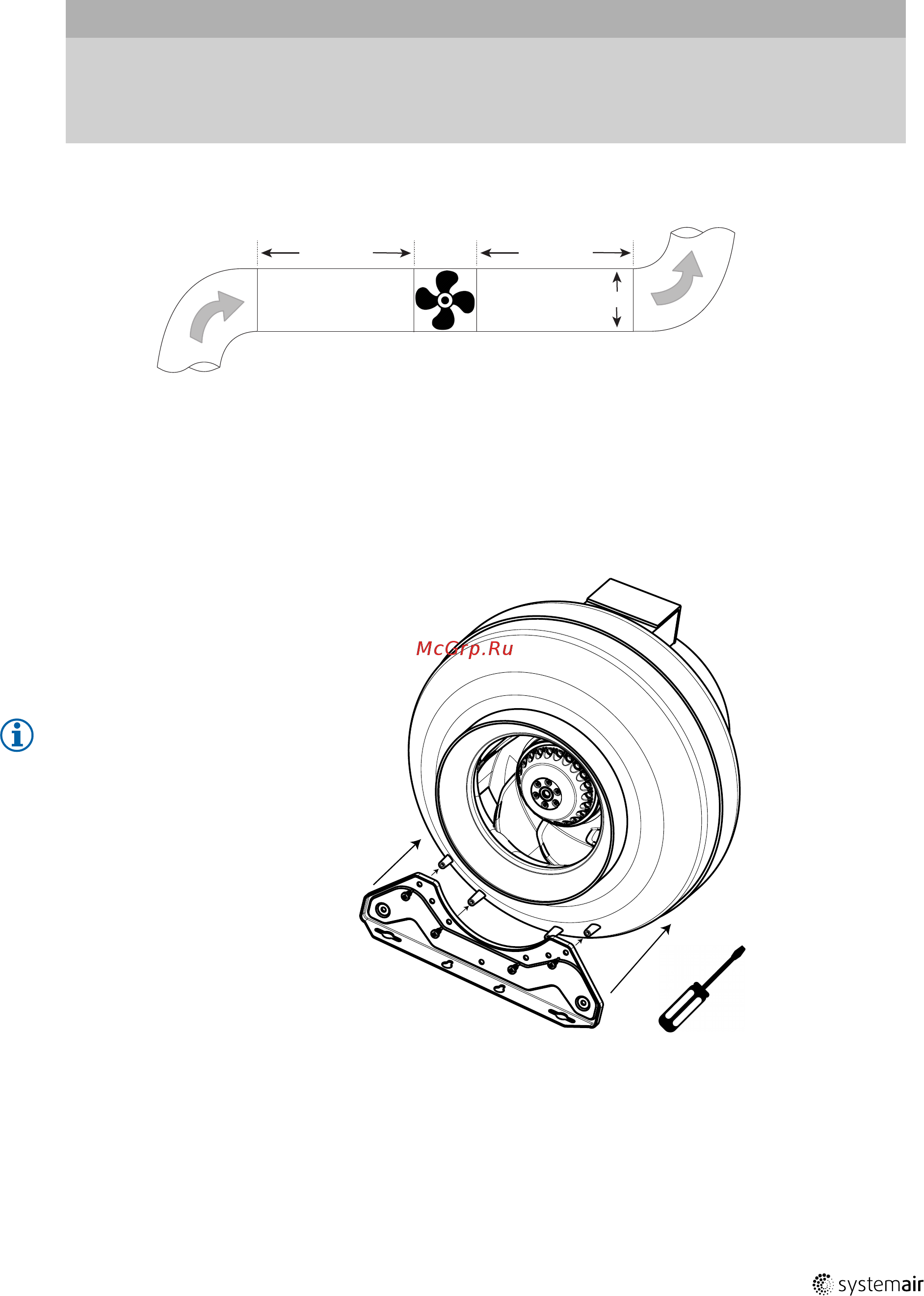

Fig. 1 Straight ducts

8.3 Installation variations

The installation is possible in any mounting position.

8.4 Installation with mounting bracket

Note:

The mounting

bracket is

included with the

delivery.

♦ Mount the mounting

bracket on the fan,

see adjacent image.

9 Commissioning

Warranty claims can only be made if commissioning work is carried out correctly and written evidence thereof is

provided.

It is recommended to fill out the commissioning report 16 Commissioning Report, page 12.
