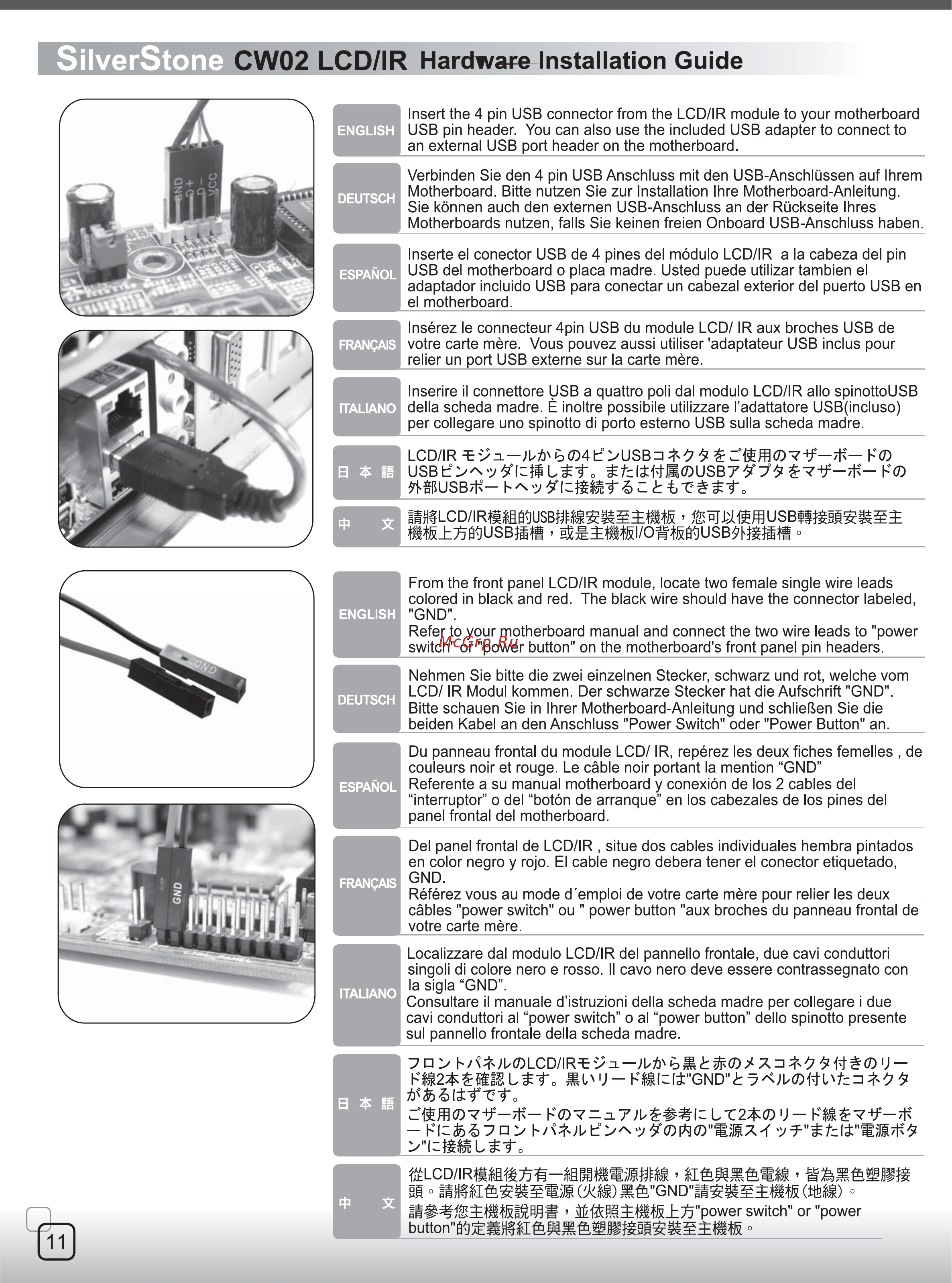

SilverStone CW02 LCD IR Hardware Installation Guide ENGLISH Insert the 4 pin USB connector from the LCD IR module to your motherboard USB pin header You can also use the included USB adapter to connect to an external USB port header on the motherboard DEUTSCH Verbinden Sie den 4 pin USB Anschluss mit den USB Anschlüssen auf Ihrem Motherboard Bitte nutzen Sie zur Installation Ihre Motherboard Anleitung Sie können auch den externen USB Anschluss an der Rückseite Ihres Motherboards nutzen falls Sie keinen freien Onboard USB Anschluss haben ESPAÑOL Inserte el conector USB de 4 pines del módulo LCD IR a la cabeza del pin USB del motherboard o placa madre Usted puede utilizar también el adaptador incluido USB para conectar un cabezal exterior del puerto USB en el motherboard FRANÇAIS Insérez le connecteur 4pin USB du module LCD IR aux broches USB de votre carte mère Vous pouvez aussi utiliser adaptateur USB inclus pour relier un port USB externe sur la carte mère ITALIANO Inseriré il connettore USB a quattro poli dal modulo LCD IR allô spinottoUSB della scheda madre È inoltre possibile utilizzare l adattatore USB incluso per collegare uno spinotto di porto esterno USB sulla scheda madre B LCD IR Í B USBf H USBzK í 04 t USB l SÆIi ÂOUSBTy ÿV F 4 KO z trasto K0 CD IRÍIfflmBW ÍM ÆWfêfflUSB g5B î m USBSS lifôWOWMUSB fëffifê o ENGLISH From the front panel LCD IR module locate two female single wire leads colored in black and red The black wire should have the connector labeled GND Refer to your motherboard manual and connect the two wire leads to power switch or power button on the motherboard s front panel pin headers DEUTSCH Nehmen Sie bitte die zwei einzelnen Stecker schwarz und rot welche vom LCD IR Modul kommen Der schwarze Stecker hat die Aufschrift GND Bitte schauen Sie in Ihrer Motherboard Anleitung und schließen Sie die beiden Kabel an den Anschluss Power Switch oder Power Button an ESPAÑOL Du panneau frontal du module LCD IR repérez les deux fiches femelles de couleurs noir et rouge Le câble noir portant la mention GND Referente a su manual motherboard y conexión de los 2 cables del interruptor o del botón de arranque en los cabezales de los pines del panel frontal del motherboard FRANÇAIS Del panel frontal de LCD IR situe dos cables individuales hembra pintados en color negro y rojo El cable negro deberá tener el conector etiquetado GND Référez vous au mode d emploi de votre carte mère pour relier les deux câbles power switch ou power button aux broches du panneau frontal de votre carte mère ITALIANO Localizzare dal modulo LCD IR del pannello frontale due cavi conduttori singoli di colore nero e rosso Il cavo ñero deve essere contrassegnato con la sigla GND Consultare il manuale d istruzioni della scheda madre per collegare i due cavi conduttori al power switch o al power button dello spinotto presente sul pannello frontale della scheda madre B ñ X LT2Ÿ0 U SÍ tm fe äS W fe GND B iÄ_t7j power switch or power button ift si fe fe lif o
