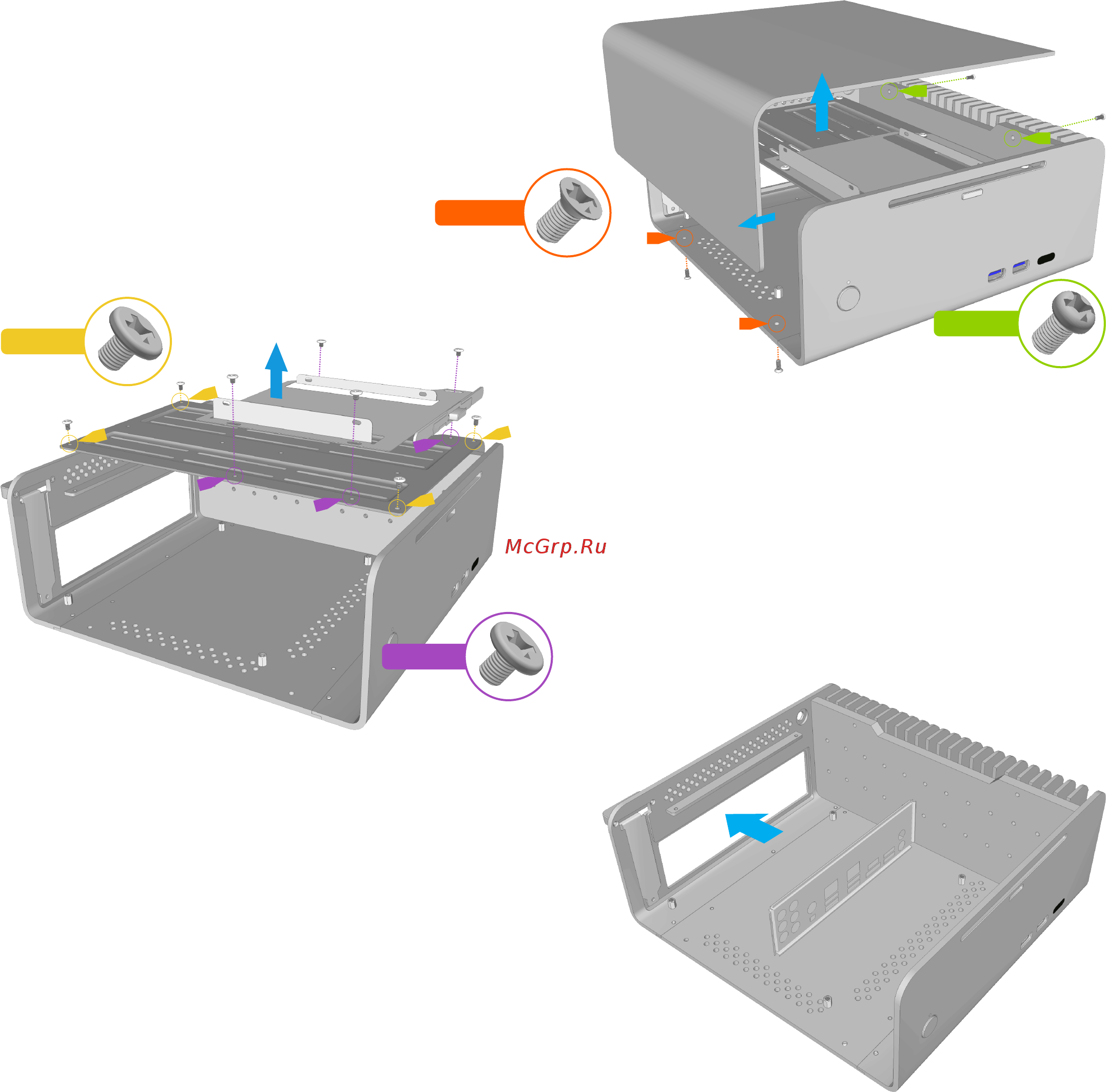

Removing the Top Panel

The top panel is held in place by a total of 4 screws, 2 from the bottom left

side, and 2 on the right side of the case which are accessible between the

fins of the heatsink.

Remove all 4 screws and lift the top panel away from the rest of the case.

Removing the Drive Tray

The drive tray is held in place by 4 screws which are all accessible from the

top as shown. Once all 4 screws are removed, lift the drive tray out of the

case.

If you have the Optical version of the FC8, you should also remove the

optical drive mounting bracket by removing the additional 4 screws as

shown.

Installing the I/O Shield

Locate the I/O shield supplied with your motherboard and firmly push it in

place. Ensure that it correctly seated otherwise the motherboard will be

difficult to install and not align correctly with the stand-offs.

CS-M3x8

PH-M3x6

TC-M3x4

TC-M3x3
