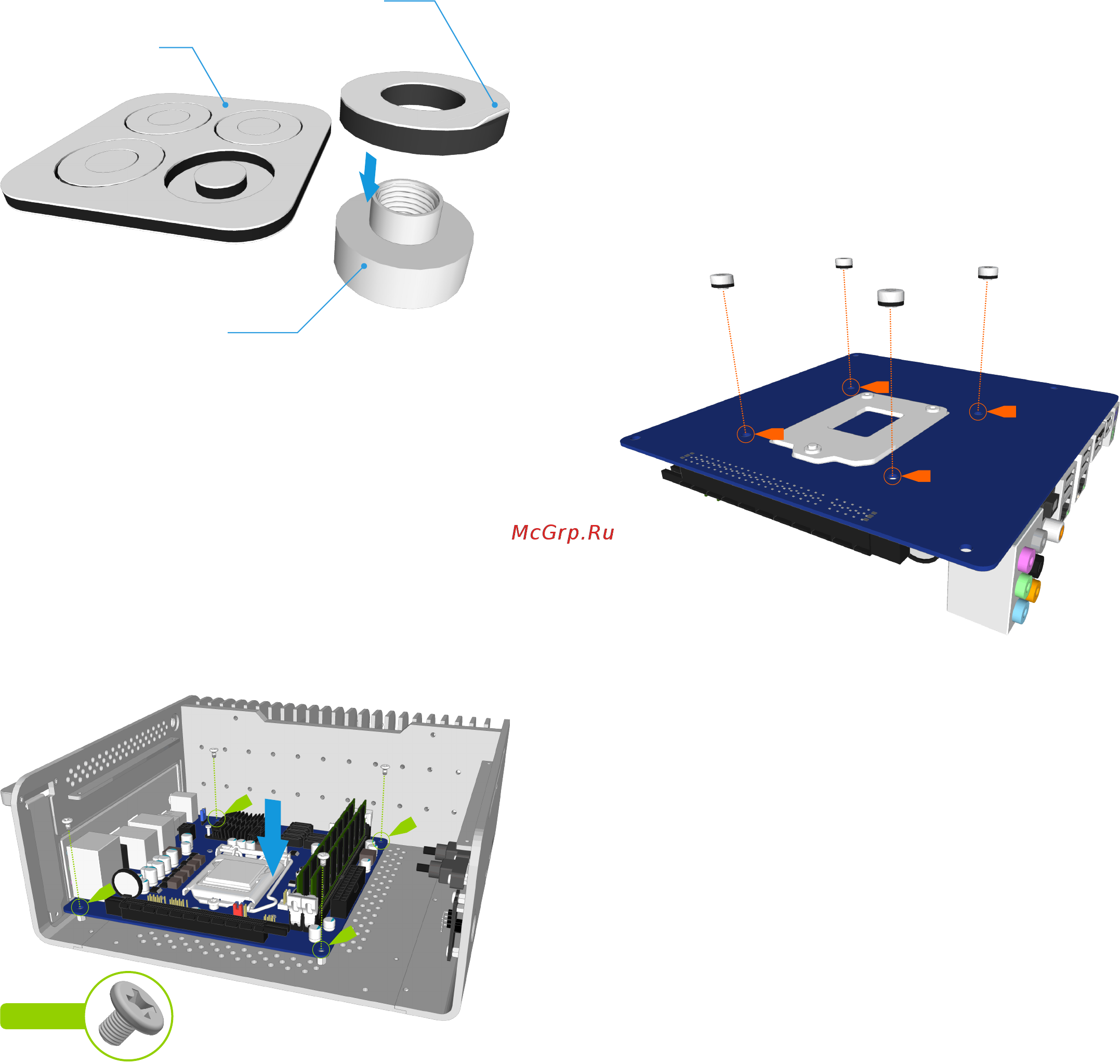

Fit the CPU Cooler Mounting Nuts

The 4 CPU cooler mounting nuts supplied with your case must be fitted

to the motherboard prior to installing it inside the case as they will be

required later on in the assembly to secure the CPU cooler assembly. The

nuts are held in place by adhesive pads which are supplied in a pack of 4

(there is a spare pack should you wish to change your motherboard in

future). Affix the adhesive pads to the CPU nuts in preparation for fixing

them to the motherboard.

With the motherboard turned upside down, located the CPU cooler

mounting holes. The hole position will vary depending on the brand and

model of CPU. Peel the protective film from the adhesive pads and stick

the nuts to the underside of the motherboard ensuring they correctly align

with the holes. The slightly raised rim of the nut should fit through the

motherboard CPU mounting holes.

Installing the Motherboard

Carefully lower the motherboard into the case, with the I/O port side

leading so that the ports can fit into the I/O shield.

When the motherboard is correctly in position, secure it to the case

stand-offs using the screws provided. Ensure that all the holes correctly

align before fully tightening the screws.

CPU Cooler Mounting Nut

Adhesive Pads

Peel Protective Film

TC-M3x4
