Introduction to the screws & bracket

The BC1 Mini is supplied with 5 different types of screw which are used to mount all the various hardware to

the table. All screw threads are M3 except for the 6#32 thumbscrews which are used to attach PSUs.

The differences between the M3 and 6#32 thumbscrews thread is subtle, so ensure the correct one is used

to avoid damage to your BC1 Mini. They also feature an inner thread on the head of the screw which allows

for M3 screws to be screwed onto the thumbscrews, giving additional stacked mounting options.

The BC1 Mini brackets are used to fix additional components to the main body and feature a thick and thin

side which are interchangeable and designed to accommodate different lengths of screw and thread depth

on the hardware being fitted.

Note that all the screws feature a thin plastic washer at the base to ensure there is minimal damage to the

aluminium surface at the point of contact. The PCI thumbscrews are packed with extra washers which

should be used between the brackets and main body to minimise damage.

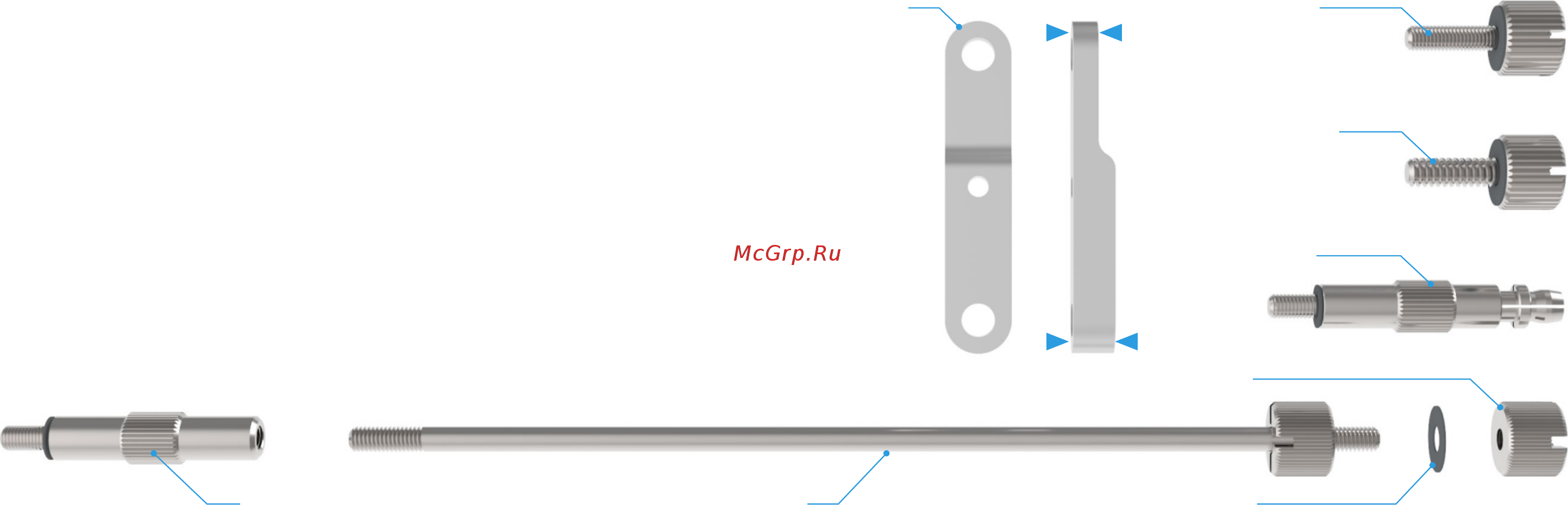

M3 thumbscrew

Threaded standoff

6#32 thumbscrew

Pushpin standoff

Washer

PCI thumbscrew

Bracket

5mm

3mm

PCI nut
