Removing feet, brackets and screws from the main body

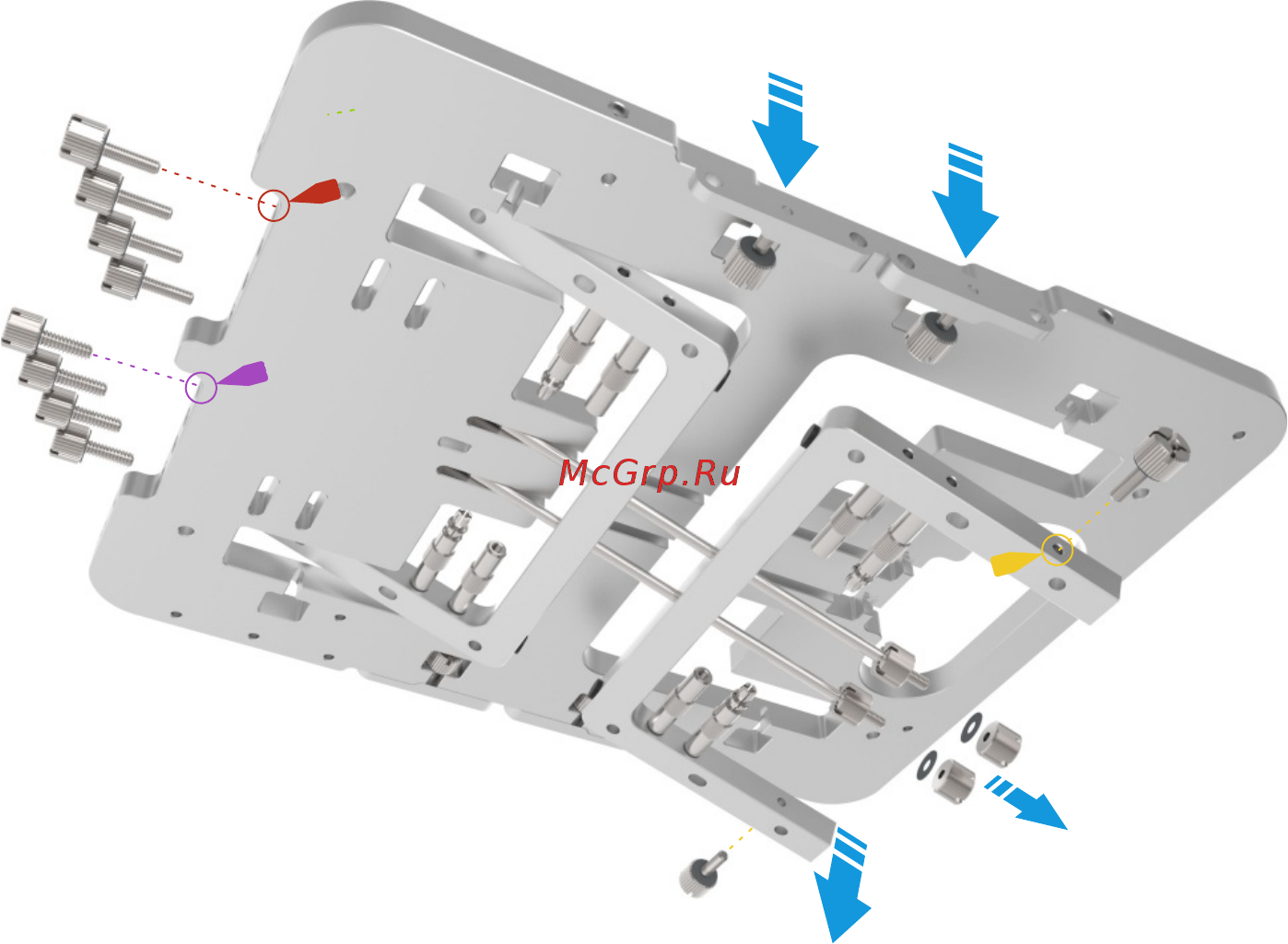

The BC1 Mini features a unique self contained design with all the parts required for

assembly stored and fitted directly to the main body. Parts are removed by either

loosening or unscrewing the appropriate thumbscrew securing it to the main body.

The feet are held in place by a total of 6 thumbscrews, 2 on either side, plus 2 PCI

thumbscrews which run though the center of the feet. To release the feet, first remove all 4

of the side thumbscrews then loosen the nuts on 2 PCI thumbscrews, pivot the feet

downwards and out from the main body.

The same thumbscrews used to secure the feet when stored will be used to attached the

feet to the main body in the assembled position although any of the M3 thumbscrews can

be used as they are identical and interchangeable.

Note that the pushpin and threaded standoffs are secured to the feet and can be removed

at this time as they will be required to mount the motherboard and expansion card.
