Streacom ZF240 Fanless 240W ZeroFlex PSU [2/2] Important notice

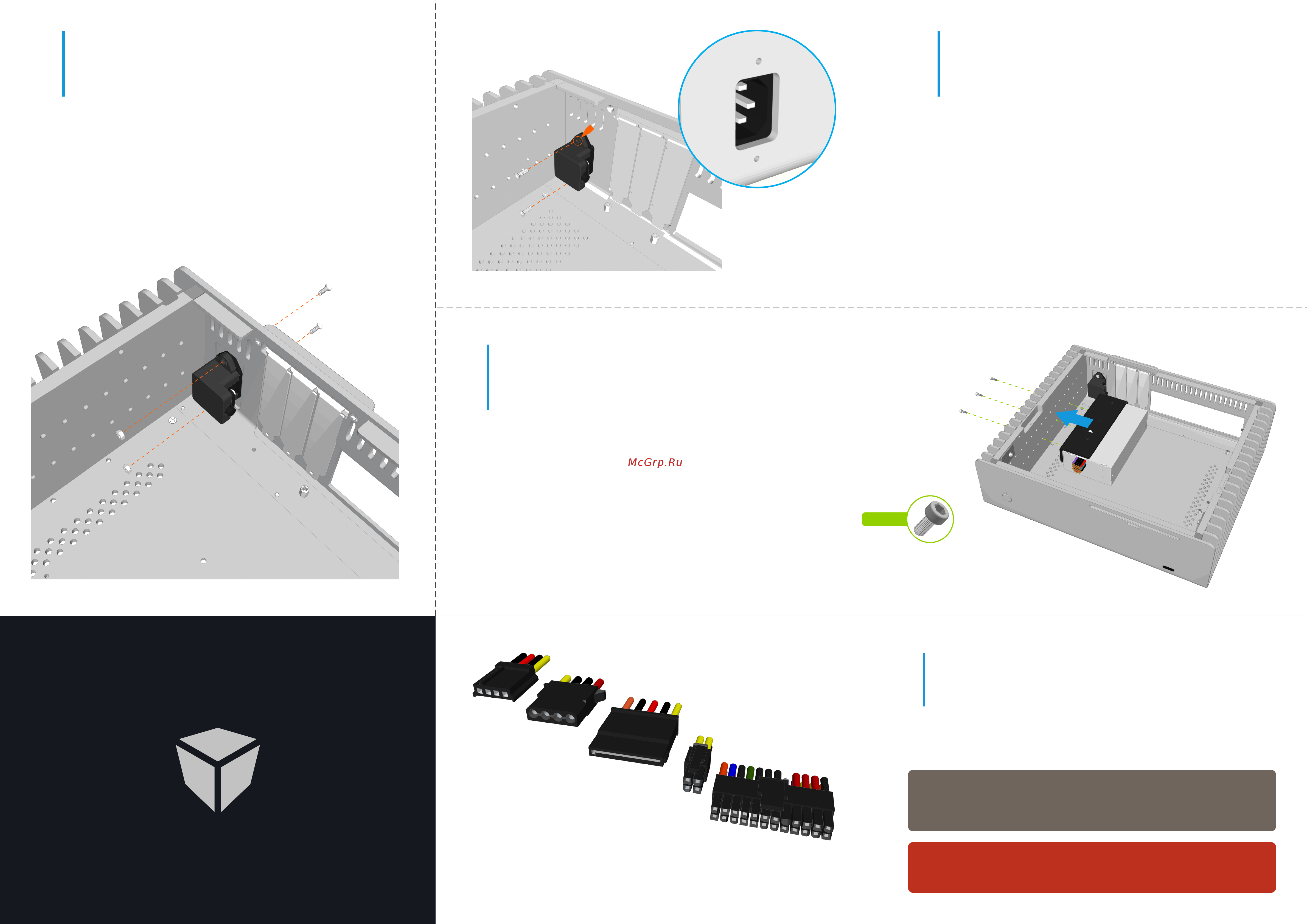

Fitting the IEC Socket (Newer Generation Cases)

With the DC Jack Mounting Plate removed, fit the IEC socket through the opening from

the inside of the case, then secure it to the back panel using the screws and nuts

originally fitted to the IEC socket. Note that the screws fit from the OUTSIDE of the

case and the nuts fit in the IEC socket.

Fitting the IEC Socket (Older Generation Cases)

With the DC Jack Mounting Plate removed, fit the IEC socket to the back panel from the

inside of the case and secure it from the inside using the original screws holding the DC Jack

Mounting Plate in place. Note that the screws fit from the INSIDE of the case and the socket

does NOT fit through the opening but instead sits flat against the inside of the back panel.

Fit the ZF240 to the case heatsink

The ZF240 secures to the case using the 3 hex screws supplied and fixes directly to the

heatsink. Place the ZF240 against the side of the case and adjust the position until the holes in

the heatsink connector align with the holes in the case heatsink. Note that thermal paste is

NOT required when fitting the ZF240.

Connect all the cables

With the ZF240 and all other components fitted, connect the motherboard and peripheral

hardware to the PSU. Finally, connect the mains cable to the IEC socket and power up your

system.

Important Notice

IMPORTANT NOTICE

Passively cooled products can get hot to the touch, especially when systems are running at high loads for

extended periods. This is a normal part of their operation and they have been tested to run safely under

these conditions. Please take their operational temperature into consideration when positioning and handling.
