Fix the Upper CPU Mount to the HT4

Using the 4 Hex screws and allen key supplied with your chassis, fix the assembled upper CPU mount

to the HT4. Both sides of the HT4 are identical, so it does not matter which side you choose.

P6 -ASSEMBLING THE HT4

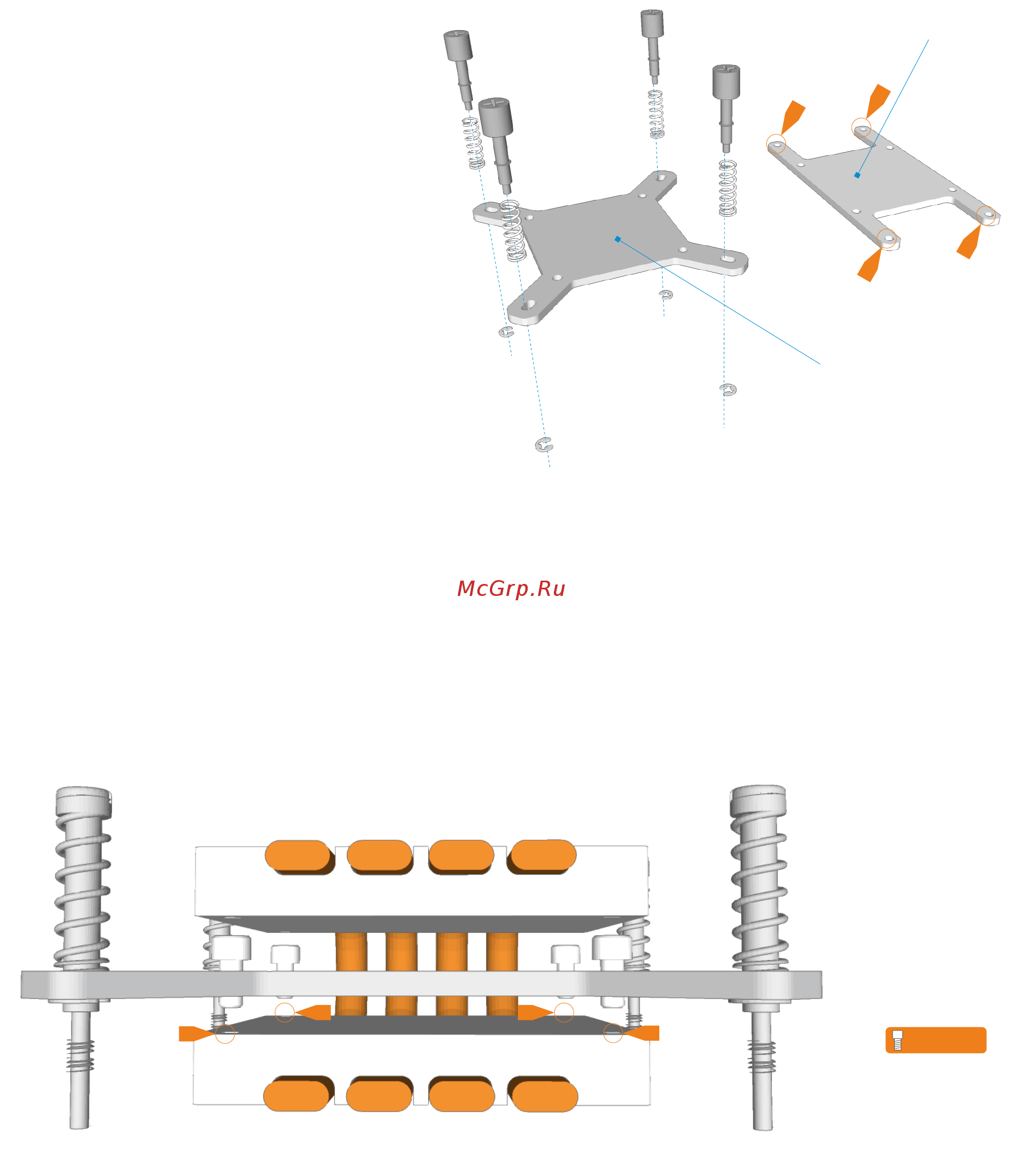

Assemble the Upper CPU Mount

Depending on which type of motherboard and

CPU socket you have purchased, you will either

® ®

need to assemble the Intel or AMD type upper

CPU mount. You do not need to assemble both.

The mount is assembled as shown with the long

CPU retention screws, springs and C clips

attached to the outer arms of the mount.

AMD Mount

Intel Mount

M3 x 6
