INSTALLING THE CPU COOLER ASSEMBLY- P7

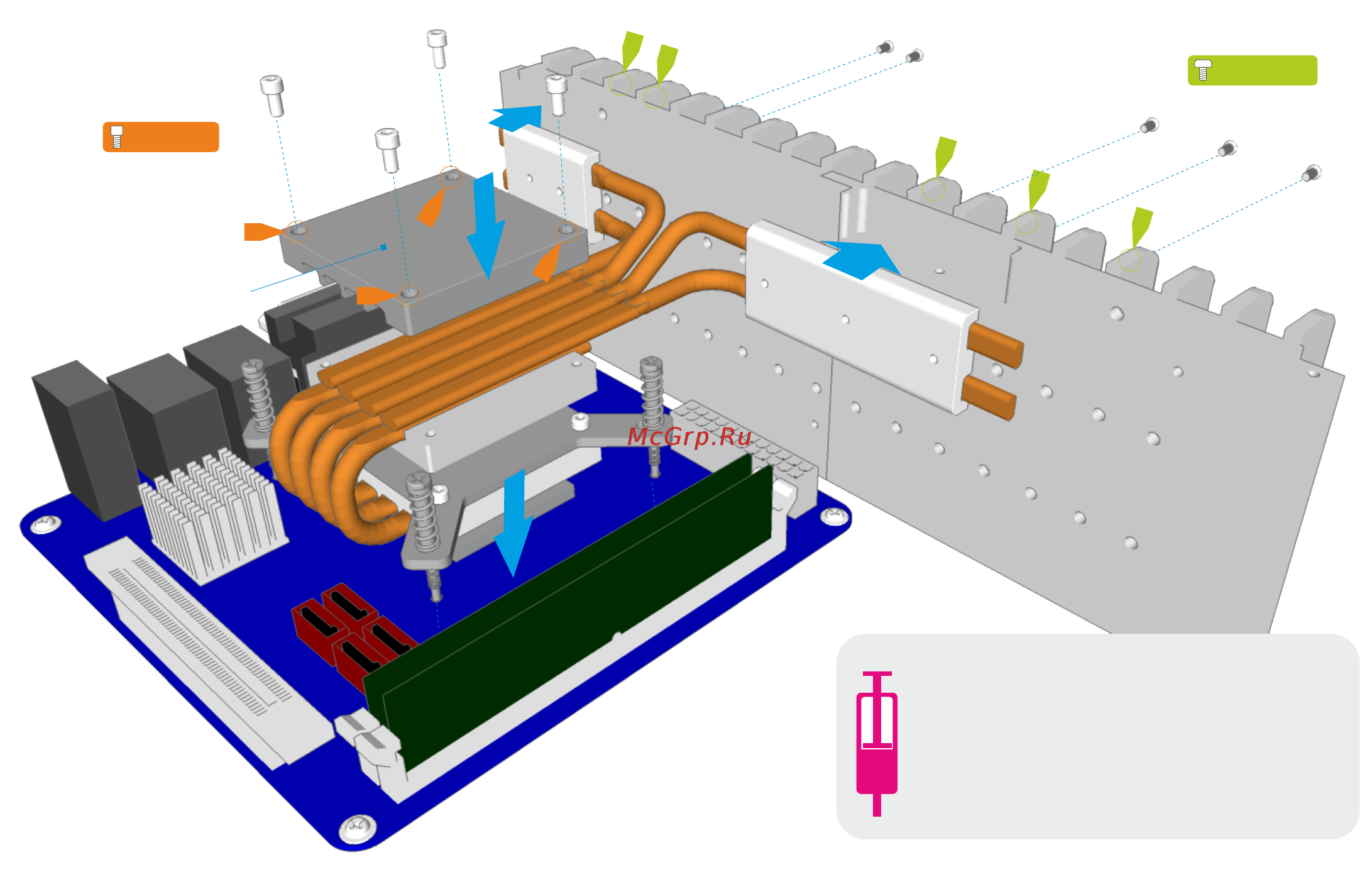

Installing the CPU Cooler Assembly

1. Fix the HT4 to the motherboard using the 4 spring loaded screws and ensure they correctly align with

the CPU cooler mounting nuts (refer to your chassis user guide), carefully tighten each screw (one turn

each side, alternating sides) until fully secured.

2. Attach the heatsink connector blocks and heatpipes to the chassis. Fit one side at a time, 2 heatpipes

for each side. Secure the connector blocks with screws ensuring the heatpipes align and sit flat against

the upper surface of the HT4. Do not fully tighten the screws to allow for some small movement.

3. Complete the assembly by fixing the upper HT4 mount to the top of the HT4. Ensure that the heatpipes

align with the slots and firmly press the heatpipes upper and lower heatpipes together. You can now fully

tighten all the screws.

M3 x 10

M3 x 8

Warning! Do not forget to use

thermal paste, as this can result

in poor heat transfer and

eventual CPU damage.

Upper HT4 Mount
