Streacom GPU Cooling Kit for DB4 [4/16] Remove panels

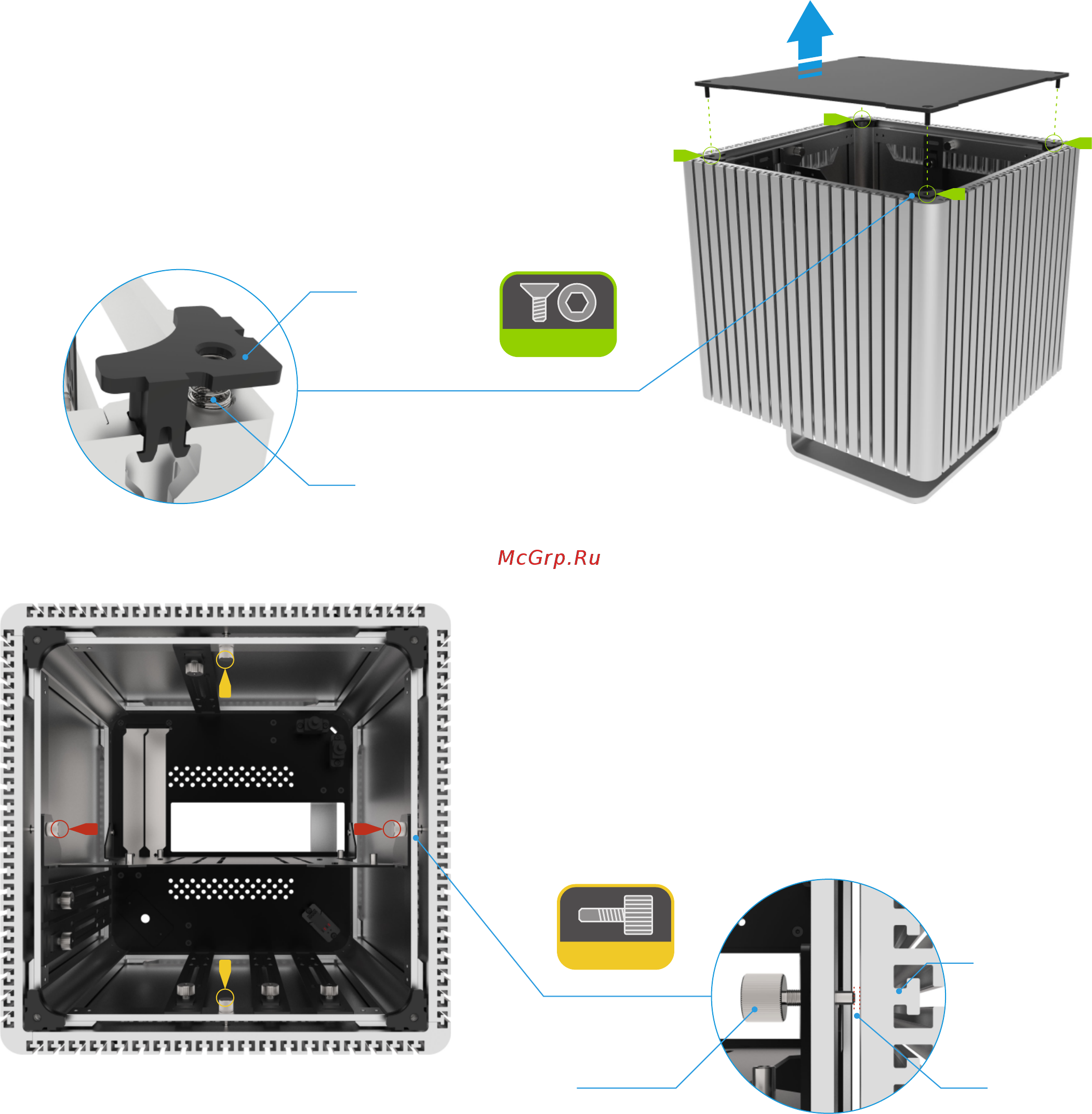

Removing the Top Panel

The top panel is secured in place by 4 HEX screws accessible from the top of the

case. The screws are retained by the top panel so you don't loose them. Below

each one is a Panel Catch that is spring loaded and will lift the top panel above the

edge of the side panels so it can be easily removed. When in the down position,

the Panel Catch also serves a secondary function of locking the side panels in

place.

Unscrew the 4 HEX Screws, you will feel each corner spring upwards when they

are released, then lift the top panel away from the case.

Unlock the Side Panels

In addition to the panel catch, each of the 4 side panels also has a single

thumbscrew securing it to the frame. This allows the system to be serviced with

the top panel removed but without the worry of the side panels coming free. The

left and right thumbscrews (in red) serve the additional function of fixing the

motherboard tray to the frame.

Remove all 4 thumbscrews to release the side panels. Note that they do not

need to be fully removed from the frame, just loosened to the point where they

clear the side panels. The motherboard tray thumbscrews will need to be fully

removed in order to release the tray.

PH-M3x6

TC-M3x4

HCS-M4x12

Panel Catch

Spring Loaded

Unlocked Position

Side Panel

Side Lock Thumbscrew

HTS-M3x16
