INSTALLING THE MOTHERBOARD - P5

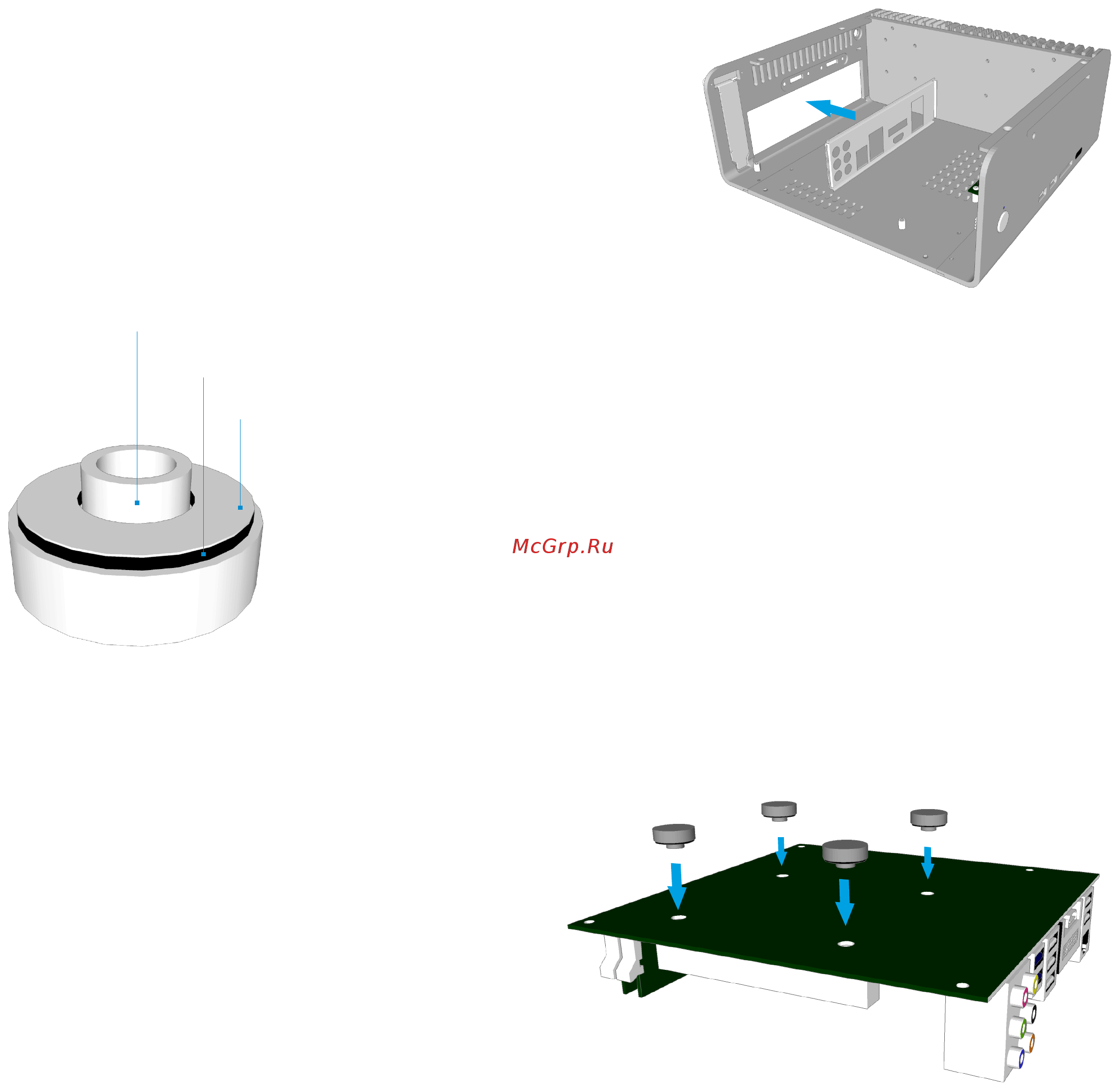

Installing the I/O Shield

Locate the I/O shield that is supplied with your

motherboard and firmly push it in place. Ensure that it

clicks in place fully otherwise the motherboard will be

difficult to fit.

Fit the CPU Cooler Mounting Nuts

The chassis is supplied with 4 mounting nuts

which should be fixed to the motherboard prior to

fitting it. The nuts should be fixed to the underside

of the motherboard and are held in place by

adhesive pads.

With the motherboard upside down, located the 4

CPU cooler mounting holes. Peel the protective

label off the mounting nuts and stick them to the

underside of the motherboard ensuring they

correctly align with the holes.

CPU Cooler Mounting Nut

Adhesive Pad

Protective Label
