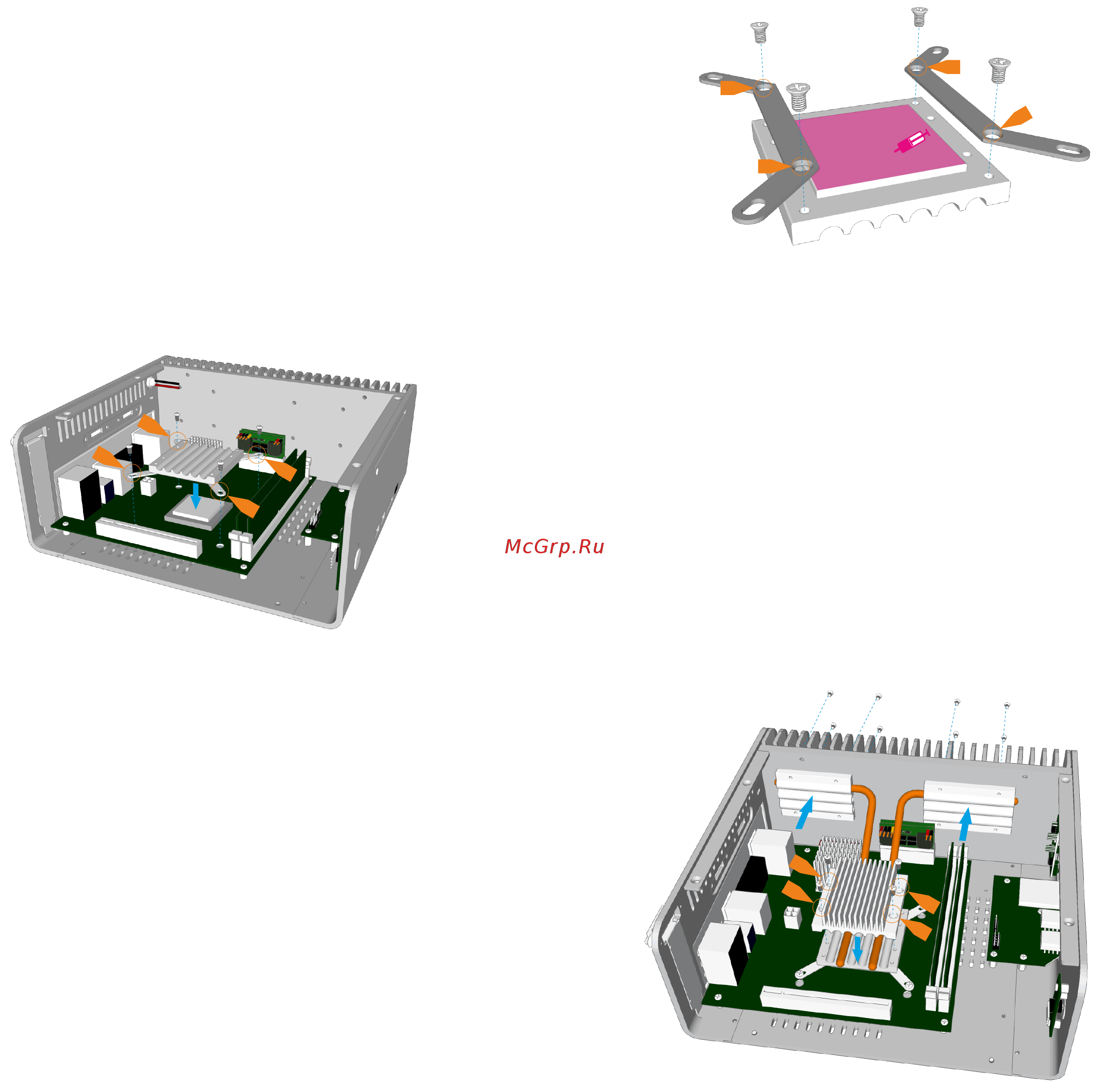

Attach the CPU Cooler Retention Arms

The kit will include 2 retention arms which should be fixed

to the underside of the lower CPU connector. These arms

will allow the cooler to be fixed to the CPU and

Motherboard. Thermal paste should be applied to the

surface that will be in contact with the CPU. The arms are

held in place by 4 screws.

Place the lower CPU cooler onto the CPU ensuring the

holes of the mounting arms align with the 4 mounting nuts

that were previously fixed to the motherboard. Install all 4

screws and gradually tighten each one so that equal

pressure is applied to each corner until all 4 are fully

secured.

With the lower CPU Cooler now fixed in place, ensure

that thermal paste is applied to all the specified areas

and fit the upper CPU cooler, heatpipes and heatsink

connector blocks in place. The upper CPU cooler is held

in place by 4 screws and the heatsink connectors are

help in place by a total of 8 screws, 4 for each side. The

heatpipes, connectors and cooler are designed to have

an adjustable position which allows for different

motherboard CPU locations.

INSTALLING THE CPU COOLER - P7
