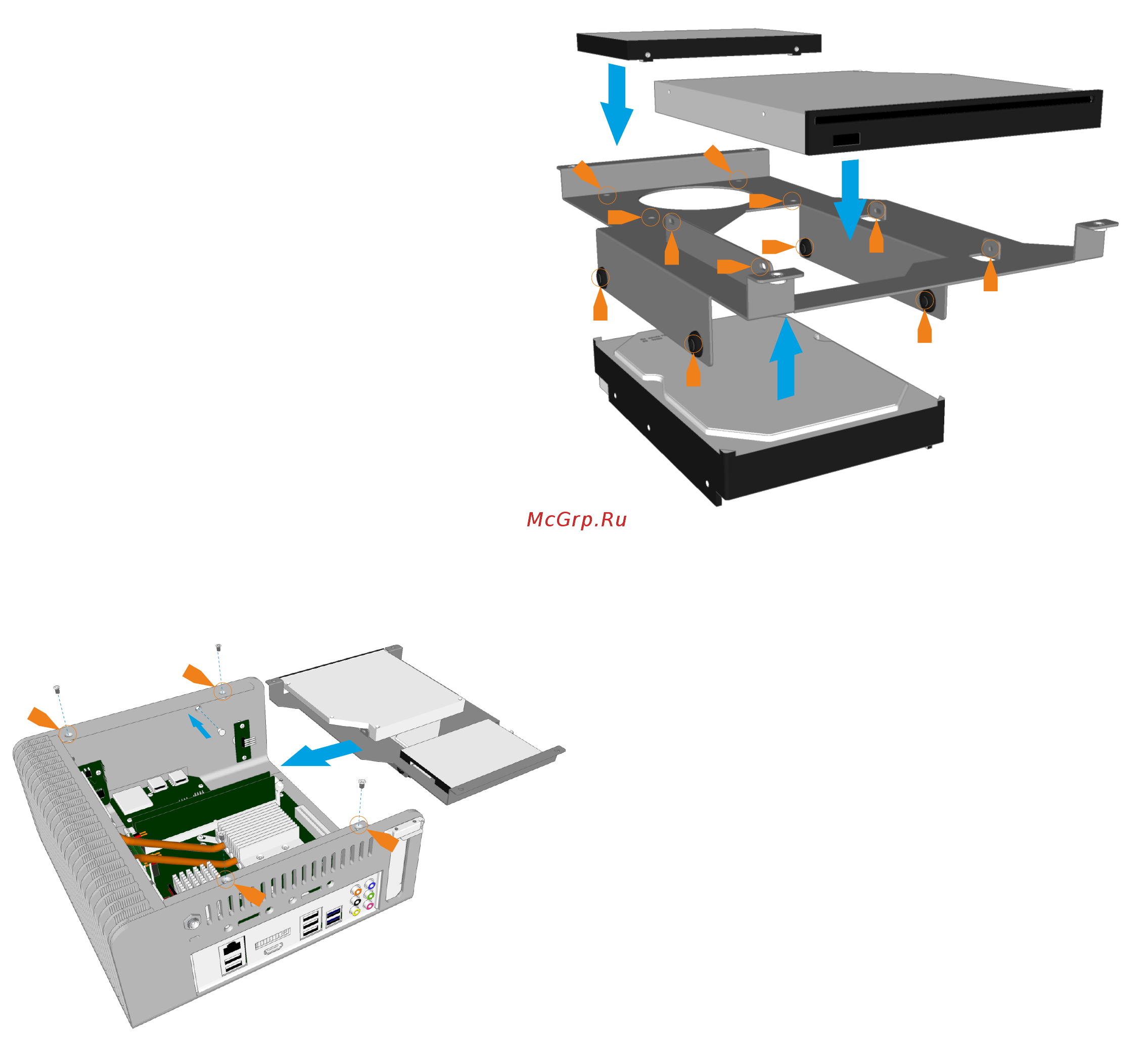

Installing the HD and OD Drives

With the cage out of the chassis, all the drives

can fitted with ease.

The slot loading optical drive is mounted using

4 screws, 2 either side. The mounting holes

are rectangular which allows for small

adjustments to the position on the drive. This

is useful when adjusting the proximity to the

chassis eject button.

The 3.5" hard drive fits under the optical drive

and has 4 rubber dampeners to reduce noise

from hard drive vibrations.

The 2.5" hard drive can be mounted behind the

optical drive and is secured underneath with 4

screws.

Fitting the Eject Button and HDD/ODD Cage

Prior to replacing the HDD/ODD cage into the

chassis, the ODD eject button should be

fitted. The eject button is packed with the

other screws and accessories and simply fits

as shown into the hole below the ODD slot.

The cage can now be replaced into the

chassis. Carefully slide the assembly

ensuring cables are routed correctly and that

the ODD eject button aligns and is held in

place by the optical drive. The cage is

secured by 4 screws from above.

P8 - FITTING THE HDD & ODD
