4. Installation

LED Indicators:

~:REDLEDindicatesthattheKVMSwitchisselectedtothecorrespondingPC.

� :GREENLEDindicatesthattheKVMSwitchisreadytothecorrespondingPC.

Reset Switch:

Press this switch when a system reset. This switch must be pushed with a thin

object,forexample,suchastheendofapaperclip,oraballpointpen.

4.1 Single installation

Precaution:

1.With under running OS Windows 98 , we sugget that the PC must be plugged

to PS/2ports,becauseofWindows98is not support installationat rsttimeas

throughUSBHIDinstallationdriver.

2. There are some of older PCs can support USB ports during booting, but you

needtoopenBIOSUSBsettingatrst.

Console connecting:

Plug your PS/2 keyboard, mouse and VGA video into the Console ports located on

the KVM Switch’s front panel.

System connecting:

Use KVM custom cable sets to connect any available PC ports to the video and

either USB or PS/2 ports alternatively, or even USB & PS/2 both all connected to

the computers you are connecting up.

Note

The custome cable set, as Fig. 1, is supplied cable set with this

package; any additional sets is required purchase separately.

To purchase the custom KVM cable sets, please contact with your dealer.

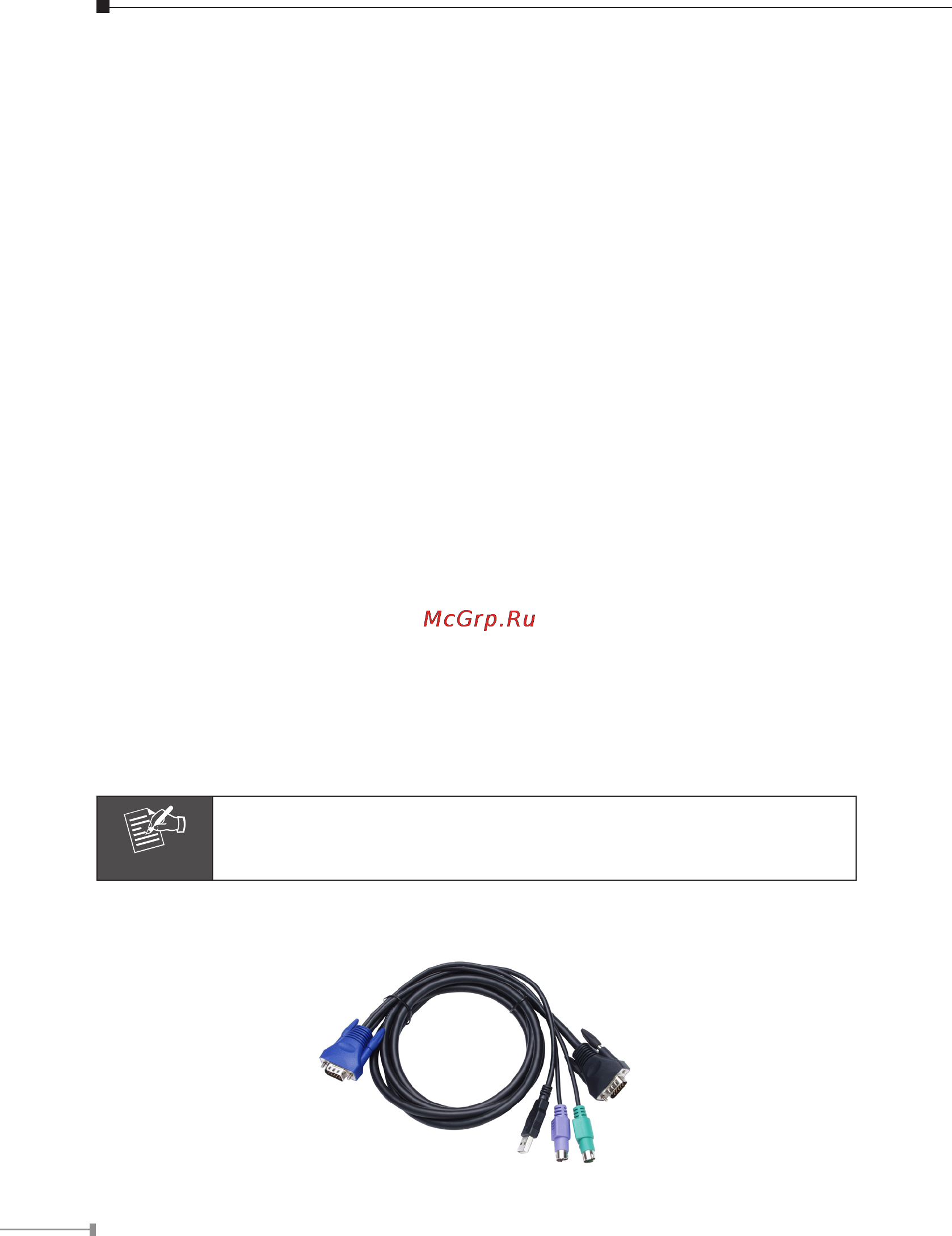

Fig. 1 combo custom 4-in-1 cable
