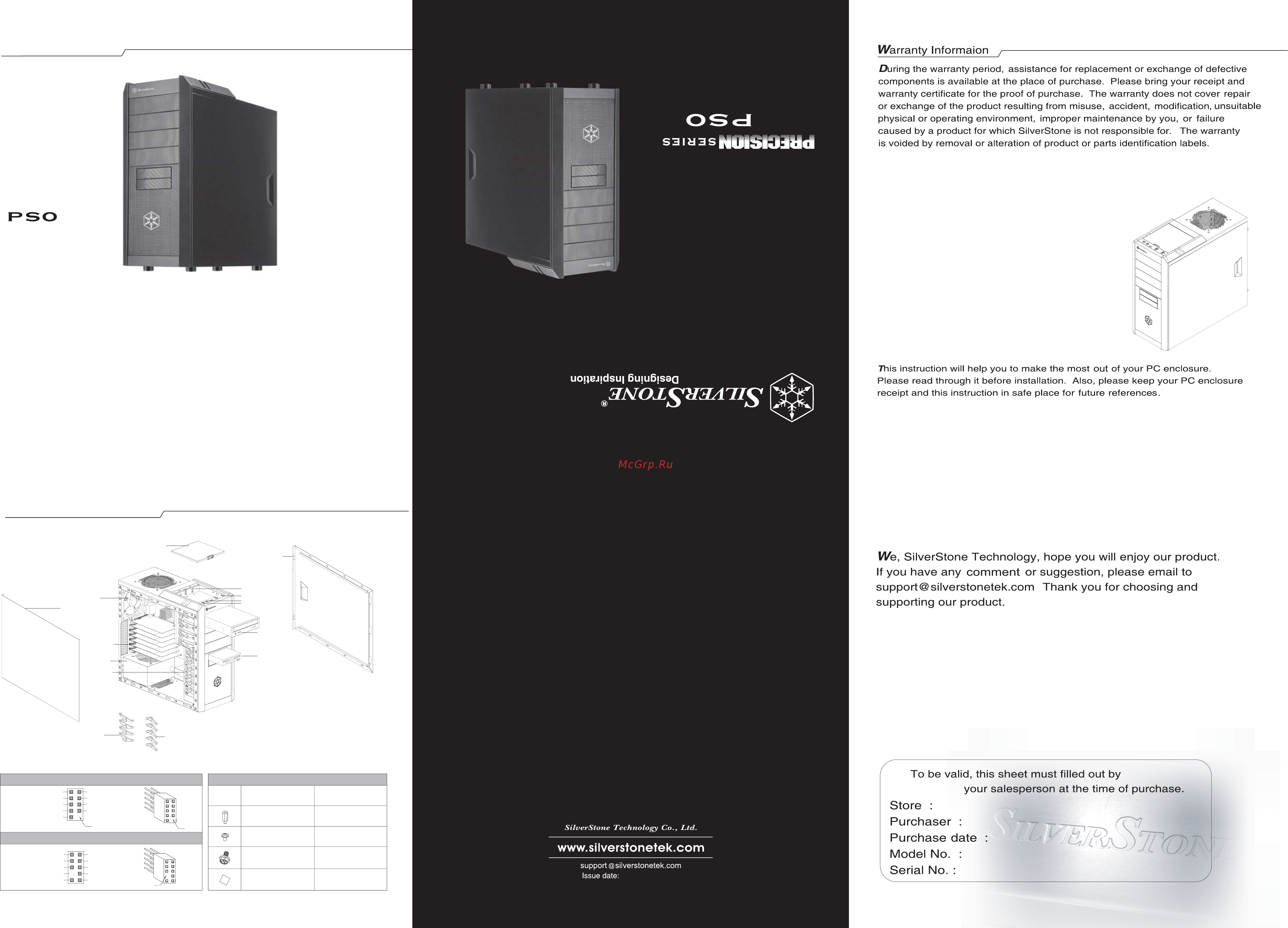

Disassemble Chart
Product Overview
Material : Mesh front panel and steel body
Motherboard : ATX, Micro ATX
Driver Bay : External 5.25" x 4, 3.5” x 2
Internal 3.5” x 5
Cooling System : Front
Rear
Top
Expansion Slot : 7
Front I/O Port : USB2.0 x 4, Audio x 1, MIC x 1
Power Supply : 1 x Optional standard PS2 (ATX)
Dimension : 200mm (W) x 472mm (H) x 471mm (D)
1 x 120mm fan slot
1 x 120mm exhaust fan
1 x 120mm or 1 x 140mm fan slot
NO:G11211300
December, 2009
USB2.0 CONNECTOR
HD AUDIO CONNECTOR
USB+5V
LP-
LP+
GND
NC
USB+5V
LP-
LP+
GND
Pin
AUD GND
PRESENCE#
SENSE1_RETURN
NO PIN
SENSE2_RETURN
PORT1L
PORT1R
PORT2R
SENSE_SEND
PORT2L
Pin
Pin
PARTS PACKAGE
PART NAMEPHOTO
PURPOSE
MANUAL
-
METAL STANDOFF
FOR SECURE
MOTHERBOARD
SCW-PW-M3*6
SCW-HW- #6-32*6
FOR SECURE PSU
Warrantly period is region specific, please contact your reseller or
SilverStone authorized distributor for more information
3
MANUAL
MANUAL
Specification:
3
b
FOR SECURE
MOTHERBOARD
LEFT SIDE PANEL
12025 FAN
EXPANSION CARDS
(OPTION)
POWER SUPPLY
(OPTION)
3.5” x 5 DRIVE BAY
(HDDEN)
5.25” LOCKING CLIP x 4
3.5” DRIVE BAY
5.25” DRIVE BAY
POWER BUTTON
RESET BUTTON
USB2.0 x 2 + SPK x 1 + MIC x 1
3.5” LOCKING CLIP x 5
RIGHT SIDE PANEL
STORAGE COVER
USB2.0 x 2
