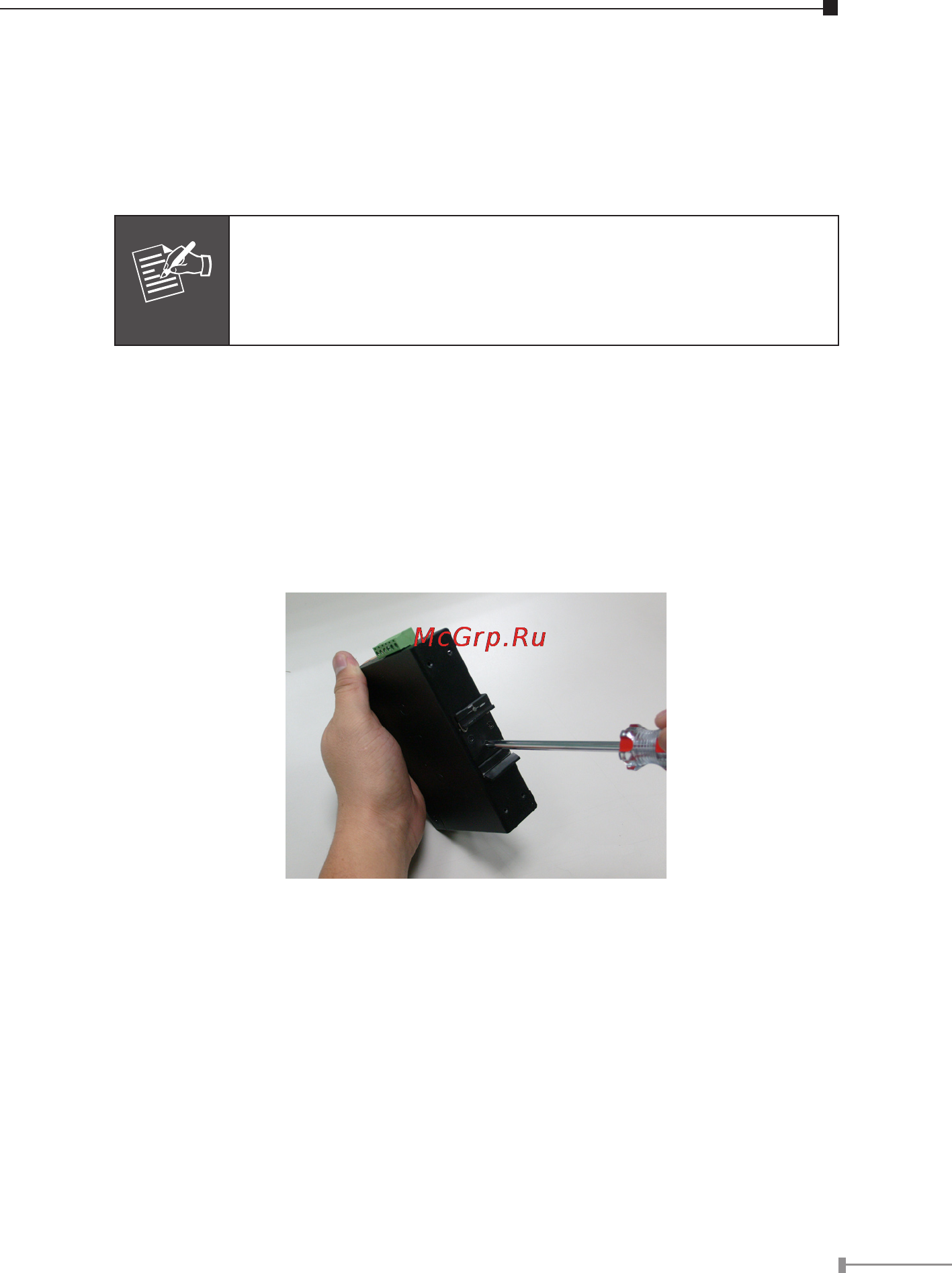

2.2 Mounting Installation
This section describes how to install the Industrial Fast Ethernet Switch
and make connections to it. Please read the following topics and
perform the procedures in the order being presented.
Note
In the installation steps below, this Manual use IGS-
801 (PLANET 8 Port Industrial Gigabit Switch) as the
example. However, the steps for PLANET Industrial
Switch & Industrial Media Converter are similar.
2.2.1 Install DIN-Rail Mounting
The DIN-Rail is screwed on the Industrial Fast Ethernet Switch when
out of factory. When need to replace the wall mount application with
DIN-Rail application on Industrial Fast Ethernet Switch , please refer to
following gures to screw the DIN-Rail on the Industrial Fast Ethernet
Switch. To hang the Industrial Fast Ethernet Switch, follow the below
steps:
Step 1: screw the DIN-Rail on the Industrial Fast Ethernet Switch.
