PANEL DESCRIPTION

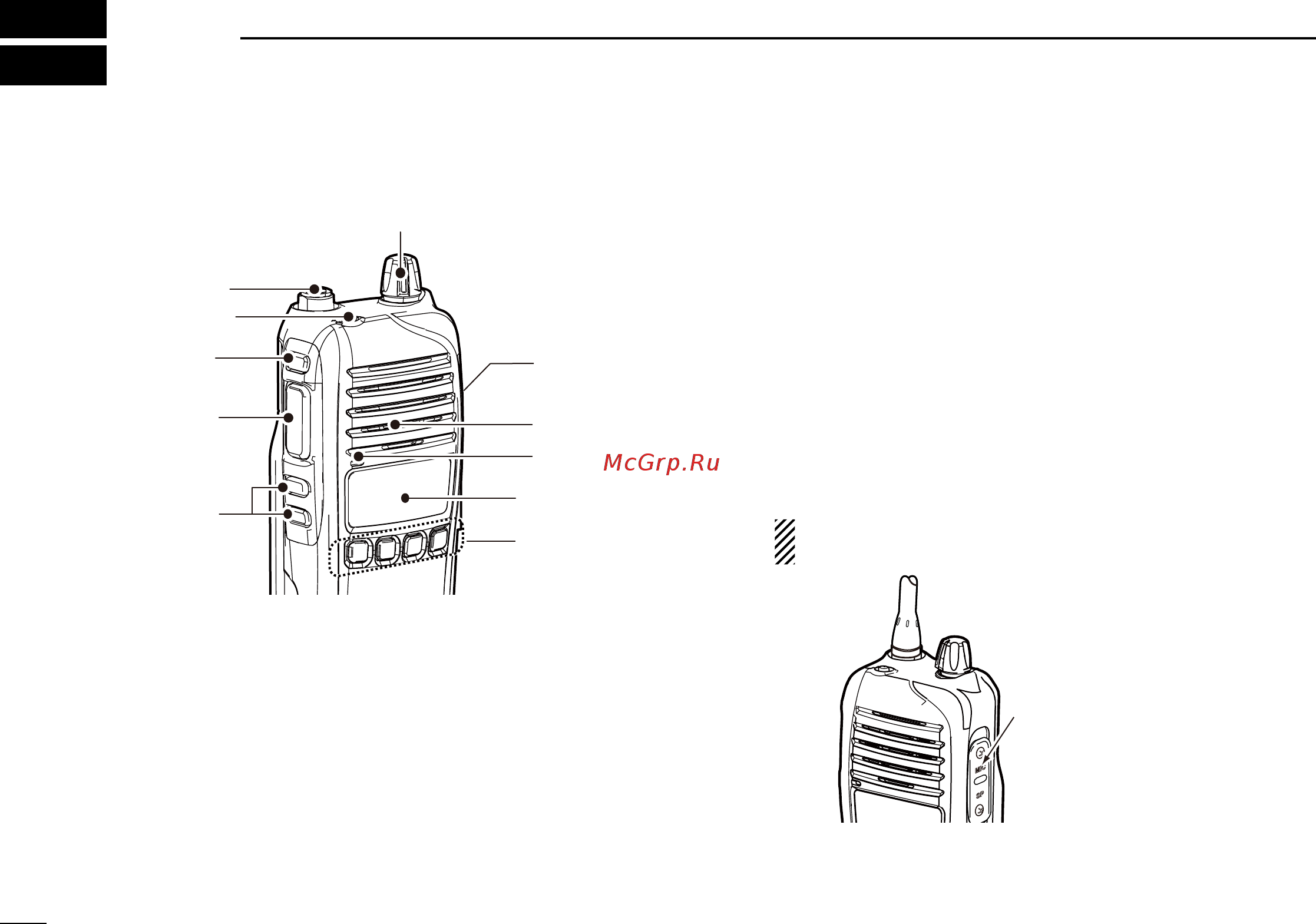

Front panel ■

Microphone

Speaker

q ANTENNA CONNECTOR

 Connects the supplied antenna.

w DEALER-PROGRAMMABLE KEY [Emer]

Desired function can be programmed by your dealer. (p. 7)

e DEALER-PROGRAMMABLE KEY [Side1]

Desired function can be programmed by your dealer.

(p. 5)

r PTT SWITCH [PTT]

 Push and hold to transmit; release to receive.

t DEALER-PROGRAMMABLE KEYS [Side2]/[Side3]

Desired functions can be programmed independently by

your dealer. (p. 5)

y DEALER-PROGRAMMABLE KEYS [P0] to [P3]

Desired functions can be programmed independently by

your dealer. (p. 5)

u FUNCTION DISPLAY (p. 4)

 Displays a variety of information such as an operating

channel number/name, 2-tone code, DTMF numbers, se-

lected function and so on.

i EXTERNAL MICROPHONE/SPEAKER JACK

Connect an optional speaker-microphone.

NOTE: Connect or disconnect the optional equipment

after the transceiver is turned OFF.

Jack cover

NOTE: Attach the jack

cover when the optional

equipment is not used.

See (p. 2) for details.

o VOLUME CONTROL [VOL]

Rotate to turn the power ON/OFF and adjusts the audio

level.
