![SilverStone DA750 [12/12] Da750 manual 12 pdf](/img/pdf.png)

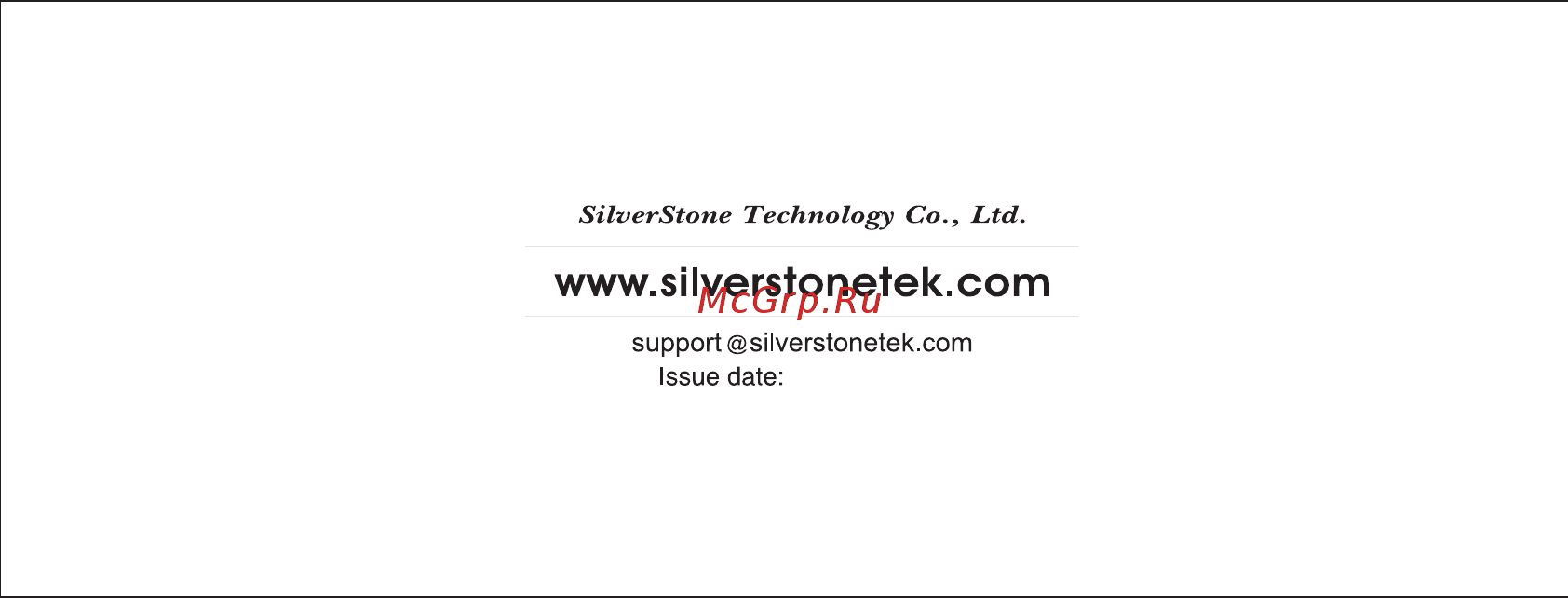

SilverStone DA750 [12/12] Da750 manual 12 pdf
![SilverStone DA750 [12/12] Da750 manual 12 pdf](/views2/1720043/page12/bgc.png)
Содержание
- Da750 manual 01 pdf 1
- Decathlon 1
- The all around power 1
- 1 ac input voltage frequency and current rating 100v 240vac 47 63hz 12 6a 2
- 2 ac inrush current 2
- 3 input power factor correction active pfc 2
- 4 input current harmonics 2
- 5 ac line dropout 2
- Ac input specifications 2
- Da750 manual 02 pdf 2
- General 2
- Silverstone decathlon da750 switching power supply with active pfc ps 2 modular 750w 2
- Specification 2
- 1 output current loading 3
- 2 dc voltage regulation ripple and noise 3
- 3 timing requirements 3
- Da750 manual 03 pdf 3
- Dc output specification 3
- Decathlon da750 decathlon da750 3
- Ripple and noise shall be measured using the following methods 3
- Table 5 output loads range 3
- Table 7 regulation ripple and noise 3
- Da750 manual 04 pdf 4
- Table 10 output voltage 4
- 4 remote on off control pson 5
- 5 efficiency 5
- 6 5vsb standby 5
- Ac input 5
- Ac off ac on 5
- Da750 manual 05 pdf 5
- Decathlon da750 decathlon da750 5
- Table 13 pwok signal characteristic 5
- The 5vsb output is always on 5v standby when ac power is applied and power switch is turned on the 5vsb line is capable of delivering at a maximum of 3a for pc board circuit to operate 5
- The efficiency is specified at 50 and 20 loading conditions to help reduce system power consumption at typical system loading conditions 5
- The pson signal is required to remotely turn on off the power supply pson is an active low signal that turns on the 5v 3 v 12v and 12v power rails when this signal is not pulled low by the system or left open the outputs except the 5vsb and v bias turn off this signal is pulled to a standby voltage by a pull up resistor internal to the power supply 5
- 1 over current protection 6
- 1 temperature 6
- 2 over voltage protection 6
- 3 short circuit protection 6
- Da750 manual 06 pdf 6
- Environmental requirements 6
- Non operating temperature range 40 70 40 158 6
- Operating temperature range 0 50 32 122 6
- Protection 6
- Protection circuits inside the power supply shall cause only the power supply s main outputs to shutdown if the power supply latches off due to a protection circuit tripping either a ac cycle off for 15 sec or pson cycle high for 1 sec must be able to restart the power supply 6
- The power supply shall shut down in a latch off mode when the output voltage exceeds the over voltagelimit shown in table 4 6
- The power supply shall shut down in a latch off mode when the output voltage is short circuit 6
- This power supply shall have current limit to prevent the 5v 3 v and 12v outputs from exceeding the values shown in table 14 the current limit shall not trip under maximum continuous load or peak loading as described in table 5 the power supply shall latch off if the current exceeds the limit the latch shall be cleared by toggling the pson signal or by cycling the ac power the power supply shall not be damaged from repeated power cycling in this condition the 12v and 5vsb outputs shall be shorted circuit protected so that no damage can occur to the power supply 6
- 1 mean time between failures mtbf 7
- 1 safety certification 7
- 2 ac input leakage current 7
- 2 humidity 7
- 2 warranty 7
- Agency requirements 7
- Da750 manual 07 pdf 7
- Decathlon da750 decathlon da750 7
- Input leakage current from line to ground will be less than 3 ma rms measurement will be made at 240 vac and 60hz 7
- Non operating humidity range 5 95 rh non condensing 7
- Operating humidity range 20 90 rh non condensing 7
- Reliability 7
- The mtbf of the power supply shall be calculated utilizing the part stress analysis method of mil217f or bell core rpp the calculated mtbf of the power supply shall be greater than 100 000 hours under the following conditions full rated load 120v ac input ground benign 25 7
- Three 3 years manufacture s warranty technical information in this specification is subject to change without notice the revision of specification will be marked on the cover 7
- 1 ac input connector 8
- 2 dc wire harness and connector requirements 8
- Connections 8
- Da750 manual 08 pdf 8
- P1 motherboard power connector connector housing 24 pin molex 5557 no 9 01 2240 or equivalent contact molex 5556t no 4476 1111 or equivalent 8
- The ac input connector shall be an iec 320 c 14 power inlet this inlet is rated for 15 a 250 vac 8
- 12v baseboard power connector connector housing 4 pin molex 5557 39 01 2040 or equivalent contact molex 5556t 39 00 0059 or equivalent 9
- Da750 manual 09 pdf 9
- Decathlon da750 decathlon da750 9
- P2 processor power connector connector housing 8 pin molex 5557 39 01 2080 or equivalent contact molex 5556t 39 00 0059 or equivalent 9
- Pin hdd cd rom drive power connectors connector housing 4 pin amp 1 480424 0 or molex 8981 04p or equivalent contact amp 61314 1 or equivalent 9
- Signal 9
- Yellow green stripe 9
- Da750 manual 10 pdf 10
- For workstation systems with high powered graphics cards an additional power connector to the baseboard may be needed this connector supplies additional 12v power for the higher power level graphics cards used in workstation applications connector housing 6 pin molex 45559 0002 or equivalent contacts molex 39 00 0207 or equivalent 10
- Orange 10
- Pci express 6 pin 10
- Pci express 8 pin 10
- Serial ata power connector 10
- Signal 10
- This is a required connector for systems with serial ata devices molex housing 675820000 or equivalent molex terminal 67510000 or equivalen 10
- Workstation power connector for high power graphics cards 10
- Yellow green stripe 10
- Da750 manual 11 pdf 11
- Da750 manual 12 pdf 12
