OLYMPIA OP650OLYMPIA OP650
10
9. Physical Characteristics Size
9.1 Power Supply Dimension: 150 mm(W) x 86 mm(H) x 150 mm(D)

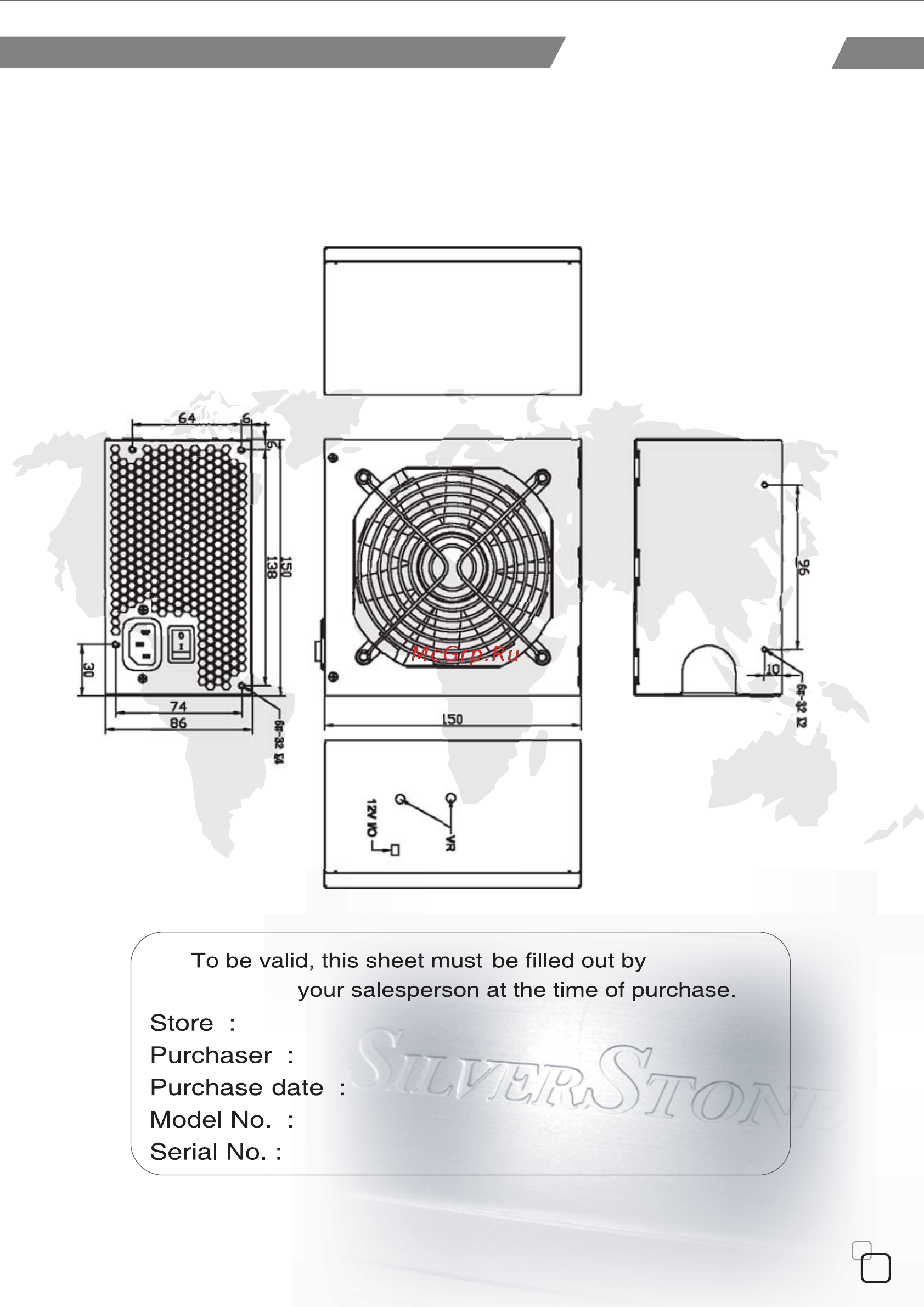

Mechanical drawing: Please refer to the attached sketch.
