09
* T1 : Turn on time ( 2 sec. Max.)
* T2 : Rise time ( 20mS Max.)
* T3 : Power good turn on delay time ( 100 < T3 < 500 mS )
* T4 : Switch on time (0.5 sec. Max.)
* T5 : Power good turn off delay time ( 1.0 mS Min.) PS-ON/OFF
* T6 : Power hold-up time ( 8 mS Min.)
* Power on-off cycle :

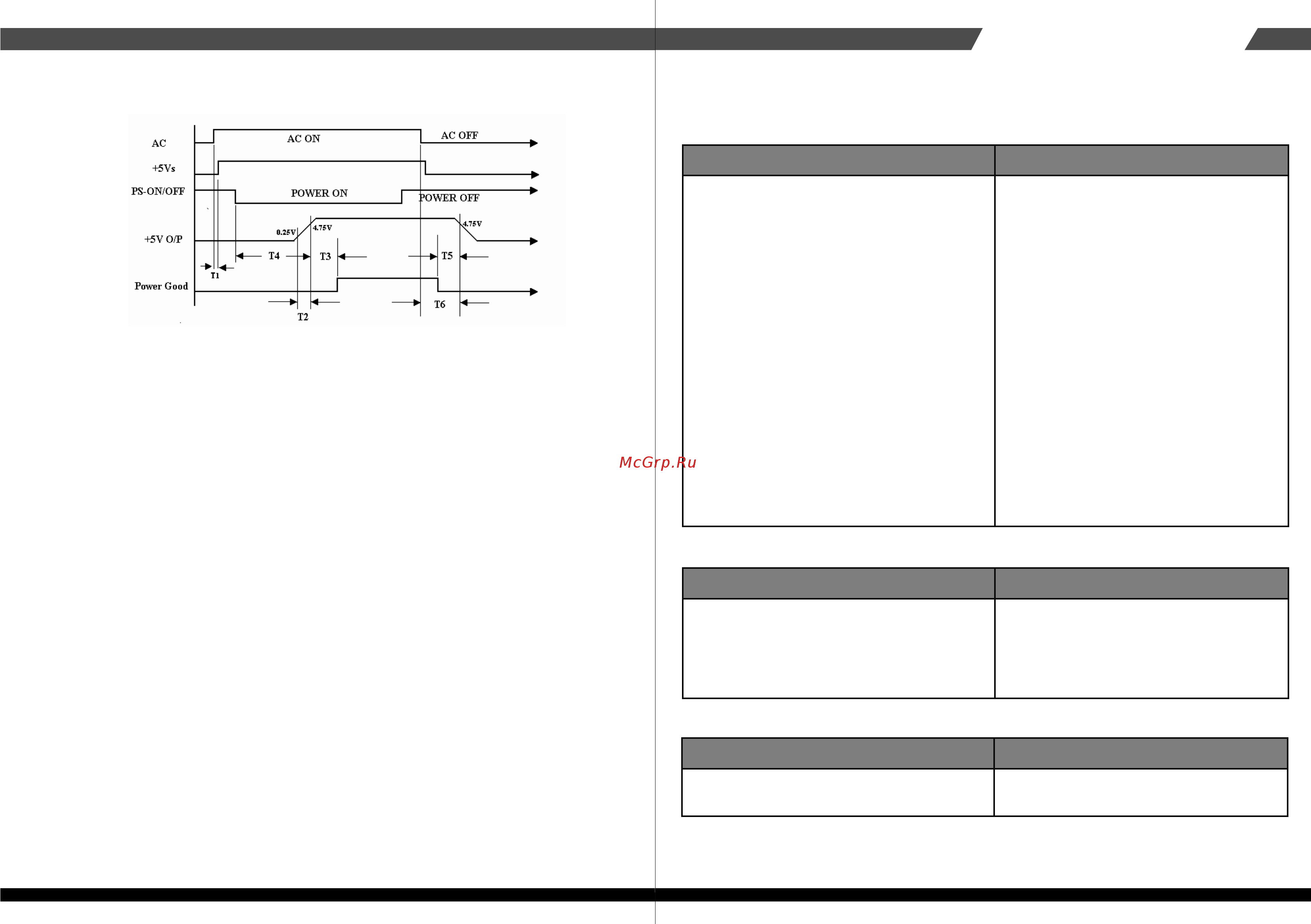

Time Diagram
Figure 1
<
=
When the power supply is turned off for a minimum of 2.0 sec. and turn on again, the
power good signal will be asserted.
The product shall meet requirement for EN61000-3-2 & EN61000-3-3 :2003 standard
of class D, test at 230Vac 50Hz.
10. HARMONICS
The power supply with active power factor correction, and meet the EN61000-3-2
standards, The power factor is greater than 0.9 at 230V/50Hz, Max. load.
150 mm (W) × 86 mm (H) × 140mm (D)
11. POWER FACTOR
12. MECHANICAL REQUIREMENTS
12.1 Physical Dimension
10
Strider Essential Series
12.2 Connectors
EPS 12V 8PIN connector
Signal Pin Pin Signal
Yellow +12V
Yellow +12V
Yellow +12V
Yellow +12V
5
6
7
8
1 COM Black
2 COM Black
3 COM Black
4 COM Black
M/B 24PIN connector
Signal Pin Pin Signal
Orange +3.3V
Orange +3.3Vsense
Blue -12VDC
Black COM
Green PS-ON
Black COM
Black COM
Black COM
White N/C
Red +5VDC
Red +5VDC
Red +5Vsense
Red +5VDC
Black COM
1 +3.3V
2 +3.3V
3 COM
4 +5VDC
5 COM
6 +5VDC
7 COM
8 PWRGOOD
9 5Vsb
10 +12V
11 +12V
12 +3.3V
Orange
Orange
Black
Red
Black
Red
Black
Grey
Purple
Yellow
Yellow
Orange
13
13
14
15
16
17
18
19
20
21
22
22
23
24
ATX 12V 4PIN (4+4PIN EPS 12V in split mode)
Signal Pin Pin Signal
Black GND
Black GND
1
2
3 +12V Yellow
4 +12V Yellow
