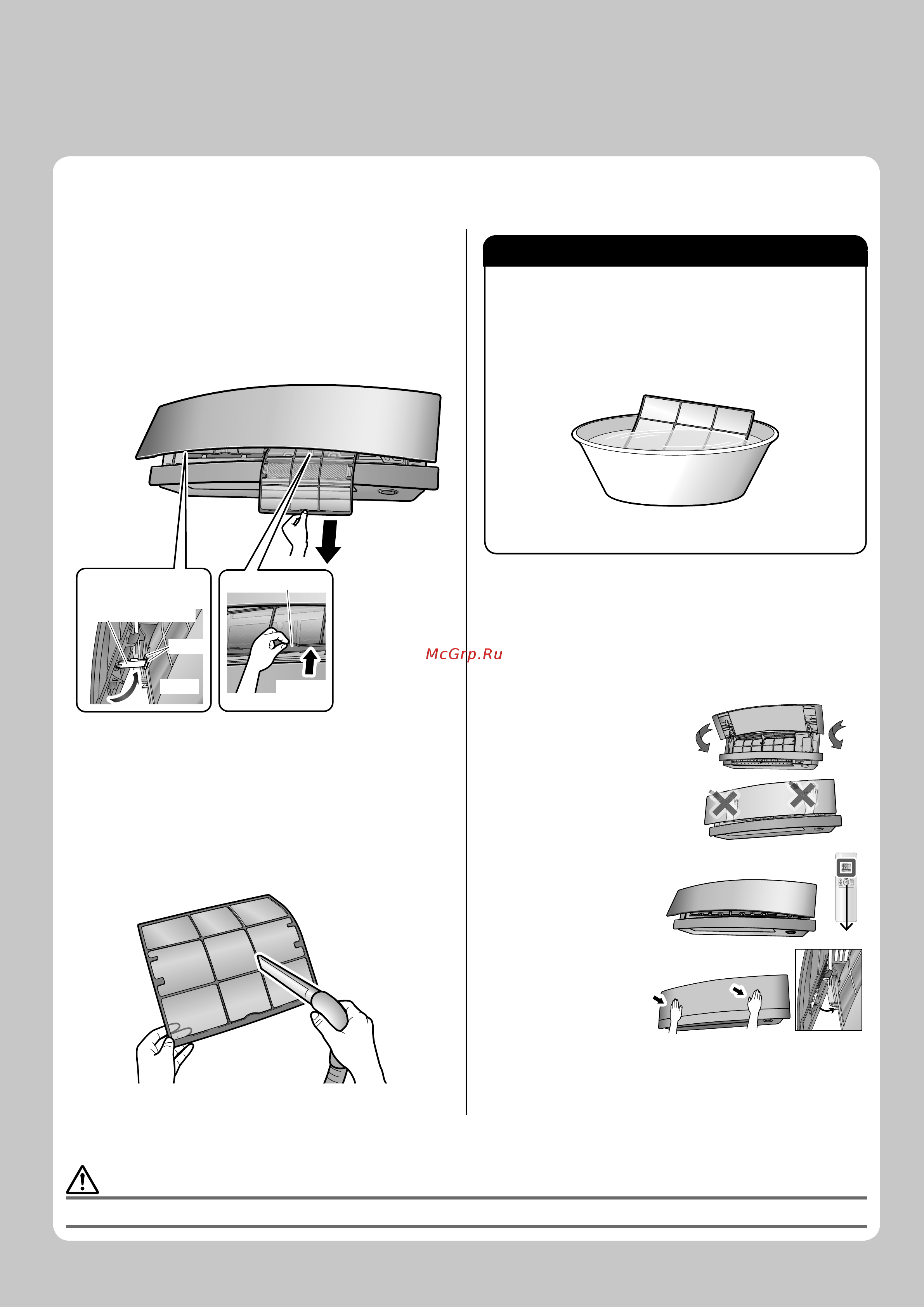

Care and Cleaning
CAUTION
• Do not touch the aluminium fi ns by bare hand at the time of dismounting or mounting the fi lter.
1. Pull out the air fi lters.
• Open the upper front panel.
• Set the panel support plate between the ribs on
the unit to fi x the upper front panel.
• Push the fi lter tab at the center of each air fi lter a
little upwards, then pull it down.
3) Pull down
2) Push
Filter tab
1) Pull
Panel support plate
Ribs
Back of the upper
front panel
2. Wash the air fi lters with
water or clean them with
vacuum cleaner.
• It is recommended to clean the air fi lters every
2 weeks.
If the dust does not come off easily
• Wash the air fi lters with neutral detergent thinned with
lukewarm water, then dry them up in the shade.
• Be sure to remove the Titanium apatite deodorizing fi lter
and the silver particle fi lter (Ag-ion fi lter). Refer to
“Titanium apatite deodorizing fi lter” and “Silver
particle fi lter (Ag-ion fi lter)” on the next page.
3. Set the fi lters as they were
and close the upper front
panel.
Air fi lter
1) Close the upper
panel.
2) Do NOT push on the
front panel to close
it.
3) Turn ON the unit by
remocon. Wait till the
panels are
completely open.
Then, turn OFF the
unit by remocon
again.
4) Once the front
panels close
completely, gently
push the upper front
panel to hook it into
position.
“click”
“click”
ON/OFF
“click”
1)
2)
3)
4)
