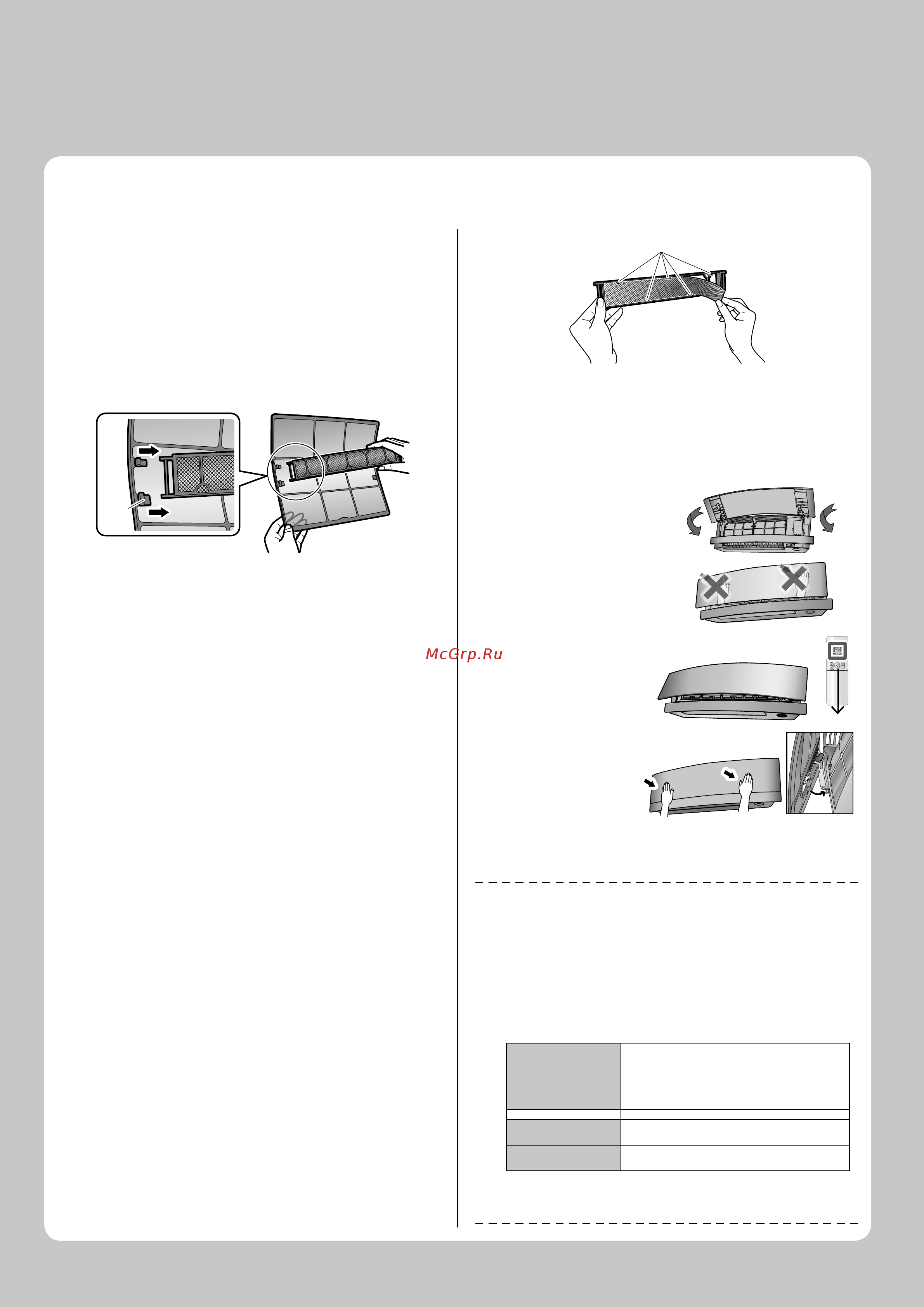

Care and Cleaning
1. Take off the Titanium
apatite deodorizing fi lter
and the silver particle fi lter
(Ag-ion fi lter).
•
Open the upper front panel and pull out the air fi lters.
• Hold the recessed parts of the frame and unhook
the 4 claws.
Claw
2.
Clean or replace the
Titanium apatite
deodorizing fi lter
and the
silver particle fi lter
(Ag-ion fi lter)
.
[Maintenance]
2-1 Vacuum dusts, and soak in
lukewarm water or water for about
10 to 15 minutes if dirt is heavy.
• Do not remove the fi lter from frame when
washing with water.
2-2 After washing, shake off remaining
water and dry in the shade.
•
Since the material is made out of polyester, do not
wring out the fi lter when removing water from it.
[Replacement]
Remove the fi lter from the fi lter
frame and attach a new one.
• Do not throw away the fi lter frame. Reuse the
fi lter frame when replacing the Titanium apatite
deodorizing fi lter and the silver particle fi lter
(Ag-ion fi lter).
• When attaching the fi lter, check that the fi lter is
set in the tabs.
Tab s
• Dispose of the old fi lter as non-fl ammable waste.
3.
Set the fi lters as they were and
close the upper front panel.
NOTE
• Operation with dirty fi lters:
– cannot deodorise the air,
– cannot clean the air,
– results in poor heating or cooling,
– may cause odour.
• Dispose of old fi lters as non-fl ammable waste.
• To order Titanium apatite deodorizing fi lter, contact the
service shop where you bought the air conditioner.
Item
Titanium apatite deodorizing fi lter
(without frame) 1 set
Part No. KAF970A46
Item Silver particle fi lter (with frame) 2 sets
Part No. KAF057A41
Titanium apatite deodorizing fi lter
Silver particle fi lter (Ag-ion fi lter)
1) Close the upper
panel.
2) Do NOT push on the
front panel to close
it.
3) Turn ON the unit by
remocon. Wait till the
panels are
completely open.
Then, turn OFF the
unit by remocon
again.
4) Once the front
panels close
completely, gently
push the upper front
panel to hook it into
position.
“click”
“click”
ON/OFF
“click”
1)
2)
3)
4)
Содержание
- Daikin room air conditioner 1
- Operation manual 1
- Comfort airflow outdoor unit quiet 2
- Feature 2
- For your comfort and energy for your comfort and energy saving saving 2
- Intelligent eye 2
- Other functions other functions 2
- Weekly timer 2
- Contents 3
- Caution 4
- Read the precautions in this manual carefully before operating the unit this appliance is filled with r32 4
- Safety precautions 4
- Warning 4
- Warning caution 4
- Be sure to follow the instructions below 5
- Consider nuisance to your neighbours from noises 5
- Electrical work 5
- For installation choose a place as described below 5
- Installation site 5
- Safety precautions 5
- System relocation 5
- To install the air conditioner in the following types of environments consult the dealer 5
- Display 6
- Indoor unit 6
- Names of parts 6
- Names of parts 7
- Open the upper front panel 7
- Outdoor unit 7
- Display lcd 8
- Fan setting button 8
- Front cover 8
- Model arc466a9 8
- Names of parts 8
- On off button 8
- Powerful button 8
- Remote controller 8
- Signal transmitter 8
- Temperature adjustment buttons 8
- Clock button 9
- Comfort sensor button 9
- Econo quiet button 9
- Lamp brightness setting button 9
- Mode selector button 9
- Names of parts 9
- Off timer button night set mode 9
- On timer button 9
- Open the front cover 9
- Select button 9
- Swing button 9
- Timer cancel button 9
- Choose a place from where the signals reach the unit 10
- Fix the holder to a wall a pillar or similar location with the screws procured locally 10
- Place the remote controller in the remote controller holder 10
- Preparation before operation 10
- Set 2 dry batteries aaa lr03 alkaline 10
- Set the front cover as before 10
- Slide the front cover to take it off 10
- Preparation before operation 11
- And select an operation mode 12
- Auto dry cool heat fan operation 12
- Auto dry cool heat fan operation 13
- To change the temperature setting 13
- Adjusting the airfl ow direction and rate 14
- To set the fl aps or louvres at desired position 14
- To start auto swing 14
- When the fl aps or louvres have reached the desired position 14
- Adjusting the airfl ow direction and rate 15
- Caution 15
- To adjust the airfl ow rate setting 15
- Comfort airflow intelligent eye operation 16
- Comfort airflow operation 16
- Intelligent eye operation 16
- Intelligent eye operation is useful for energy saving 16
- And select blank on the lcd 17
- And select the desired mode 17
- Comfort airflow intelligent eye operation 17
- To cancel operation 17
- To start operation 17
- Caution 18
- Comfort airflow intelligent eye operation 18
- Disappears from the lcd 19
- During operation 19
- In auto operation 19
- In cool and heat operation 19
- In dry operation 19
- In fan operation 19
- Notes on powerful operation 19
- Powerful operation 19
- Powerful operation ends in 20 minutes then the system automatically operates again with the previous settings which were used before powerful operation is displayed on the lcd 19
- To cancel powerful operation 19
- To start powerful operation 19
- Econo operation 20
- Econo outdoor unit quiet operation 20
- Example 20
- Outdoor unit quiet operation 20
- And select blank on the lcd 21
- And select the desired mode 21
- Econo outdoor unit quiet operation 21
- To cancel operation 21
- To start operation 21
- Off timer operation 22
- Point you like 22
- Until the time setting reaches the 22
- On timer operation 23
- Until the time setting reaches the point you like 23
- Setting example of the weekly timer 24
- Up to 4 timer settings can be saved for each day of the week it is convenient if the weekly timer is set according to the family s life style 24
- Weekly timer operation 24
- To select the desired day of the week and reservation number 25
- To select the desired mode 25
- Weekly timer operation 25
- Weekly timer operation 26
- To complete the setting 27
- To confi rm the day of the week to be copied 27
- To select the destination day of the week 27
- Weekly timer operation 27
- To exit confi rming mode 28
- To select the day of the week and the reservation number to be confi rmed 28
- Weekly timer operation 28
- While is displayed on the lcd 28
- Weekly timer operation 29
- Care and cleaning 30
- Caution 30
- Quick reference 30
- Care and cleaning 31
- Pull out the air fi lters 31
- Set the fi lters as they were and close the upper front panel 31
- Wash the air fi lters with water or clean them with vacuum cleaner 31
- Care and cleaning 32
- Close the upper panel 2 do not push on the front panel to close it 3 turn on the unit by remocon wait till the panels are completely open then turn off the unit by remocon again 4 once the front panels close completely gently push the upper front panel to hook it into position 32
- Take off the titanium apatite deodorizing fi lter and the silver particle fi lter ag ion fi lter 32
- Titanium apatite deodorizing fi lter and the silver particle fi lter ag ion fi lter 32
- After operation stops turn off the circuit breaker for the room air conditioner 33
- Care and cleaning 33
- Clean the air fi lters and set them again 33
- Operate the fan only for several hours on a fi ne day to dry out the inside 33
- Take out batteries from the remote controller 33
- A sound is heard 34
- Operation does not start soon 34
- The outdoor unit emits water or steam 34
- The fl aps do not start swinging immediately 34
- These cases are not troubles 34
- Troubleshooting 34
- An abnormal functioning happens during operation 35
- Cooling heating effect is poor 35
- Mist comes out of the indoor unit 35
- Multi monitor lamp is off 35
- Not trouble 35
- Operation stopped suddenly multi monitor lamp fl ashes 35
- The air conditioner does not operate 35
- Troubleshooting 35
- Upper and lower front panels do not open multi monitor lamp fl ashes 35
- Upper front panel does not close completely 35
- Heat operation cannot be selected even though the unit is heat pump model 36
- Hot air does not fl ow out soon after the start of heat operation 36
- If the upper and lower front panels are closed while the air conditioner is in operation the air conditioner will stop operating and the multi monitor lamp will blink 36
- Operation stopped suddenly multi monitor lamp is on 36
- Remote controller does not work properly 36
- The indoor unit gives out odour 36
- The on off timer does not operate according to the settings 36
- The outdoor fan rotates while the air conditioner is not in operation 36
- Troubleshooting 36
- Call the service shop immediately 37
- Disposal requirements 37
- Troubleshooting 37
- Warning 37
- Is held down for about 5 seconds a indication blinks on the temperature display section 38
- Repeatedly until a continuous beep is produced 38
- Troubleshooting 38
