Daikin FTXS50FV1B [7/34] Remote controller
![Daikin FTXS71FV1B [7/34] Remote controller](/views2/1720424/page7/bg7.png)
6

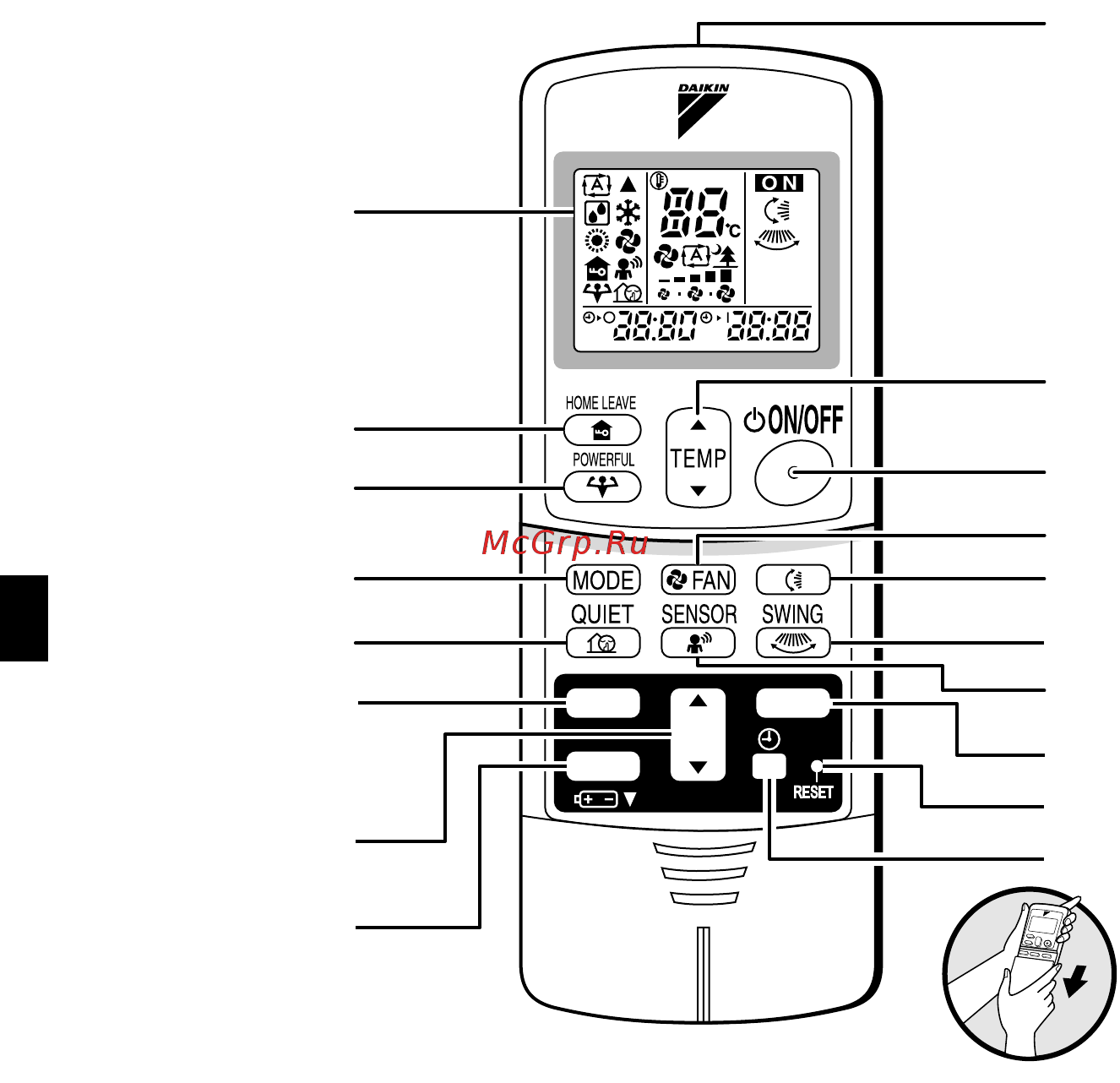

■ Remote Controller
1. Signal transmitter:
•
It sends signals to the indoor unit.
2. Display:
•
It displays the current settings.
(In this illustration, each section is shown with all
its displays ON for the purpose of explanation.)
3.
HOME LEAVE button:
HOME LEAVE operation (page 16.)
4.
POWERFUL button:
POWERFUL operation (page 14.)
5. TEMPERATURE adjustment buttons:
•
It changes the temperature setting.
6. ON/OFF button:
•
Press this button once to start operation.
Press once again to stop it.
7. MODE selector button:
•
It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN) (page 10.)
8. QUIET button:
OUTDOOR UNIT QUIET
operation
(page 15.)
9. FAN setting button:
• It selects the air flow rate setting.
10. SENSOR button:
INTELLIGENT EYE
operation (page 18.)
11. SWING button:
(page 12.)
•
Flap (Horizontal blade)
12. SWING button:
(page 12.)
•
Louver (Vertical blades)
13. ON TIMER button:
(page 21.)
14. OFF TIMER button:
(page 20.)
15. TIMER Setting button:
• It changes the time setting.
16. TIMER CANCEL button:
• It cancels the timer setting.
17. CLOCK button:
(page 9.)
18. RESET button:
• Restart the unit if it freezes.
• Use a thin object to push.
TIMER
ON
CANCEL
OFF
1
2
5
6
9
11
<
ARC433B70, 71
>
3
4
7
8
10
12
16
18
17
15
14
13
01_EN_3P190111-1C.fm Page 6 Friday, April 25, 2008 2:14 PM
