09

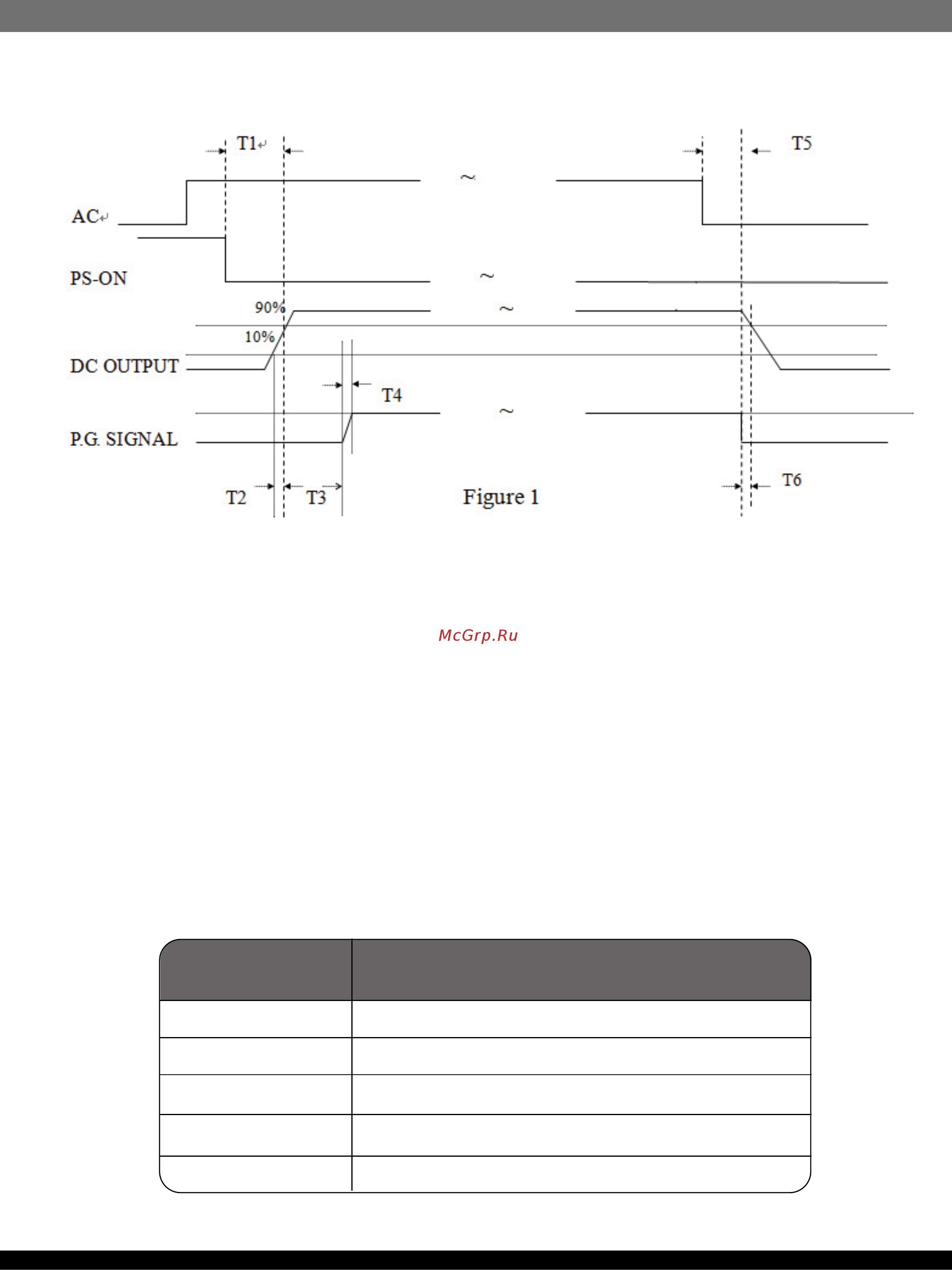

3.10 POWER GOOD SIGNAL TIME SEQUENCE
Measure condition :115V (FULL LOAD)
T1: PS_ON -- DC O/P within Spec.＜500mS
T2: RISETIME < 20mS
T3: Power Good Delay Time 100mS-500mS
T4: Power Good Rise-time＜10mS
T5: AC fail hold-up time＞16mS
T6: Power Fail Delay Time＞1mS
3.11 OUTPUT TRANSIENT RESPONSE
Expected output transient step sizes for each output. The transient load
slew rate is = 1.0 A/μs.
Table of DC Output Transient Step Sizes
ST70F-ESG：
Output
Max. step size
(% of rated output amps per Sec 3.1)
+12V
+5V
+3.3V
+5Vsb
-12V
10A (10000uF)
8A (6000uF)
8A (6000uF)
0.1A (350uF)
0.3A (6000uF)
(Adding external capactor)
