09
8. PRODUCT SAFETY
9. POWER GOOD SIGNAL
8.1 Safety Requirement
6.3.1 Sweep and resonance search for each of X,Y,Z, axis at the sweep.
TUV, UL/c-UL,CB
8.2 Leakage Current
The AC leakage current is less than 3.5mA when the power supply connect to
253Vac/50Hz .
8.3 Insulation Resistance
The insulation resistance should be not less than 30M ohm after applying of
500VDC for 1 minute.
8.4 Dielectric Voltage Withstand
The power supply shall withstand for 1 minute without breakdown the application
of a 60Hz 1500V AC voltage applied between both input line and chassis (20mA
DC cut-off current). Main transformer shall similarly withstand 3000Vac applied
between both primary and secondary windings for a minimum of one minute.
A TTL compatible signal for the purpose of initiating an orderly start-up procedure
under normal input operating conditions. During power up, this signal is asserted
( low ) until +5V is under regulation and AC reaches min. line specification range.
After all voltage are going appropriate level, the system may have a turn on delay
of 100mS, but no greater than 500mS. During power off the signal should go to low
level before +5V is out of regulation. The low level is 0 to 0.8V and high level is 4.75
to 5.25V. The " Power Good "signal can drive up to 6 standard TTL loads.
7. CONDUCTED EMI
FCC, CE
6.3 Vibration and Shock
Frequency
5-55-10 Hz
Amplitude
0.35 mm
Duration
30 minutes
10
Strider Essential Series
T1 : Turn on time ( 2 sec. Max.)
T2 : Rise time ( 20mS Max.)
T3 : Power good turn on delay time ( 100 < T3 < 500 mS )
T4 : Switch on time (0.5 sec. Max.)
T5 : Power good turn off delay time ( 1.0 mS Min.) PS-ON/OFF
T6 : Power hold-on time ( 16 mS Min.)
Power on-off cycle :
<
=
When the power supply is turned off for a minimum of 2.0 sec. and turn on again,
the power good signal will be asserted.
The MTBF of the power should be 100,000 hours min.
Applying 220Vac for 230V model.

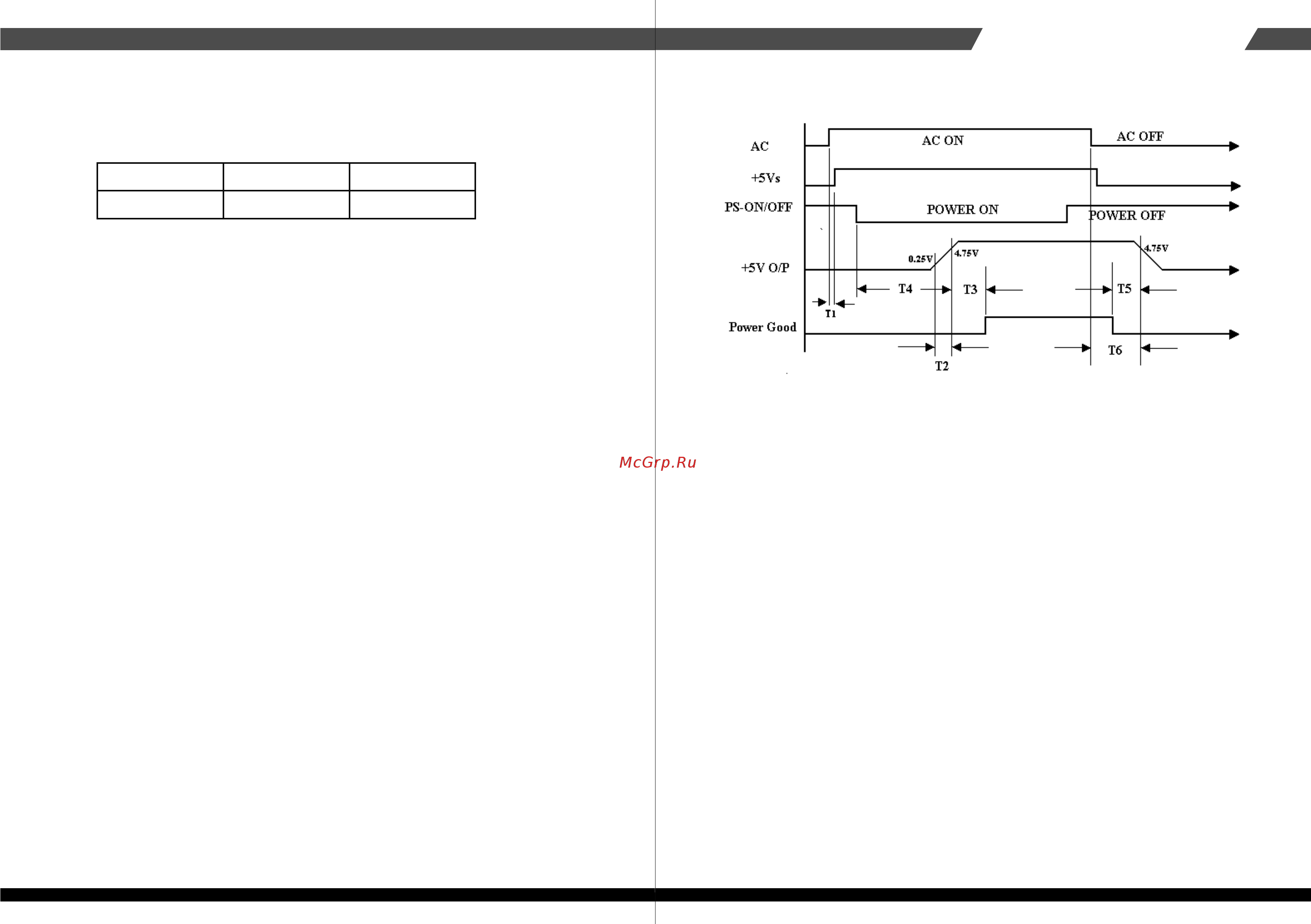

Time Diagram
10. MTBF
The product shall meet requirement for EN61000-3-2 & EN61000-3-3 :1995 standard
of class D, test at 230Vac 50Hz.
12. Harmonics
11. Burn-In
11.1 Input Voltage
Applying 75% loads for the power supply in 45 (+/-5) C chamber for 4 hours.
11.2 Test Condition
o
