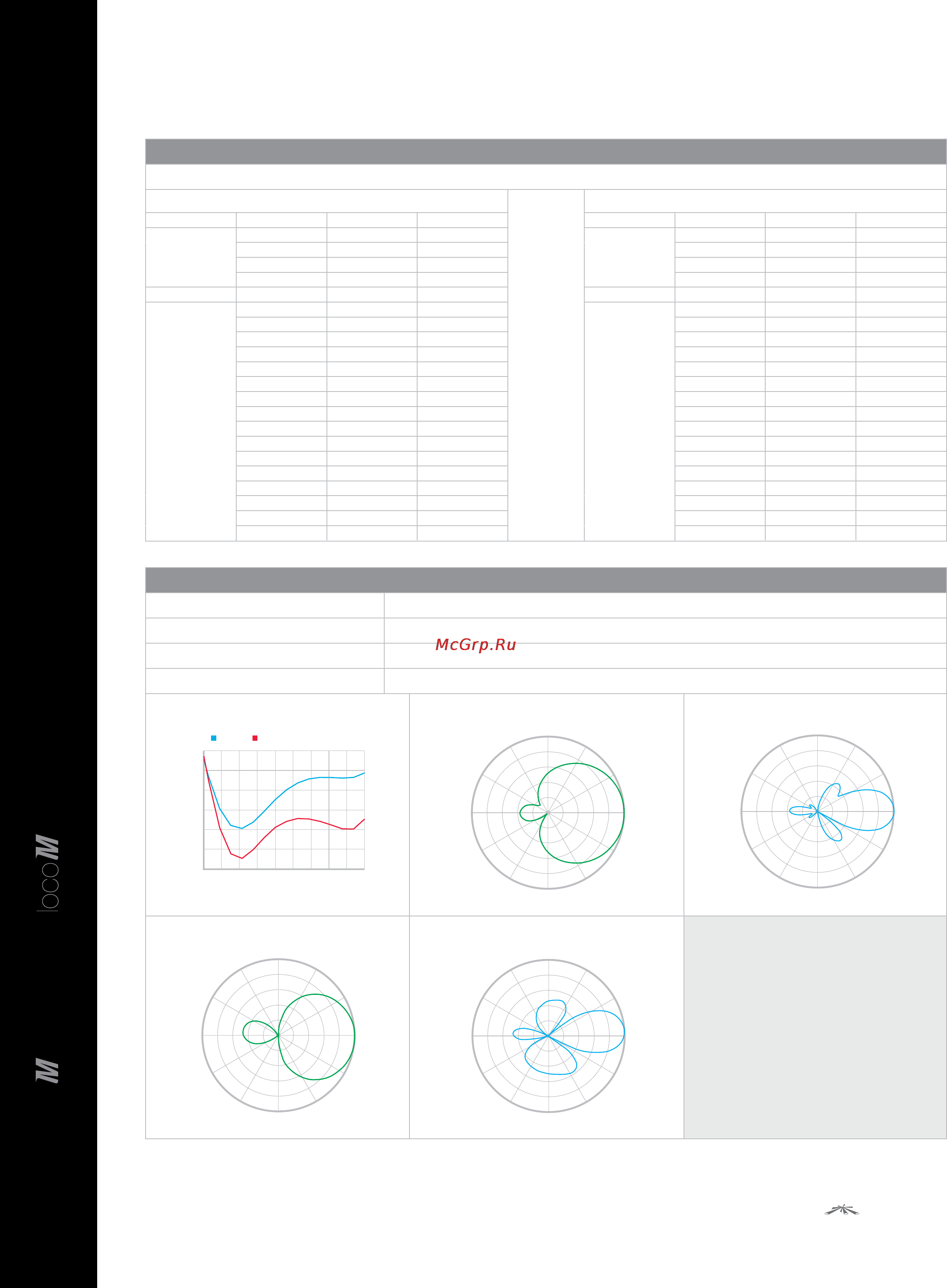

NanoStation M2 - Antenna Information
90
-90
120
-120
150
-150
180
60
-60
30
0
-15
-5dB
-15
-5dB
-15
-5dB
-15
-5dB
Vertical AzimuthReturn Loss
Horizontal Elevation
90
-90
120
-120
150
-150
180
60
-60
30
-30
0
Horizontal Azimuth
-15
2.36 2.4 2.44 2.48
dB
GHz
-14
90
-90
120
-120
150
-150
180
60
-60
30
-30 -30
0
Vertical Elevation
90
-90
120
-120
150
-150
180
60
-60
30
-30
0
09
Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reserved www.ubnt.com
Specifications (cont.) - NSM2
Gain 10.4-11.2 dBi
Cross-pol Isolation 23 dB minimum
Max VSWR 1.6:1
Beamwidth 55 deg. (H-pol) / 53 deg (V-pol) / 27 deg (Elevation)
NanoStation M2 - Operating Frequency 2412-2462 MHz
11b / g11n / AirMax
OUTPUT POWER: 28 dBm
DataRate Avg. TX
2.4 GHz TX POWER SPECIFICATIONS
Tolerance
1-24 Mbps 28 dBm +/- 2 dB
36 Mbps 26 dBm +/- 2 dB
48 Mbps 25 dBm +/- 2 dB
54 Mbps 24 dBm +/- 2 dB
MCS0 28 dBm +/- 2 dB
MCS1 28 dBm +/- 2 dB
MCS2 28 dBm +/- 2 dB
MCS3 28 dBm +/- 2 dB
MCS4 27 dBm +/- 2 dB
MCS5 25 dBm +/- 2 dB
MCS6 23 dBm +/- 2 dB
MCS7 22 dBm +/- 2 dB
MCS8 28 dBm +/- 2 dB
MCS9 28 dBm +/- 2 dB
MCS10 28 dBm +/- 2 dB
MCS11 28 dBm +/- 2 dB
MCS12 27 dBm +/- 2 dB
MCS13 25 dBm +/- 2 dB
MCS14 23 dBm +/- 2 dB
MCS15 22 dBm +/- 2 dB
11b / g11n / AirMax
DataRate Avg. TX
2.4 GHz RX POWER SPECIFICATIONS
Tolerance
1-24 Mbps -97 dBm min +/- 2 dB
36 Mbps -80 dBm +/- 2 dB
48 Mbps -77 dBm +/- 2 dB
54 Mbps -75 dBm +/- 2 dB
MCS0 -96 dBm +/- 2 dB
MCS1 -95 dBm +/- 2 dB
MCS2 -92 dBm +/- 2 dB
MCS3 -90 dBm +/- 2 dB
MCS4 -86 dBm +/- 2 dB
MCS5 -83 dBm +/- 2 dB
MCS6 -77 dBm +/- 2 dB
MCS7 -74 dBm +/- 2 dB
MCS8 -95 dBm +/- 2 dB
MCS9 -93 dBm +/- 2 dB
MCS10 -90 dBm +/- 2 dB
MCS11 -87 dBm +/- 2 dB
MCS12 -84 dBm +/- 2 dB
MCS13 -79 dBm +/- 2 dB
MCS14 -78 dBm +/- 2 dB
MCS15 -75 dBm +/- 2 dB
V-pol H-pol
