Grundig 65 FLX 9490 SL [85/100] Operation with common interfac
![Grundig 65 FLX 9490 SL [85/100] Operation with common interfac](/views2/1072182/page85/bg55.png)
85
ENGLISH
OPERATION WITH COMMON INTERFACE
---------------------
What is common interface?
7
Common Interface (CI) is an interface for DVB
receivers.
7
Encrypted channels can only be viewed with a
CA module suitable for the encryption system
and the corresponding smart card.
7
The television set is equipped with a Common
Interface slot into which CA modules from vari-
ous providers can be inserted.
7
You can insert the provider’s smart card into
the CA module in order to enable the en-
crypted channels you want to see.

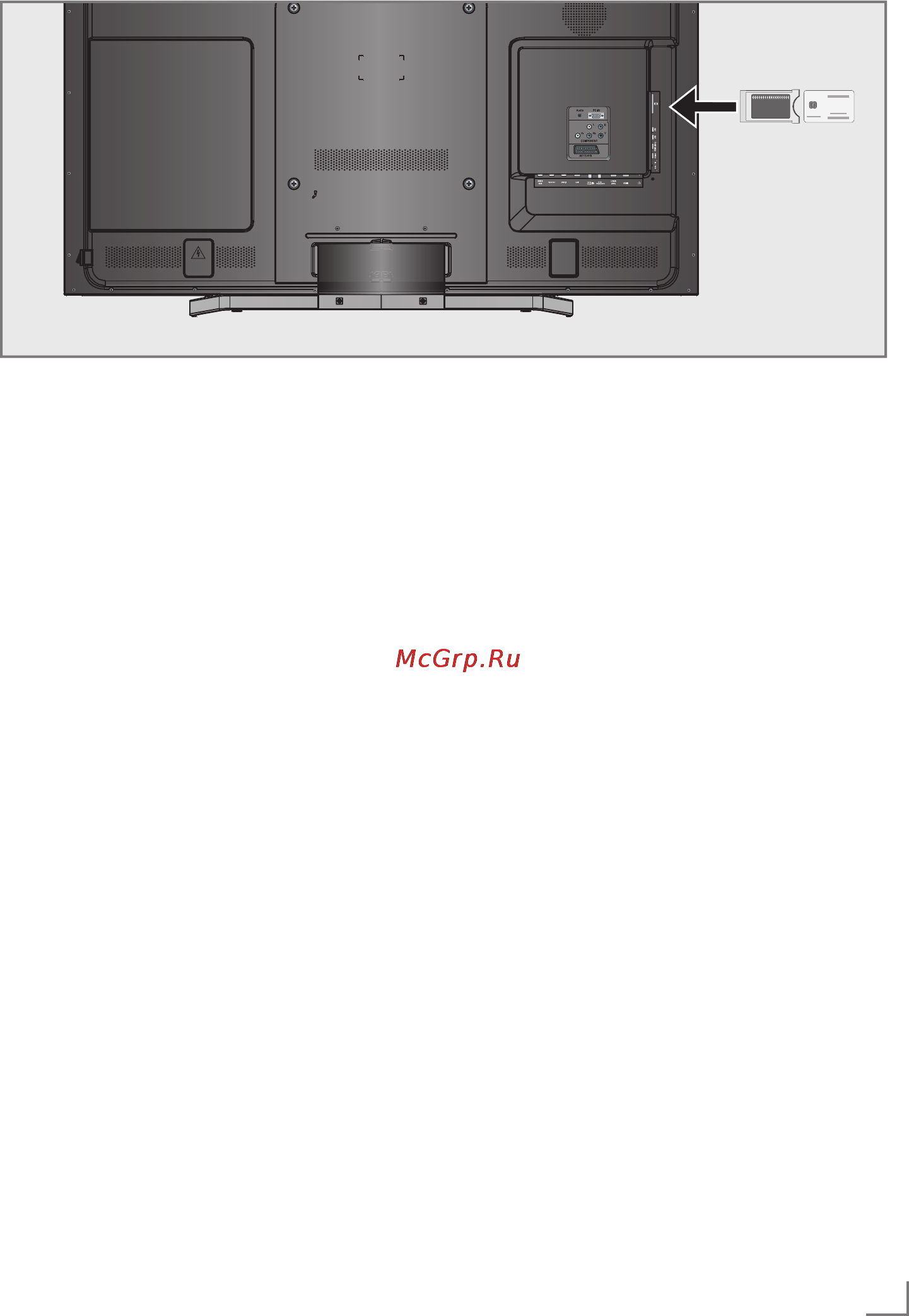

Inserting the CA module
Note:
7
Switch off the device before inserting the CA
module in the »CI1« or »CI2« slot.
1 Insert the smart card into the CA module.
2 Insert the CA module with the smart card
into the »CI1« or »CI2« slot on the televi-
sion.
Note:
7
To see which CA module is in the Common
Interface slot, go to the »CA - Module« sub-
menu.
7
When you insert a CA module into the CI
slot on the television for the first time, wait
a few moments until the television has regis-
tered the CA module.
Access control for CA module
and smart cards
1 Open the menu with »MENU«.
2 Activate the menu item »Settings« with
»OK«.
3 Select the menu item »Source Setup« with
»
>
« or »
<
« and press »OK« to confirm.
– »Source Setup« menu is displayed.
4 Select the line »Advanced« with »
V
« or
»
Λ
« and press »OK« to confirm.
5 Select the line »CA–Module« with »
V
« or
»
Λ
« and press »OK« to confirm.
Notes:
7
This menu provides operating instructions
and – after you enter your PIN code – ac-
cess to channels of the PAY-TV provider.
7
The remaining settings are described in the
manuals for your CA module and smart
card.
7
The CA modul is not supported in some
countries and regions. Please consult your
authorised dealer.
6 Press »EXIT« to end the setting.
