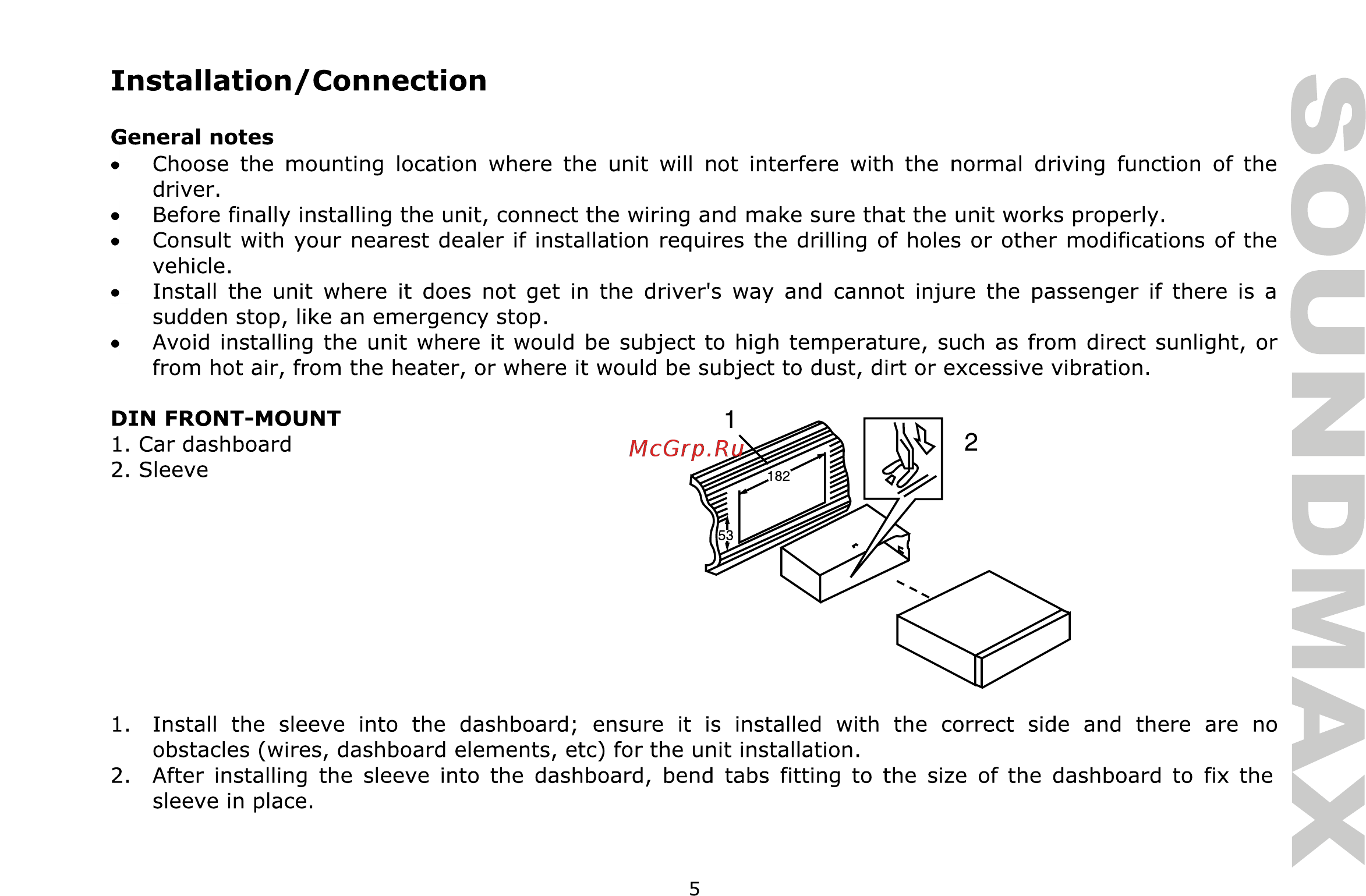

Installation Connection General notes SOUNDMAX Choose the mounting location where the unit will not interfere with the normal driving function of the driver Before finally installing the unit connect the wiring and make sure that the unit works properly Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle Install the unit where it does not get in the driver s way and cannot injure the passenger if there is a sudden stop like an emergency stop Avoid installing the unit where it would be subject to high temperature such as from direct sunlight or from hot air from the heater or where it would be subject to dust dirt or excessive vibration DIN FRONT MOUNT 1 Car dashboard 2 Sleeve 1 Install the sleeve into the dashboard ensure it is installed with the correct side and there are no obstacles wires dashboard elements etc for the unit installation 2 After installing the sleeve into the dashboard bend tabs fitting to the size of the dashboard to fix the sleeve in place 5
