Ubiquiti Networks Inc., 91 E. Tasman Dr., San Jose, CA 95134 www.ubnt.com

MIMO TDMA Protocol System

Revolutionary Cost/Performance Carrier Class 3GHz MIMO

BaseStation Antenna

AirMax 5GHz Carrier Class Sector 2x2 MIMO Antennas

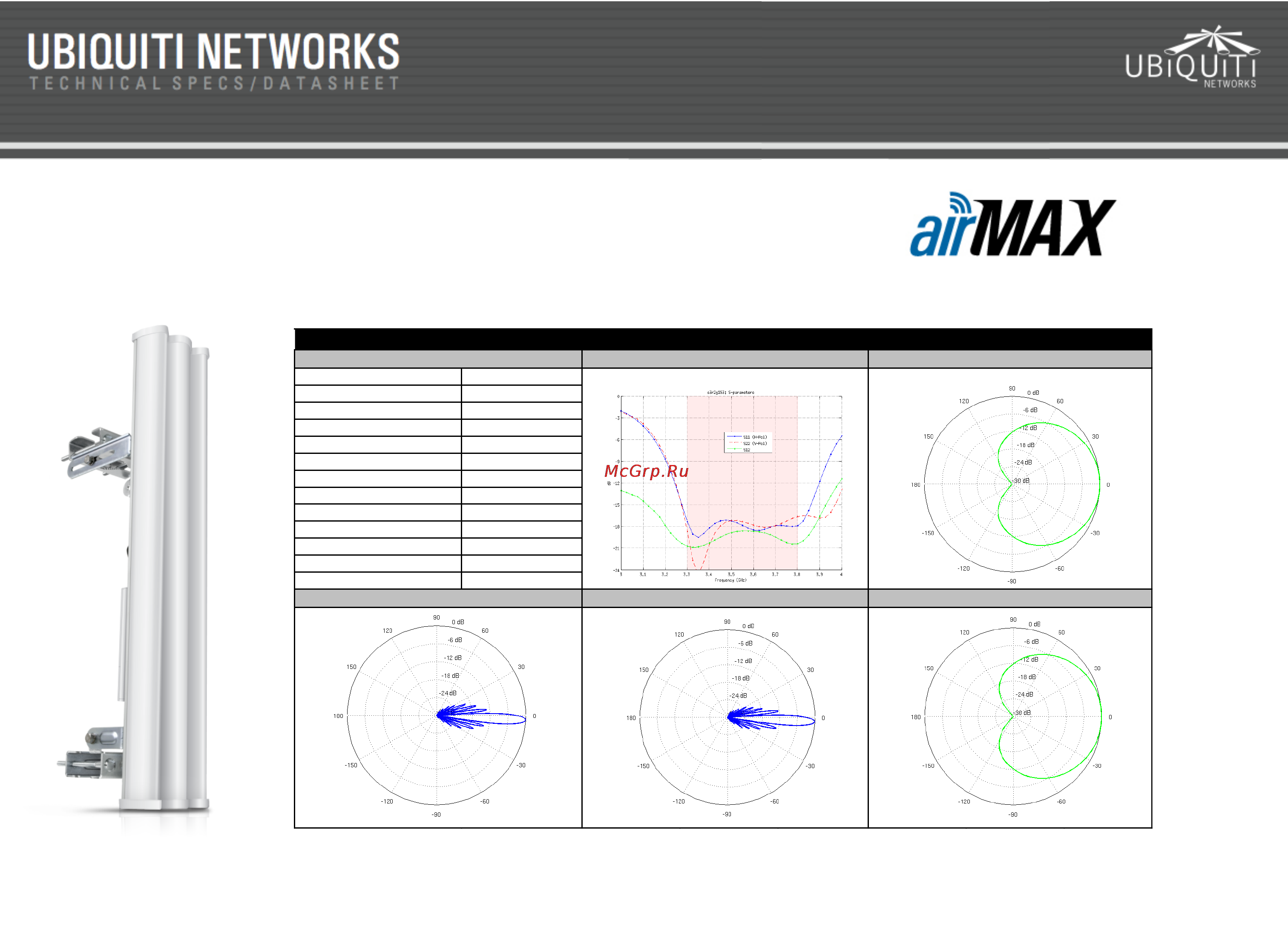

AMS 3G-120-18: 3 GHz AirMax 2x2 MIMO Basestation Sector Antenna

Hi-Gain Airmax Sector 3G-120-18

Frequency Range 3.3-3.8 GHz

Gain 17.3-18.2 dBi

Polarization Dual Linear

Cross-pol Isolation 28dB min.

Max VSWR 1.5:1

Hpol Beamwidth (6dB) 118 deg.

Vpol Beamwidth (6dB) 121 deg.

Elevation Beamwidth 6 deg.

Electrical Downtilt 2 deg.

ETSI Specification EN 302 326 DN2

Dimensions 700x145x93mm

Weight 5.9 kg

Windloading 160 mph

V-Pol Elevation

H-Pol Elevation

H-Pol Azimuth

Antenna Characteristics

Return Loss

V-Pol Azimuth
