Installation Overview
The installation process differs depending on if you are
mounting the camera on a pole or on a wall. Follow the
instructions for the installation that you are performing.
Below is an overview of the steps:
• Connect one end of the Ethernet cable to the camera.
• Insert a microSD card (optional).
• Perform the camera mounting steps (Wall Mount or
Pole Mount).
• Connect the other end of Ethernet cable to the PoE Adapter
or a Ubiquiti Networks TOUGHSwitch
™
.
Connect Ethernet to the UniFi Video Camera

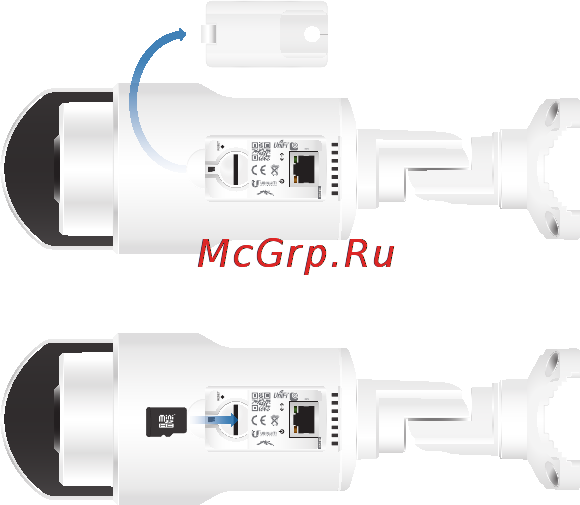

1. Press the latch to open the Port Cover on the bottom of
the camera.
24V 0.5A POE
M/N: UVC
Video Camera
2. (Optional) Insert a microSD card into the microSD Card Slot.
24V 0.5A POE
M/N: UVC
Video Camera
