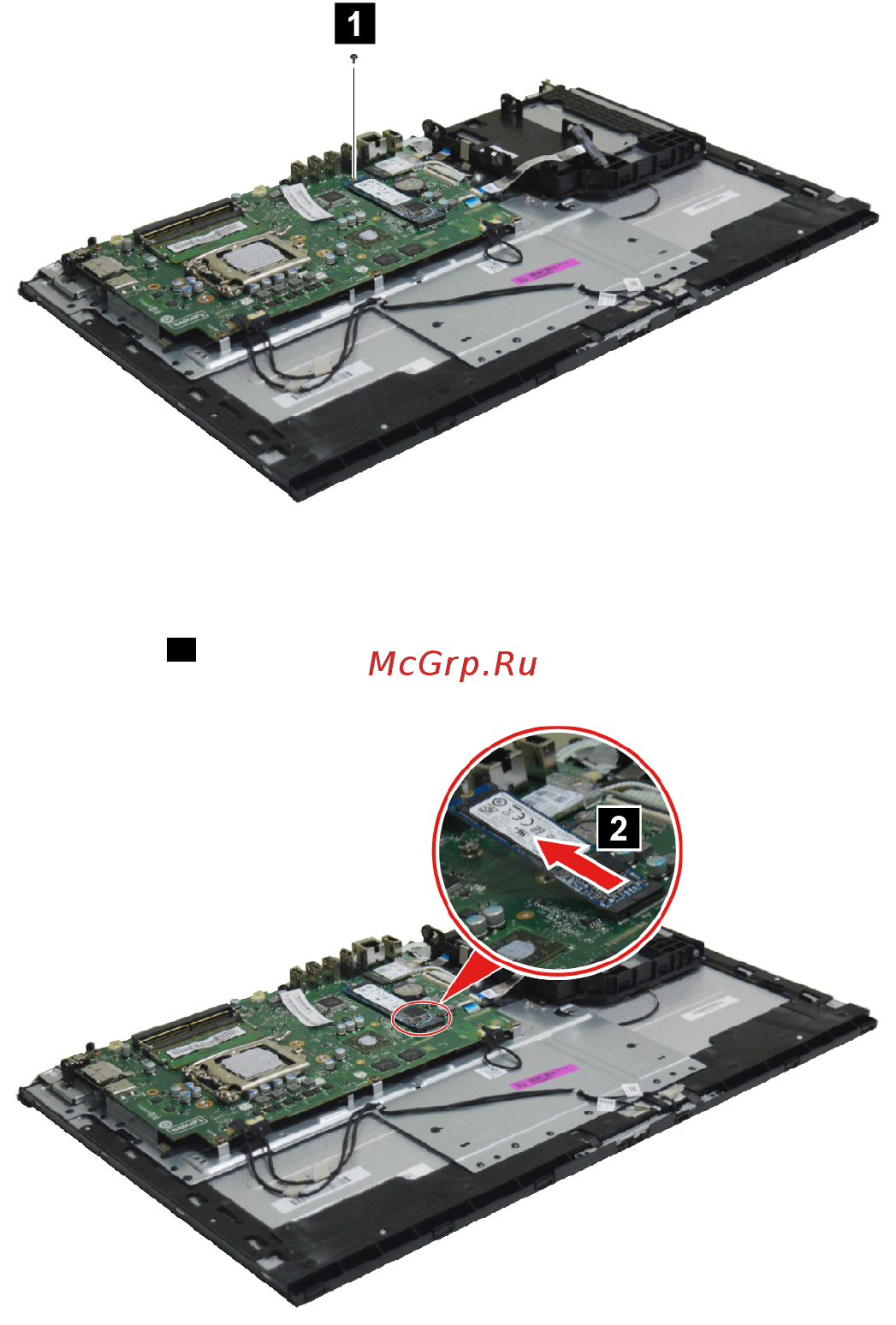

Figure 30. Removing 1 screw

2. Remove the M.2 solid-state drive 2 .

Figure 31. Removing the M.2 solid-state drive

What to do next:

• To work with another piece of hardware, go to the appropriate section.

• To complete the installation or replacement, go to “Completing the parts replacement” on page 48.

Replacing the microprocessor (for selected models)

Attention: Do not open your computer or attempt any repair before reading and understanding the Chapter

1 “Read this first: Important safety information” on page 1.

Make sure the following FRUs (or CRUs) have been removed.

“Removing the computer stand base” on page 27

“Removing the rear cover” on page 29

“Replacing the speakers” on page 30

“Replacing the middle frame” on page 32

“Replacing the fan” on page 33

“Replacing the system board frame” on page 34

Chapter 7. Installing or replacing hardware 41
