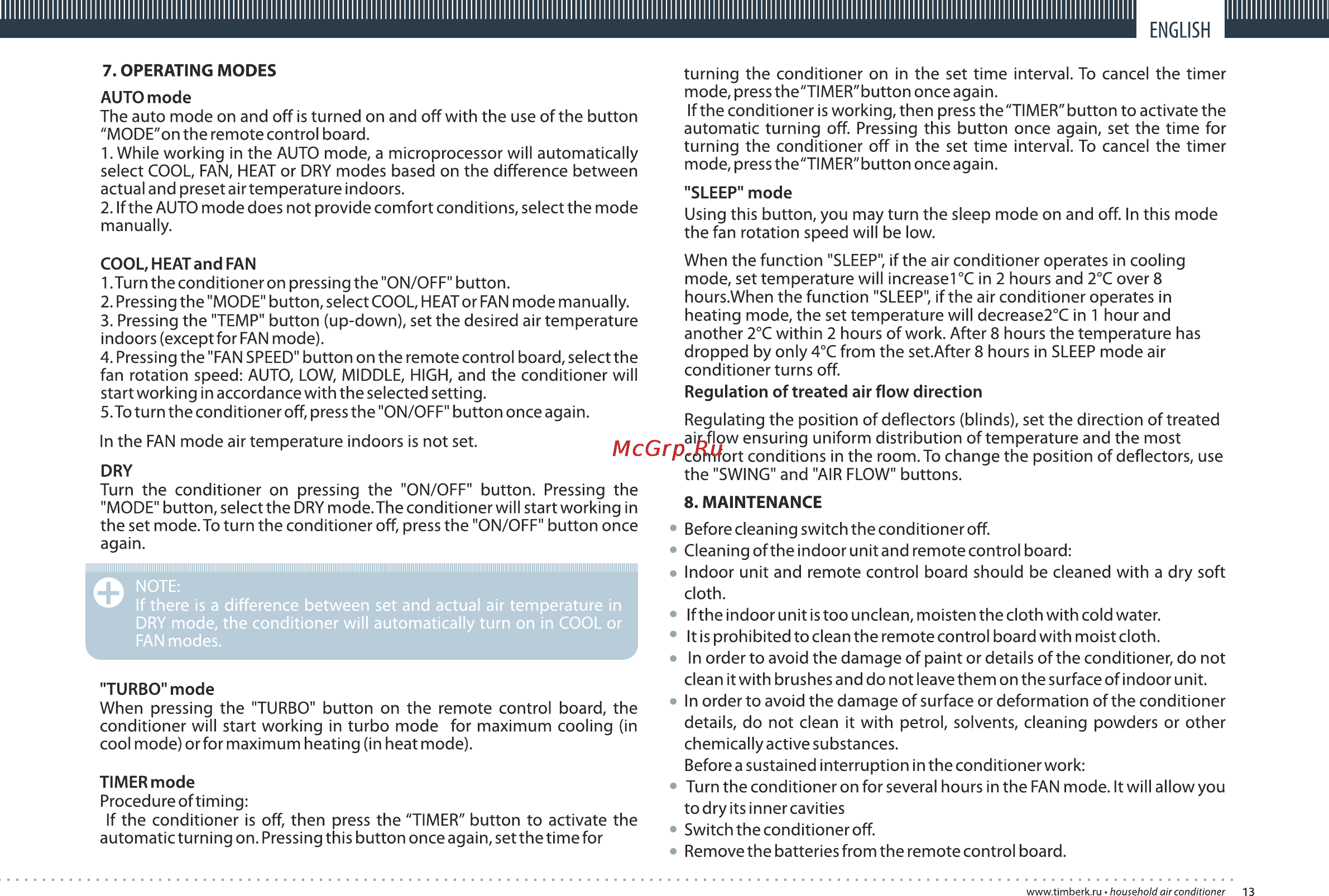

ENGLISH 7 OPERATING MODES AUTO mode The auto mode on and off is turned on and off with the use of the button MODE on the remote control board 1 While working in the AUTO mode a microprocessor will automatically select COOL FAN HEAT or DRY modes based on the difference between actual and preset air temperature indoors 2 If the AUTO mode does not provide comfort conditions select the mode manually COOL HEATand FAN 1 Turn the conditioner on pressing the ON OFF button 2 Pressing the MODE button select COOL HEAT or FAN mode manually 3 Pressing the TEMP button up down set the desired air temperature indoors except for FAN mode 4 Pressing the FAN SPEED button on the remote control board select the fan rotation speed AUTO LOW MIDDLE HIGH and the conditioner will start working in accordance with the selected setting 5 To turn the conditioner off press the ON OFF button once again In the FAN mode air temperature indoors is not set DRY Turn the conditioner on pressing the ON OFF button Pressing the MODE button select the DRY mode The conditioner will start working in the set mode To turn the conditioner off press the ON OFF button once again NOTE If there is a difference between set and actual air temperature in DRY mode the conditioner will automatically turn on in COOL or FAN modes O TURBO mode When pressing the TURBO button on the remote control board the conditioner will start working in turbo mode for maximum cooling in cool mode orfor maximum heating in heat mode TIMER mode Procedure oftiming If the conditioner is off then press the TIMER button to activate the automatic turning on Pressing this button once again set the time for llllllllllllllllllllll turning the conditioner on in the set time interval To cancel the timer mode press the TIMER button once again If the conditioner is working then press the TIMER button to activate the automatic turning off Pressing this button once again set the time for turning the conditioner off in the set time interval To cancel the timer mode press the TIMER button once again SLEEP mode Using this button you may turn the sleep mode on and off In this mode the fan rotation speed will be low When the function SLEEP if the air conditioner operates in cooling mode set temperature will increasel C in 2 hours and 2 C over 8 hours When the function SLEEP if the airconditioner operates in heating mode the set temperature will decrease2 C in 1 hour and another 2 C within 2 hours of work After 8 hours the temperature has dropped by only 4 C from the set After 8 hours in SLEEP mode air conditioner turns off Regulation of treated air flow direction Regulating the position of deflectors blinds set the direction of treated airflow ensuring uniform distribution of temperature and the most comfort conditions in the room To change the position of deflectors use the SWING and AIR FLOW buttons 8 MAINTENANCE Before cleaning switch the conditioner off Cleaning ofthe indoor unit and remote control board Indoor unit and remote control board should be cleaned with a dry soft cloth If the indoor unit is too unclean moisten the cloth with cold water It is prohibited to clean the remote control board with moist cloth In order to avoid the damage of paint or details ofthe conditioner do not clean it with brushes and do not leave them on the surface of indoor unit In order to avoid the damage of surface or deformation ofthe conditioner details do not clean it with petrol solvents cleaning powders or other chemically active substances Before a sustained interruption in the conditioner work Turn the conditioner on for several hours in the FAN mode It will allow you todryitsinner cavities Switch the conditioner off Remove the batteries from the remote control board www timberk ru household airconditioner 13
