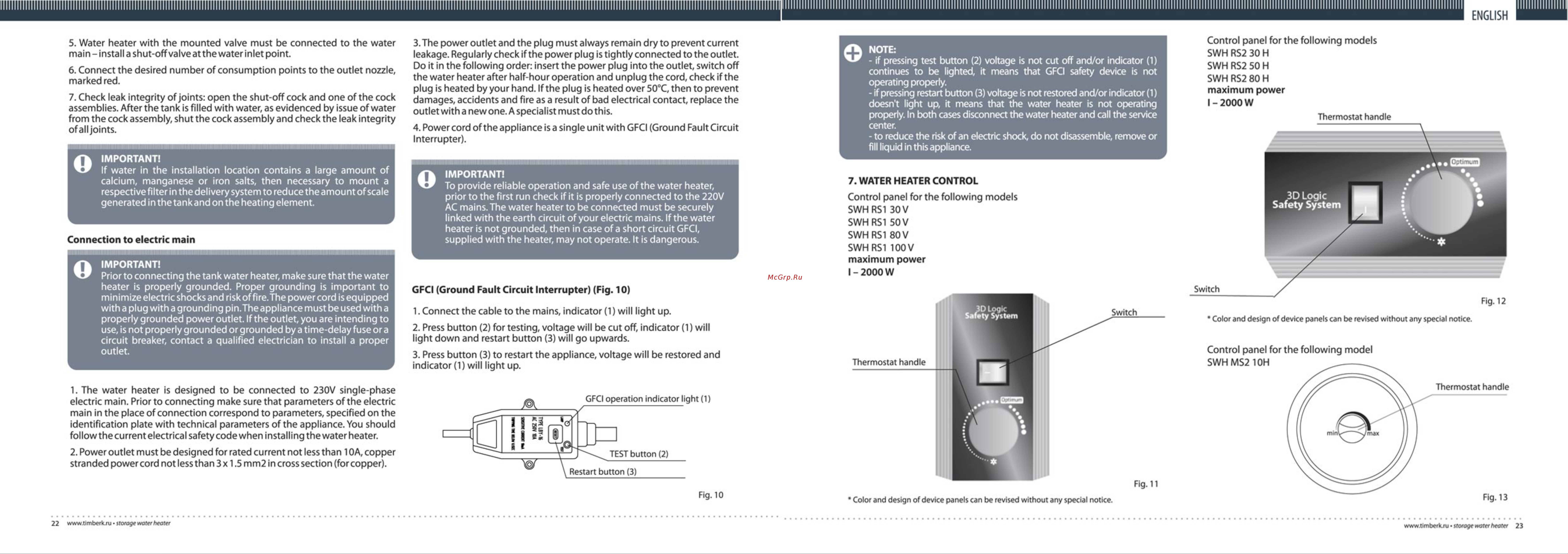

lllllllllllllll ENGLISH 5 Water heater with the mounted valve must be connected to the water main install a shut offvalve at the water inlet point 6 Connect the desired number of consumption points to the outlet nozzle marked red 7 Check leak integrity of joints open the shut off cock and one of the cock assemblies After the tank is filled with water as evidenced by issue of water from the cock assembly shut the cock assembly and check the leak integrity ofalljoints O IMPORTANT If water in the installation location contains a large amount of calcium manganese or iron salts then necessary to mount a respective filter in the delivery system to reduce the amount of scale generated in the tankand on the heating element Connection to electric main O IMPORTANT Prior to connecting the tank water heater make sure that the water heater is properly grounded Proper grounding is important to minimize electric shocks and risk of fire The power cord is equipped with a plug with a grounding pin The appliance must be used with a properly grounded power outlet If the outlet you are intending to use is not properly grounded or grounded by a time delay fuse or a circuit breaker contact a qualified electrician to install a proper outlet 3 The power outlet and the plug must always remain dry to prevent current leakage Regularly check if the power plug is tightly connected to the outlet Do it in the following order insert the power plug into the outlet switch off the water heater after half hour operation and unplug the cord check if the plug is heated by your hand If the plug is heated over 50 C then to prevent damages accidents and fire as a result of bad electrical contact replace the outlet with a new one A specialist must do this 4 Power cord of the appliance is a single unit with GFCI Ground Fault Circuit Interrupter IMPORTANT To provide reliable operation and safe use of the water heater prior to the first run check if it is properly connected to the 220V AC mains The water heater to be connected must be securely linked with the earth circuit of your electric mains If the water heater is not grounded then in case of a short circuit GFCI supplied with the heater may not operate It is dangerous O NOTE if pressing test button 2 voltage is not cut off and or indicator 1 continues to be lighted it means that GFCI safety device is not operating properly if pressing restart button 3 voltage is not restored and or indicator 1 doesn t light up it means that the water heater is not operating properly In both cases disconnect the water heater and call the service center to reduce the risk of an electric shock do not disassemble remove or fill liquid in this appliance Control panel for the following models SWH RS2 30 H SWH RS2 50 H SWH RS2 80 H maximum power I 2000W 7 WATER HEATER CONTROL Control panel for the following models SWH RS1 30 V SWH RS1 50 V SWH RS 1 80 V SWH RS1 100 V maximum power I 2000 W GFCI Ground Fault Circuit Interrupter Fig 10 1 Connect the cable to the mains indicator 1 will light up Switch Color and design of device panels can be revised without any special notice 2 Press button 2 for testing voltage will be cut off indicator 1 will light down and restart button 3 will go upwards 3 Press button 3 to restart the appliance voltage will be restored and indicator 1 will light up Control panel for the following model SWH MS2 10H Thermostat handle 1 The water heater is designed to be connected to 230V single phase electric main Prior to connecting make sure that parameters of the electric main in the place of connection correspond to parameters specified on the identification plate with technical parameters of the appliance You should follow the current electrical safety code when installing the water heater 2 Power outlet must be designed for rated current not less than 10A copper stranded power cord not less than 3 x 1 5 mm2 in cross section for copper Fig 11 Color and design of device panels can be revised without any special notice 22 www timberk ru storage water heater www timberk fu storage water heater 23
