Инструкция по эксплуатации Страница: 77

Asus PRO P1440FA-FA2583R [77/104] A remove the compartment cover

Notebook PC E-Manual

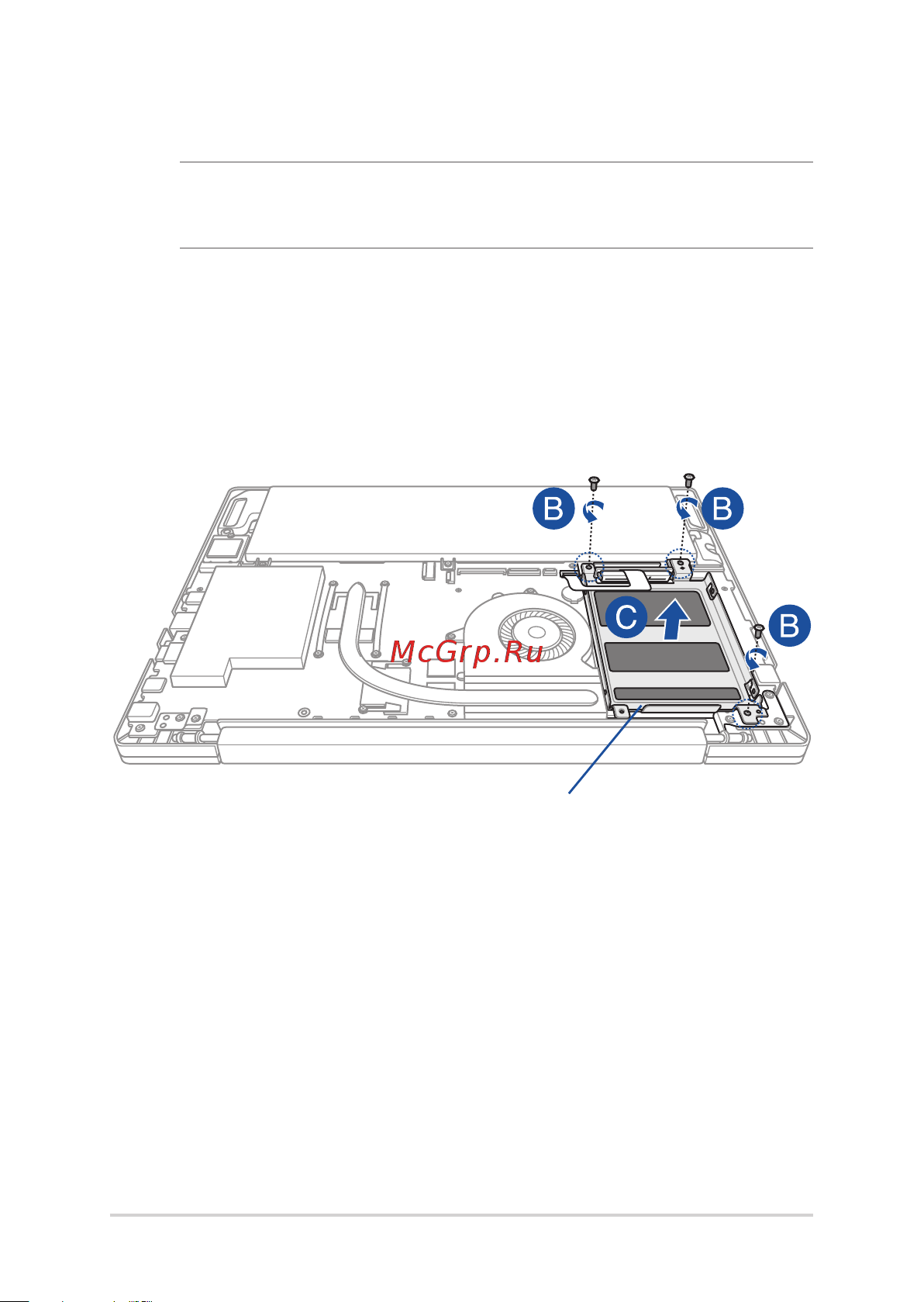

A. Remove the compartment cover.

NOTE: For more details, refer to the Removing the compartment cover

section in this manual.

B. Remove the screws securing the HDD bay to the compartment.

C. Remove the HDD bay.

HDD bay
