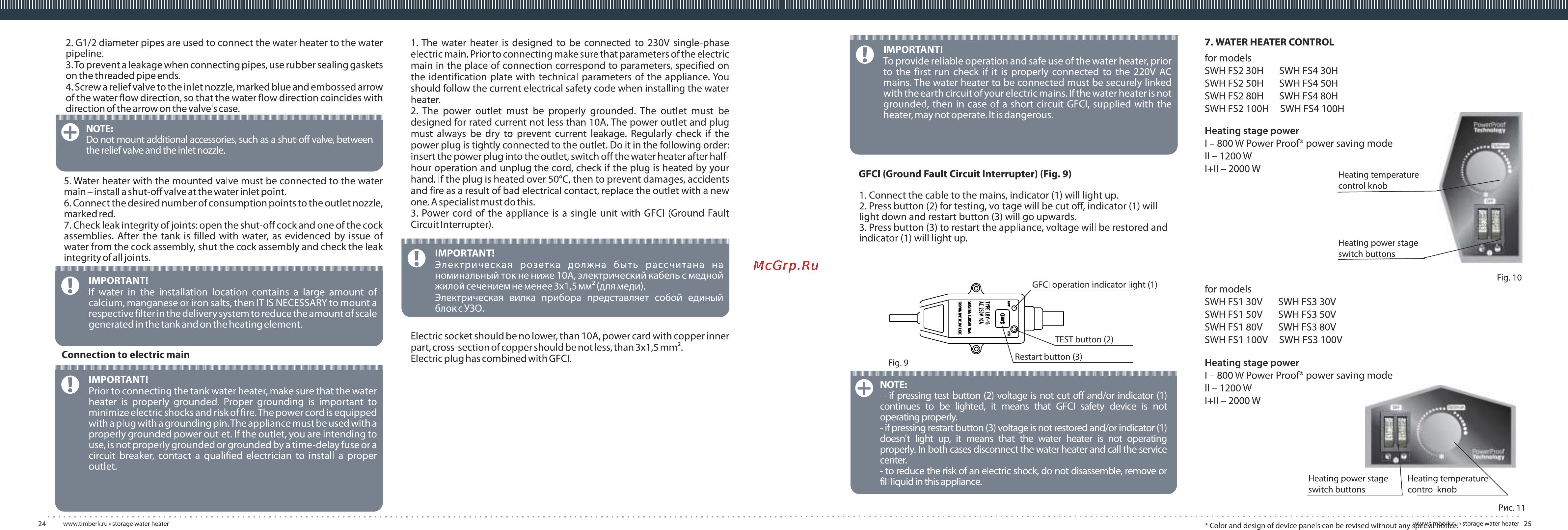

2 G1 2 diameter pipes are used to connect the water heater to the water pipeline 3 To prevent a leakage when connecting pipes use rubber sealing gaskets onthethreaded pipeends 4 Screw a relief valve totheinlet nozzle marked blue and embossed arrow of the water flow direction so that the water flow direction coincides with direction of the arrow on the valve s case 1 The water heater is designed to be connected to 230V single phase electric main Prior to connecting make sure that parameters of the electric main in the place of connection correspond to parameters specified on the identification plate with technical parameters of the appliance You should follow the current electrical safety code when installing the water heater 2 The power outlet must be properly grounded The outlet must be n iiiiiiiiiiiiiiiiin iiiiiiiiiiiiiiiiin n iiiiiiiiiiiiiiiiin n iiiiiiiiiiiiiiiiin iiiiiiiiiiiiiiiiin n iiiiiiiiiiiiiiiiin n iiiiiiiiiiiiiiiiin n iiiiiiiiiiiiiin n iiiiiiiiiiiiiiiiin n iiiiiiiiiiiiiiiiin n iiiiiiiiiiiiiin n iiiiiiiiiiiiiiiiin n iiiiiiiiiiiin designed for rated current not less than 10A The power outlet and plug ONOTE must always be dry to prevent current leakage Regularly check if the Do not mount additional accessories such as a shut off valve between power plug is tightly connected to the outlet Do it in the following order the relief valve and the inlet nozzle insert the power plug into the outlet switch off the water heater after half hour operation and unplug the cord check if the plug is heated by your hand If the plug is heated over 50 C then to prevent damages accidents 5 Water heater with the mounted valve must be connected to the water and fire as a result of bad electrical contact replace the outlet with a new main install a shut off valve atthe water inlet point one A specialist must do this 6 Connect the desired number of consumption points to the outlet nozzle 3 Power cord of the appliance is a single unit with GFCI Ground Fault marked red Circuit Interrupter 7 Check leak integrity of joints open the shut off cock and one of the cock assemblies After the tank is filled with water as evidenced by issue of i n I n I I n I n I n in n I n I n in n I n I n in n IIIIII water from the cock assembly shut the cock assembly and check the leak О IMPORTANT integrity of all joints Электрическая розетка iiдолжна быть iiiiiiiiiiiiiin ii iiiiiiiiiiiiiin ii iiiiiiiiiiiiiiiiin ii iiiiiiiiiiiiiiiiin ii iiiiiiiiiiiiiin ii iiiiiiiiiiiiiiiiin ii iiiiiiiiiiiiiiiiin ii iiiiiiiiiiiiiiiiin iiiiiiiiiiiiiiiiin ii iiiiiiiiiiiiiiiiin ii iiiiiiiiiiiiiiiiin iiiiiiiiiiiiiiiiin iiiiiiiiiiiiiiiiin ii рассчитана на номинальный ток не ниже 10А электрический кабель с медной IMPORTANT жилой сечением не менее 3x1 5 мм2 для меди If water in the installation location contains a large amount of Электрическая вилка прибора представляет собой единый calcium manganese or iron salts then IT IS NECESSARY to mount a блок с УЗО respective filter in the delivery system to reduce the amount of scale generated in the tank and on the heating element Electric socket should be no lower than 10A power card with copper inner part cross section of copper should be not less than 3x1 5 mm2 Connection to electric main Electric plug has combined with GFCI iliilin ll Iiiiiiiiiiiiiiiiin ll Iiiiiiiiiiiiiin ll Iiiiiiiiiiiiiiiiin ll Iiiiiiiiiiiiiiiiin ll Iiiiiiiiiiiiiin ll Iiiiiiiiiiiiiiiiin ll Iiiiiiiiiiiiiiiiin ll Iiiiiiiiiiiiiiiiin Iiiiiiiiiiiiiiiiin ll Iiiiiiiiiiiiiiiiin ll Iiiiiiiiiiiiiiiiin Iiiiiiiiiiiiiiiiin ll liilin 7 WATER HEATER CONTROL O IMPORTANT To provide reliable operation and safe use of the water heater prior to the first run check if it is properly connected to the 220V AC mains The water heater to be connected must be securely linked with the earth circuit of your electric mains If the water heater is not grounded then in case of a short circuit GFCI supplied with the heater may not operate It is dangerous O IMPORTANT Prior to connecting the tank water heater make sure that the water heater is properly grounded Proper grounding is important to minimize electric shocks and risk of fire The power cord is equipped with a plug with a grounding pin The appliance must be used with a properly grounded power outlet If the outlet you are intending to use is not properly grounded or grounded by a time delay fuse or a circuit breaker contact a qualified electrician to install a proper outlet SWH FS2 ЗОН SWH FS4 ЗОН SWH FS2 50H SWH FS4 50H SWH FS2 80H SWH FS4 80H SWH FS2 100H SWH FS4100H Heating stage power I 800 W Power Proof power saving mode II 1200 W GFCI Ground Fault Circuit Interrupter Fig 9 I II 2000W Heating temperature control knob 1 Connect the cable to the mains indicator 1 will light up 2 Press button 2 for testing voltage will be cut off indicator 1 will light down and restart button 3 will go upwards 3 Press button 3 to restart the appliance voltage will be restored and indicator 1 will light up Heating power stage switch buttons Fig 10 O iiiiiiiiiiiiiin n iiiiiiiiiiiiiin n iiiiiiiiiiiiiiiiin n iiiiiiiiiiiiiiiiin n iiiiiiiiiiiiiin n iiiiiiiiiiiiiiiiin n iiiiiiiiiiiiiiiiin n iiiiiiiiiiiiiiiiin iiiiiiiiiiiiiiiiin n iiiiiiiiiiiiiiiiin n iiiiiiiiiiiiiiiiin iiiiiiiiiiiiiiiiin n iiiiiiiiiiiiiiiiin n for models for models SWH FS1 30V SWH FS3 30V SWH FS1 50V SWH FS3 50V SWH FS1 80V SWH FS3 80V SWH FS1 100V SWH FS3 100V Heating stage power iinniii II ilium Illium II mmmmmmi II in II mmmmmmi II mmmmmmi II mmmmmmi ilium Illium II mmmmmmi II mmmmmmi mmmmmmi II mmmmmmi II ilium Illium II I 800 W Power Proof power saving mode ONOTE if pressing test button 2 voltage is not cut off and or indicator 1 continues to be lighted it means that GFCI safety device is not operating properly if pressing restart button 3 voltage is not restored and or indicator 1 doesn t light up it means that the water heater is not operating properly In both cases disconnect the water heater and call the service center to reduce the risk of an electric shock do not disassemble remove or fill liquid in this appliance Рис 11 24 www timberk ru storage water heater Color and design of device panels can be revised without any pFit tr 1 stora9ewater heater 2S
