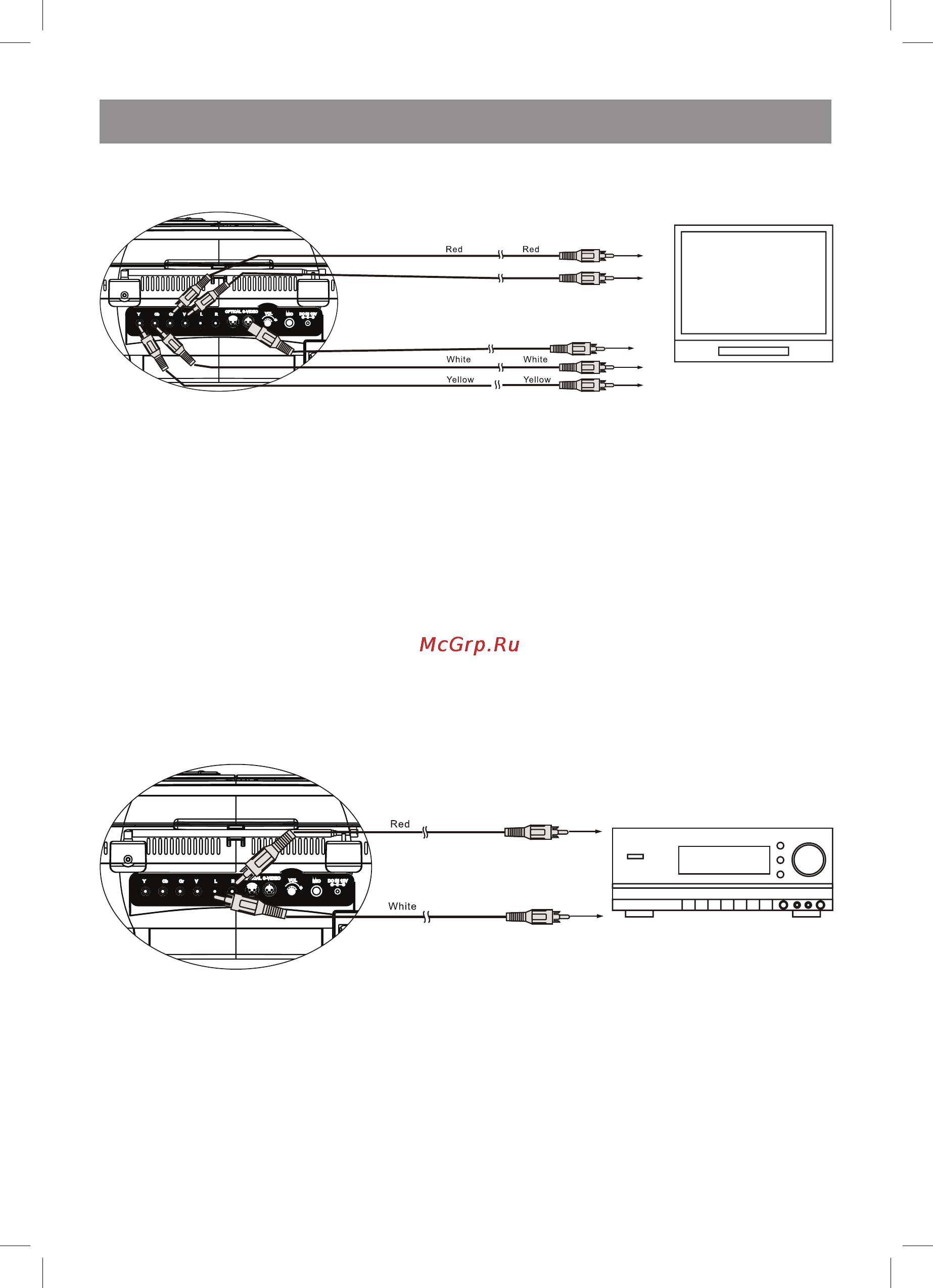

Connecting video cords

Select one of connection types listed below, which is the most appropriate for your TV-set.

() Composite video signal

To get standard picture quality connect composite video output (VIDEO) of your player with corre-

sponding input of TV-set or monitor using one audio-video cable (A/V) with yellow pins included into

delivery set.

(2) S-Video slot

To get high-quality picture connect S-VIDEO slot of your player with corresponding input of TV-set

or monitor using S-Video cable (not included into delivery set).

(3) Component video output

To get exact color rendering and highest picture quality connect component video outputs Y Cb Cr

(red/blue/green) with corresponding input slots of your TV-set or monitor using corresponding cord

(not included into delivery set).

Notes:

• You can get good picture only when connection is proper and system settings are correct.

Audio system connection

Select one of connection types listed below, which is the most appropriate for your audio system.

() Two-channel analog audio output

If you want using two channel analog audio output, connect RCH and LCH slots of your player with

corresponding slots of power amplifier (left channel should be connected with white slot, and right

channel should be connected with red slot).

(2) Coaxial digital audio output

Use special coaxial cable (not included into delivery set) to connect COAX slot of your player with

corresponding slot of power amplifier.

(3) Optical digital audio output

Use special optical fiber cable (not included into delivery set) to connect OPTICAL slot of your player

with corresponding slot of power amplifier.
