Maintenance > 142

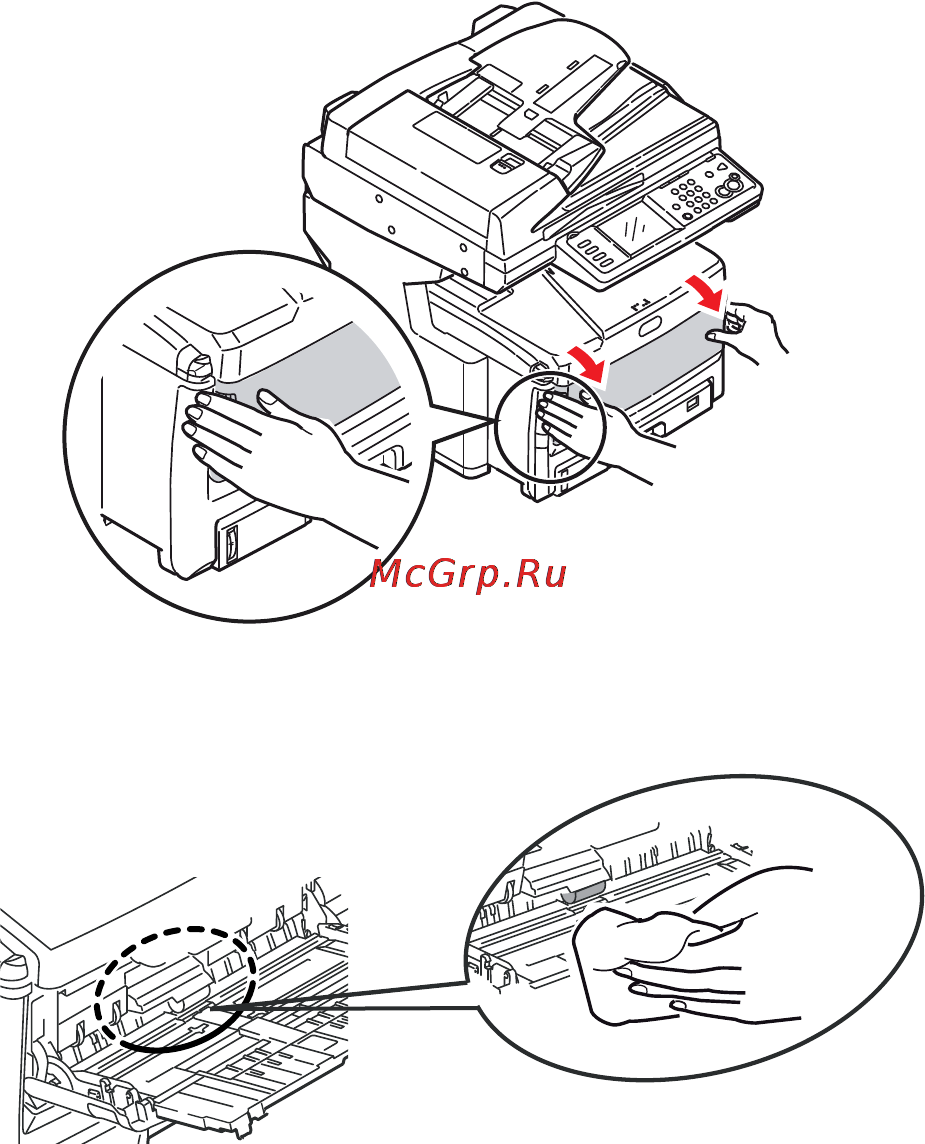

7. Open the multi purpose tray.
8. Wipe the feed roller on the multi purpose tray.
9. Close the multi purpose tray.
