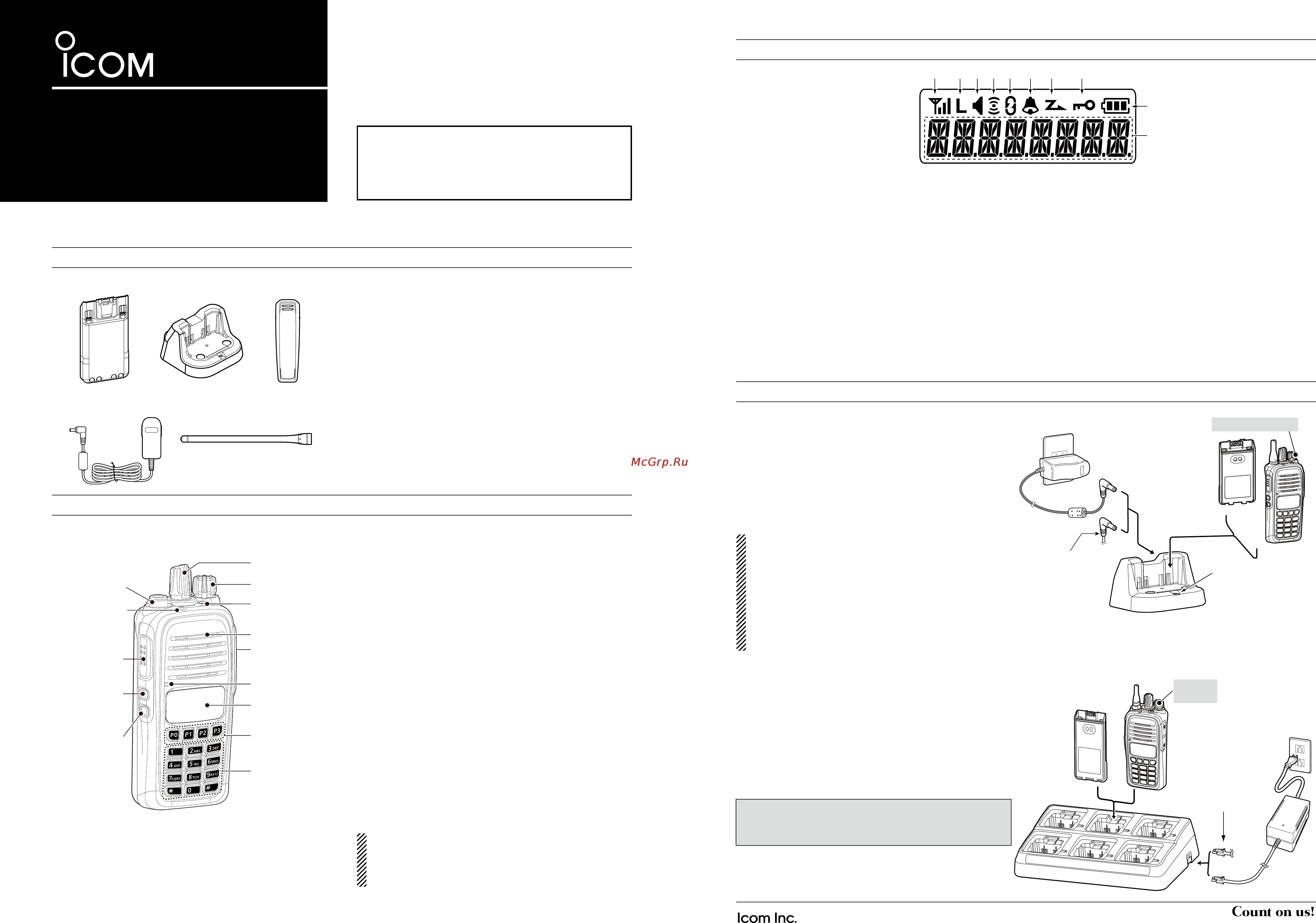

The illustration is for the 10-key type transceivers.

* Depending on the transceiver version

There are three types of transceivers in the IC-F1000

and IC-F2000 series.

IC-F1000/F2000: Non-Display Type

IC-F1000S/F2000S: Simple Type

[LCD + 4 keys (P0–P3)]

IC-F1000T/F2000T: 10-Key Type

[LCD + 4 keys + 10-Key Pad]

About the LED Indicator D

• Lights red while transmitting.

• Lights green while receiving a signal, or when the

squelch is open.

•

Lights or blinks orange when the matched 2-Tone or

5-Tone is received, depending on the presetting.

• You should charge the battery when the indicator

slowly blinks green.

• You must charge the battery when the indicator

blinks green fast.

About the Speaker microphone jack D

CAUTION:

Only when the jack cover

or the option-

al HM-168LWP is attached,

the transceiver meets

IP67 requirements for dust-tight and waterproof pro-

tection.

Thank you for purchasing the IC-F1000 series v h f

t r a n s c e i v e r s or IC-F2000 series u h f t r a n s c e i v -

e r s .

READ ALL INSTRUCTIONS carefully and com-

pletely before using the transceiver.

INSTRUCTIONS

Rapid charging the supplied BC-213 D

The BC-213 d e s k t o p c h a r g e r rapidly charges the Li-

ion battery pack.

The BC-213 is used with an AC adapter or the CP-23L

c i g a r e t t e l i g h t e r c a b l e (purchase separately).

Charging time of the BP-279•

Approximately 2 to 3 hours

CAUTION: STOP charging, if the charge indicator

lights orange and green alternately.

NOTE: Charge the battery within the speciﬁed tem-

perature range of +10°C to +40°C (+50°F to +104°F).

Otherwise, the charging time will be longer, but the

battery will not reach a full charge. While charging,

at a point after the temperature goes out of the spec-

iﬁed range, the charging will automatically stop.

BATTERY CHARGING

Battery

pack

Transceiver

Charge indicator

• Lights orange

while charging.

• Lights green when

charging is completed.

AC adapter

(A different type, or no

AC adapter is supplied,

depending on the trans-

ceiver version.)

BC-213

Tu rn OFF the Power

CP-23L

(for 12 V cigarette

lighter socket) can

be used instead of

the AC adapter.

[VOL]

[Emer]

Speaker

SPEAKER-

MICROPHONE

JACK

Microphone

FUNCTION DISPLAY

(LCD)*

[P0], [P1], [P2], [P3]*

(Dealer assignable)

10-KEY PAD*

[PTT]

LED INDICATOR

ANTENNA CONNECTOR

[UP]*

[Upper]*

(Dealer assignable)

[DOWN]*

[Lower]*

(Dealer assignable)

[ROTARY

SELECTOR]

PANEL DESCRIPTION

A-7122H-2EX-e Printed in Japan

1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan

yq iutrew

q SIGNAL STRENGTH INDICATOR

Displays the relative receive signal strength level.

w LOW POWER ICON

Appears when low output power is selected.

 •Whenthebatterychargedecreasestoasetlevel,low

power is automatically selected.

e AUDIBLE ICON

Appears when the channel is in the ‘audible’ (un- ➥

muted) mode.

Appears when a matched 2-Tone or 5-Tone is re- ➥

ceived.

r COMPANDER ICON

Appears when the Compander function is ON.

t SCRAMBLER ICON

Appears when the Voice Scrambler function is ON.

y BELL ICON

Appears or blinks when a matched 2-Tone or 5-Tone

is received, depending on the presetting.

u SCAN ICON

Appears or blinks while scanning.

i KEY LOCK ICON

Appears when the Key Lock function is ON.

o BATTERY INDICATOR

Displays the remaining battery charge.

Blinks when the battery charge decreases to a set

level.

! 0 ALPHANUMERIC READOUT

Displays messages such as channel text.

FUNCTION DISPLAY

SUPPLIED ACCESSORIES

q Battery pack (BP-279)

w Battery charger (BC-213)

e Belt clip (MB-133)

r AC adapter* (for the battery charger)

t Flexible antenna*

* Not supplied, or the shape is different, depending on

the transceiver version.

VHF TRANSCEIVERS

Iç-F2000 series

UHF TRANSCEIVERS

Iç-F1000 series

Rapid charging the BC-214 D

The BC-214 m u l t i c h a r g e r (purchase separately) can

simultaneously charge up to 6 Li-ion battery packs.

The BC-214 is used with BC-157S a c a d a p t e r (pur-

chase separately) or the OPC-656 d c p o w e r c a b l e

(purchase separately).

Charging time of the BP-279•

Approximately 2 to 3 hours

Transceiver

Tu rn OFF

the power

OPC-656

Connect to a DC

power supply:

12 to 16 V, at least 7 A

Red line: +

Black line: _

BC-214

BC-157S

Battery

pack

For more information about Icom accessories,

please read the “OPTIONS” printed on the reverse

side of this instruction sheet.
