BATTERY CHARGING

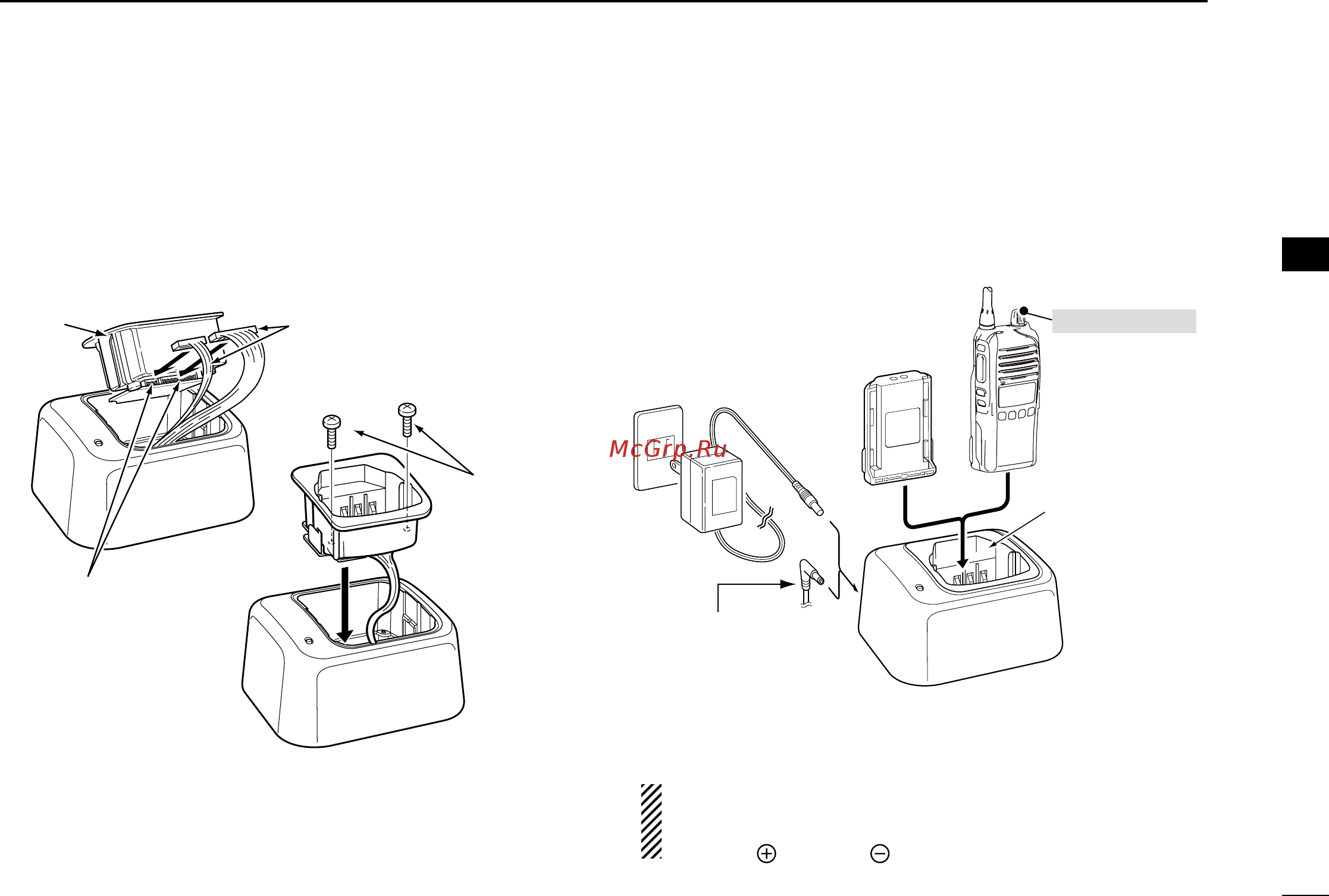

AD-106 installation D

The AD-106 c h a r g e r a d a p t e r must be installed into the BC-

119N or BC-121N before battery charging.

➥ Connect the AD-106

c h a r g e r a d a p t e r and the BC-119N/

BC-121N as below, then install the AD-106 into the hold-

er space of the BC-119N or BC-121N with the supplied

screws.

Screws supplied

with the charger

adapter

AD-106

Connectors

Plugs

* This illustration is described with the BC-119N.

Rapid charging with the BC-119N+AD-106 D

The optional BC-119N provides rapid charging of the Li-ion

battery pack. The following items are additionally required.

• AD-106 charger adapter

• An AC adapter (may be supplied with BC-119N depending on ver-

sion) or the DC power cable (OPC-515L/CP-23L).

AD-106 charger

adapter is installed

in BC-119N.

AC adapter

(Not supplied with

some versions.)

Optional OPC-515L

(for 13.8 V power

source) or CP-23L

(for 12 V cigarette

lighter socket) can

be used instead of

the AC adapter.

Transceiver

Battery

pack

Tu rn power OFF

CAUTION: NEVER connect the OPC-

515L to a power source using reverse

polarity. This will ruin the battery charger.

White line: Black line
