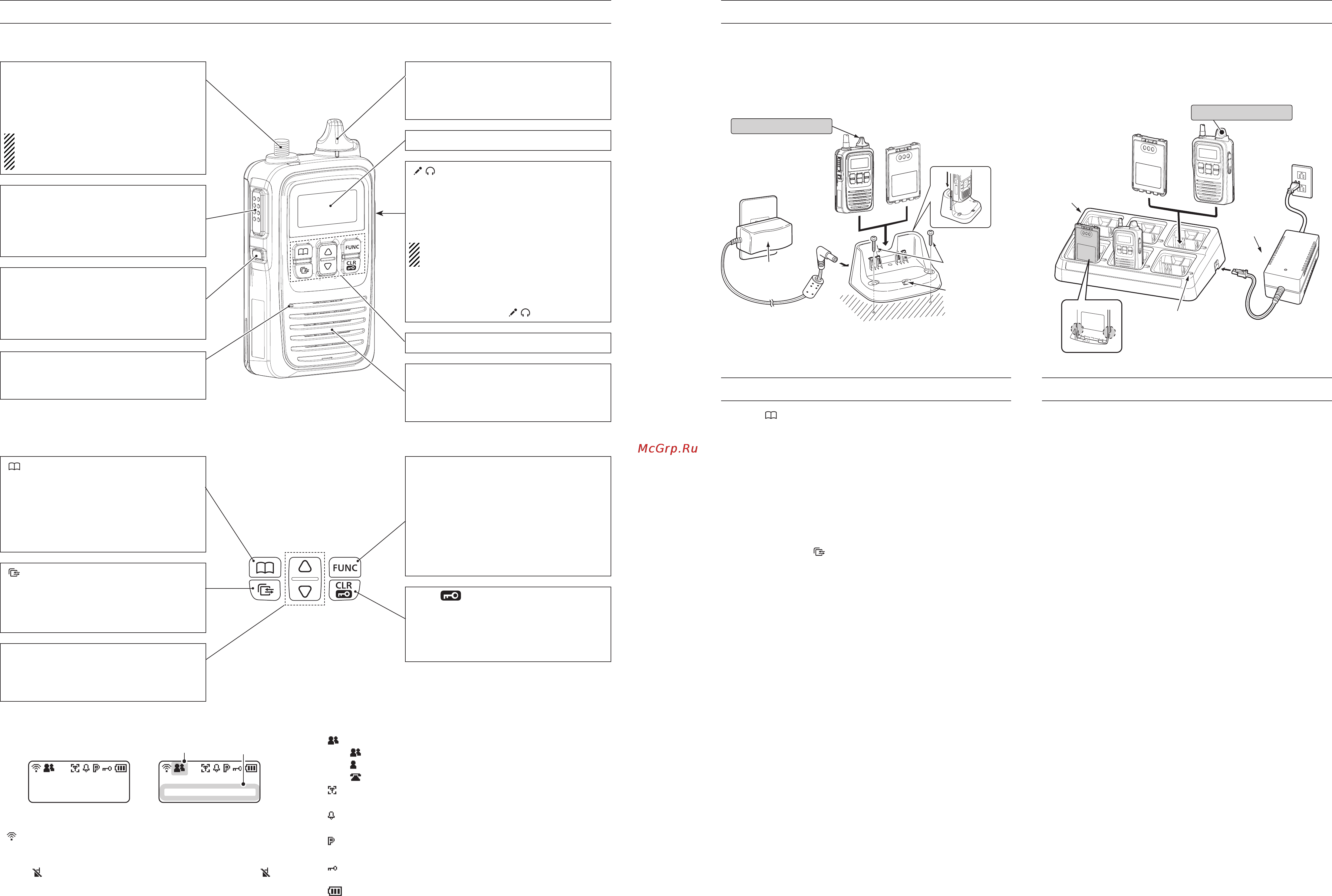

PANEL DESCRIPTIONS
Front and side panels D
[PWR/VOL] knob
Turns the communication terminal pow-
er ON or OFF and adjusts the audio out-
put level.
Function display
[ / ] jack
(External microphone/speaker jack)
Connect an optional speaker-micro-
phone or headset for hands-free, full-du-
plex operation.
CAUTION: Attach the jack cover when
optional equipment is not used.
Be sure to turn power OFF before con-
necting or disconnecting optional equip-
ment to or from the [
/ ] jack.
Function keys
Internal speaker
When an optional speaker-microphone
or headset is connected, the internal
speaker is disabled.
[ ] (Address) key
Repeatedly push to select an address
book from All, Group, Individual or Tele-
phone.
Selectable address book may differ depend-•
ing on the IP1000C settings.
Push [• J]/[K] to select a desired address.
[ ] (Call History) key
Repeatedly push to select call history
from the TX log, RX log, TX MSG log, RX
MSG log, TX TEL log or RX TEL log.
Push [• J]/[K] to select a desired log.
[J] (Up)/[K] (Down) keys
Push to select a desired address (ID),
log, message, status or the Area Call
function.
[FUNC] key
After a desired address is selected, re-
peatedly push to select a message, sta-
tus or the Area Call function select sta-
tus.
Selectable functions may differ, depending •
on the IP1000C settings.
Push [• J]/[K] to select a desired message,
status or the function setting.
[CLR• ](Clear•Lock)key
Push momentarily to select the stand-•
by screen.
Hold down for 1 second to turn the Key •
lock function ON or OFF.
Function keys D
Antenna connector
Attach the supplied antenna.
Or, attach the supplied antenna connec-
tor cap, if the internal antenna is used.
CAUTION: NEVER HOLD just the at-
tached antenna when carrying the
communication terminal.
[Option] key
Push to hang up an telephone call.
Or, push to select one of the often used
messages or IDs, depending on the set-
tings.
Internal microphone
When the VOX function is used, the in-
ternal microphone is disabled.
[PTT] switch
In the simplex mode, hold down to trans-
mit, and release to receive.
In the full-duplex mode, push to make a
call.
Using the BC-202 D
The BC-202 rapidly charges a battery pack.
Charging time: Approximately 2 hours for the BP-271
Approximately 3.5 hours for the BP-272
The following item is required.
•Apoweradapter(Adifferenttype,ornopoweradapterissupplied,
depending on the charger versions).
Desktop charger
BC-202
AC outlet
Charging
indicator
Battery pack
Communication
terminal
+ battery pack
Tapping screws
3.5×30 mm
Turn OFF the power
Power adapter
Using the BC-211 D
The BC-211 rapidly charges up to 6 battery packs.
Charging time: Approximately 2 hours for the BP-271
Approximately 3.5 hours for the BP-272
The following item is required.
•Apoweradapter(notsuppliedwithsomeversions).
AC outlet
Power adapter
(BC-157S)
Multi-Charger
BC-211
Charging indicator
(one for each slot)
Battery pack
Communication
terminal
+ battery pack
Turn OFF the power
BATTERY CHARGING
CALLING PROCEDURES
P u s h [ q ] one or more times to select a desired address
book.
Select “All” for all stations call, “Group” for group call, “Individu-•
al” for individual station call or “Telephone” for telephone call.
Selectable address book may differ according to the IP1000C's •
setting.
P u s h [ w J]/[K] one or more times to select a desired ID or
extension number.
Selectable ID or extension number may differ according to the •
IP1000C's setting.
You can select a desired ID or extension number from call his-•
tory by pushing [ ] for easy recalling.
If you want to send a message or status, or make an Area e
Call, push [FUNC] one or more times.
Select “Message” to transmit a message, “Status” to transmit a •
status, or “Area Call” for an Area Call.
When Area Call is selected, push [• J]/[K] to select ON.
Push [PTT] to make a call. r
Hold down [PTT], and speak at your normal voice level. t
Release [PTT] to listen. y
Repeat the steps u t and y until you finish your conver-
sation.
To hang up the telephone call, push [Option]. i
For your information
When the VOX function or full-duplex mode is set in the
IP1000C, the steps t and y are not necessary.
When the VOX function is set, speak into the headset micro-
phone to transmit, then stop speaking to listen.
In full-duplex, you can speak and hear the other person at
the same times.
OPTIONS
BP-271/BP-272 • Li-ion b a t t e r y p a c k s
BP-271: 7.4 V/1150 mAh (min.), 1200 mAh (typ.)
BP-272: 7.4 V/1880 mAh (min.), 2000 mAh (typ.)
BP-273 •
b a t t e r y c a s e
For LR6 (AA) × 3 alkaline batteries
BC-202 •
d e s k t o p c h a r g e r + BC-123S a c a d a p t e r
BC-211 • m u l t i -c h a r g e r + BC-157S a c a d a p t e r
MB-127 • b e l t c l i p
HM-153 • e a r p h o n e m i c r o p h o n e + OPC-2144 a d a p t e r c a b l e
HM-166 • e a r p h o n e m i c r o p h o n e + OPC-2144 a d a p t e r c a b l e
HM-153LS/HM-166LS • e a r p h o n e m i c r o p h o n e s
HM-186 • s p e a k e r -m i c r o p h o n e + OPC-2144 a d a p t e r c a b l e
HM-186LS • s p e a k e r -m i c r o p h o n e
For simplex operation
HS-85 •
v o x u n i t + OPC-2144 a d a p t e r c a b l e
HS-94/HS-95 • h e a d s e t s /HS-97 t h r o a t m i c r o p h o n e
+ OPC-2006LS a d a p t e r c a b l e /OPC-2328 p t t s w i t c h c a b l e
HS-94: Ear-hook type
HS-95: Neck-arm type
OPC-2006LS: For VOX operation
SP-13 •
e a r p h o n e + OPC-2144 a d a p t e r c a b l e
LC-181 • c a r r y i n g c a s e
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor-
porated (Japan) in Japan, the United States, the United Kingdom, Germany,
France, Spain, Russia and/or other countries.
All other products or brands are registered trademarks or trademarks of their
respective holders.
Morisawa font is used in this product.
Function display D
1/23 12:34
All
1/23 12:34
Back to office ASA
Blinks Scrolls
Standby screen When a message is received
• Signal strength indicator
Displays the signal strength in 3 levels when your communi-
cation terminal is in a service area.
“ ” blinks when you are out of the service area, and “ ” ap-
pears if your communication terminal is not registered, or not
connected to the IP1000C.
• Call mode icon
: Appears when All or Group call is selected.
: Appears when Individual call is selected.
: Appears when Telephone call is selected.
• Area Call function icon
Appears when the Area Call function is ON.
• Pocket beep function icon
Appears when the Pocket beep function is ON.
• P-Bell function icon
Appears when the P-Bell function is ON.
• Key lock function icon
Appears when the Key lock function is ON.
• Battery indicator
Displays the attached battery pack's remaining battery charges.
